YOKOGAWA DL9040L User Manual

Triggering
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index
6-5
IM 701310-01E
Explanation

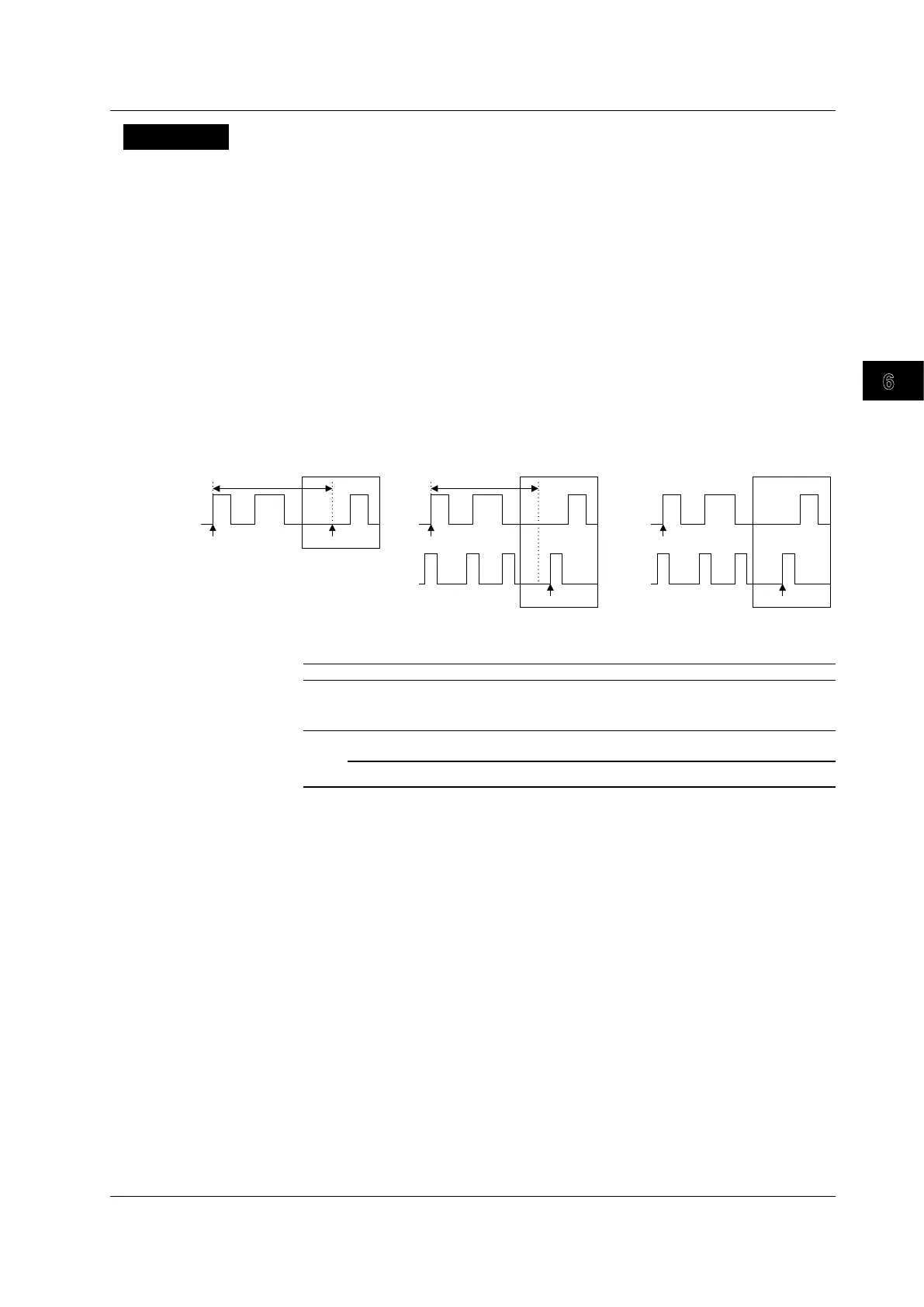

Normally, the DL9000 displays the waveform before and after the trigger point. If you
want to monitor the waveform the specified time after the trigger point, you can set a
trigger delay (delay time).
Delay Type
The following three delay types are available.
• By time
The specified amount of delay is inserted after the trigger occurrence.
• First edge after delay
A delay is inserted until the first specified edge after the specified time of trigger
occurrence.
• Edge Count
A
delay is inserted the specified number of edges after the trigger occurrence.
Delay time
Trigger point Trigger position
Delay time
Trigger point Trigger point
3 2 1
Trigger position Trigger position
CH1 CH1
CH2
CH1
CH2
By time
First edge after delay
Edge Count
(Example when the trigger edge
count is set to 3)
Selectable Delay Time Range
Delay Type Selectable Range Resolution
By time 0 to 10 s 5 ps
First edge after delay 0 to 10 s 2 ns
Edge Count 1 to 10
9
1 step
Note
Even if you change the T/div setting, the delay time before the change is retained.
6.3 Setting the Trigger Delay
