6-43
IM 701310-01E

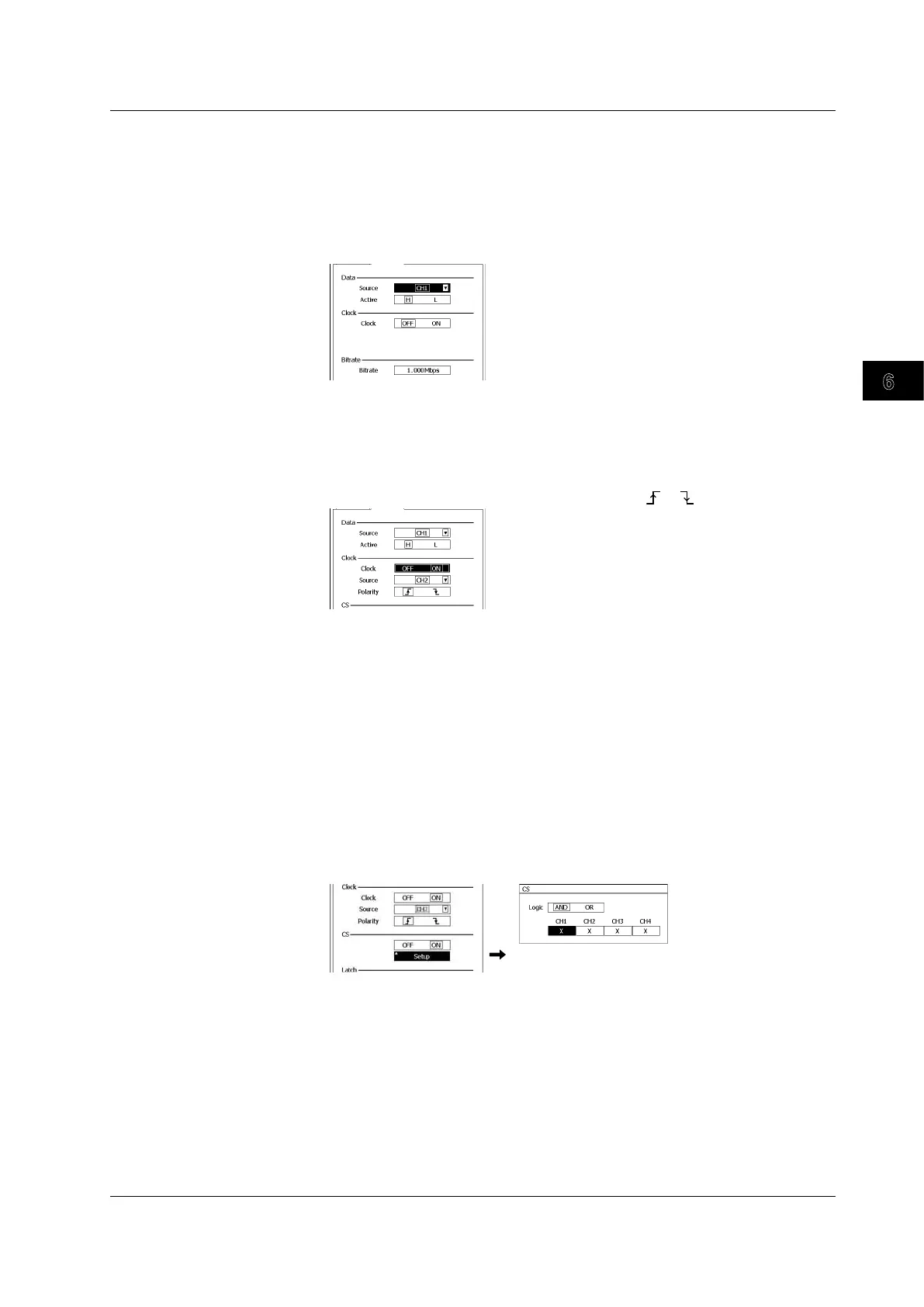

Setting the Clock Source
9.
Use the rotary knob and SET to set the clock to ON or OFF.
• If you select ON, proceed to step 11.
• If you select OFF, set the bit rate.
• Setting the Bit Rate
10.
Use the rotary knob and SET to select the bit rate from 1kbps to 50Mbps.
Proceed to step 20 on page 6-44.
• Setting the Clock Source
11.
Use the rotary knob and SET to select the clock source.
Select the source from CH1 to CH4.
12.
Use the rotary knob and SET to set the polarity to or .
Setting the CS
13.
Use the rotary knob and SET to set the CS to ON or OFF.
• If you select ON, set the CS state condition.
• If you select OFF, proceed to step 18 on page 6-44.
• Setting the State Condition
14.
Use the rotary knob and SET to select Setup under CS.
The CS dialog box appears.
15.
Use the rotary knob and SET to set the logic to AND or OR.
16.
Use the rotary knob and SET to set the state condition to compare with.
Set each signal state to H, L, or X. When you are done setting the states, press
ESC
to
return to the previous screen.
6.14 Triggering on a Serial Pattern Signal
To Next Page
