6-44
IM 701310-01E

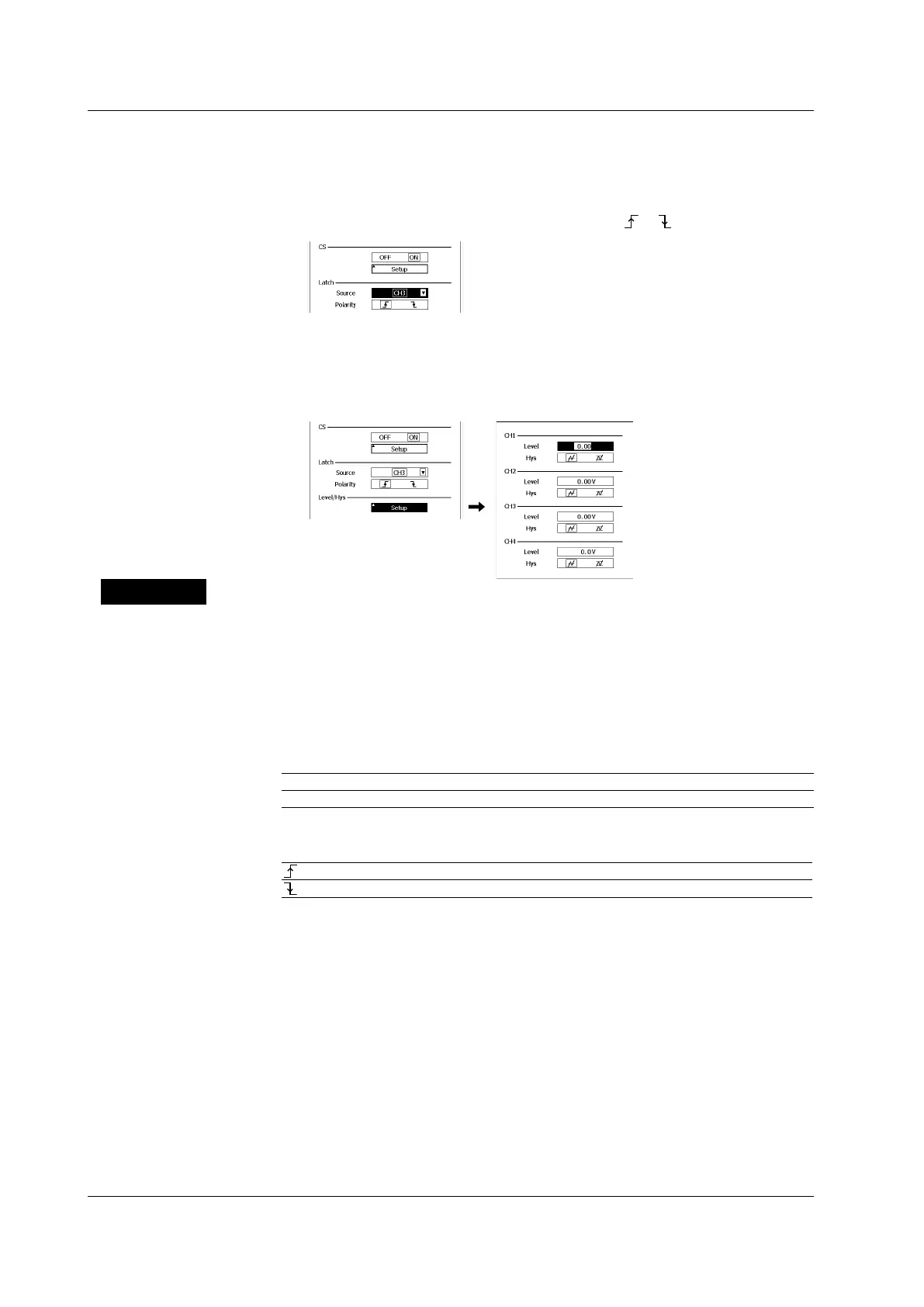

Setting the Latch Source
17.
Use the rotary knob and SET to select Source under Latch.
• Select the source from CH1 to CH4 and X.
• If you select X, proceed to step 20.
18.
Use the rotary knob and SET to set the polarity to or .
Setting the Trigger Level and Hysteresis
19.
Use the rotary knob and SET to select Setup under Level/Hys.
The Level/Hys dialog box appears.
20.
Use the rotary knob and SET to set the level and hysteresis for each source.
Explanation
This function triggers on serial pattern signals.
Data, Clock, CS, and Latch Sources
You can select the data, clock, CS, and latch sources from CH1 to CH4.
Clock
• Clock ON/OFF
You can select whether or not to sample the data source in sync with the selected
clock source.
ON Samples in sync with the clock source.
OFF Does not synchronize to the clock source.
• Sampling Timing
You can select the clock edge that specifies when the data patterns are sampled.
On the rising edge
On the falling edge
Data Pattern
You can use a data pattern as a trigger condition. The data pattern trigger condition is
met when the specified pattern matches the sampled data source pattern.
• Y
ou can set a pattern consisting of up to 128 bits. Set the pattern in hexadecimal or
binary notation.
• If you specify X, the condition is assumed to be met regardles
s of the corresponding
bit status.
• If a binary pattern contains any Xs, the corresponding hexade
cimal display will be “$.”
6.14 Triggering on a Serial Pattern Signal
