6-49
IM 701310-01E

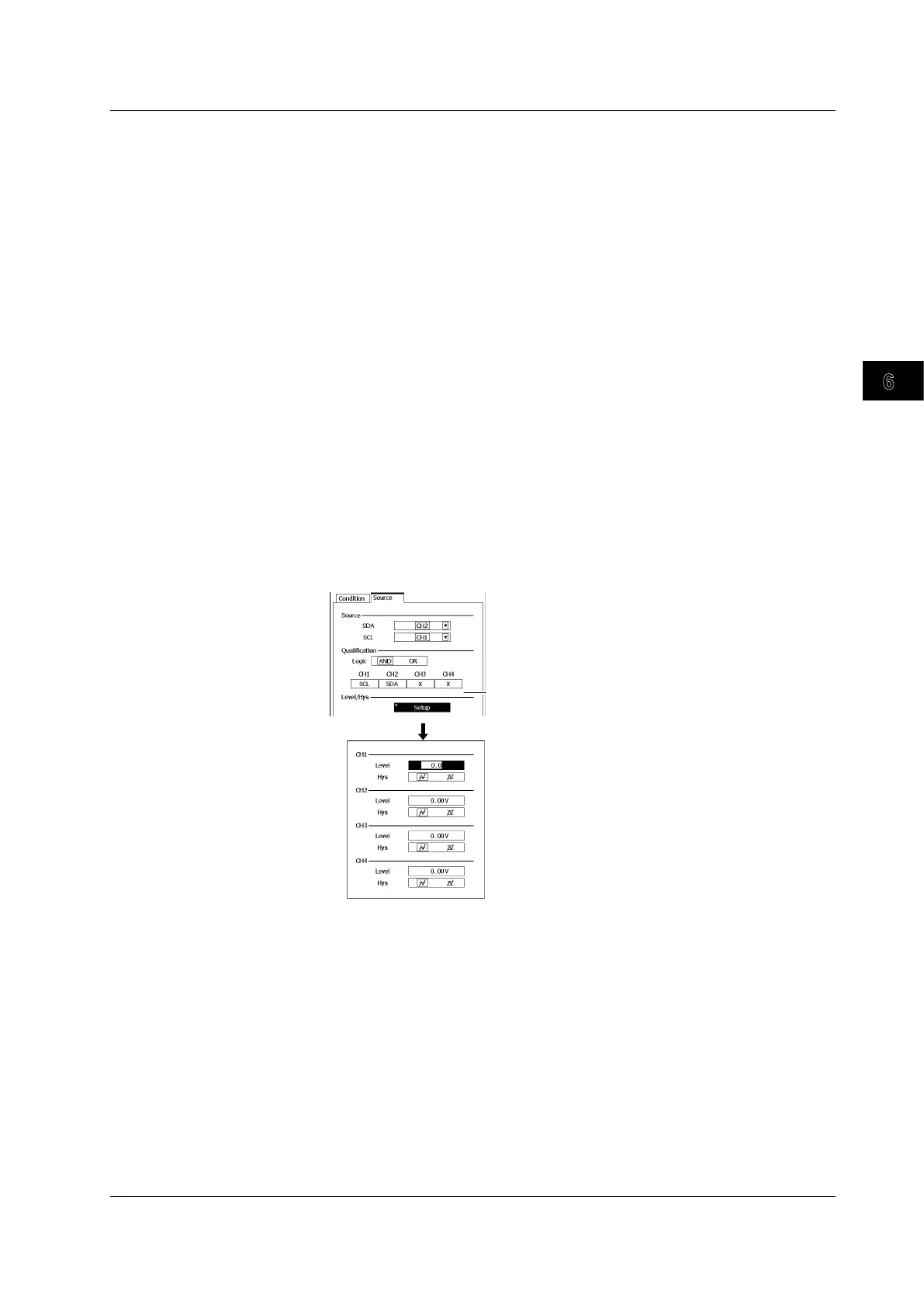

Setting the SDA, SCL, and Qualification
10.
Use the rotary knob and SET to select the Source tab.
You can also press the Source soft key to select the tab.
Setting the SDA Source
11.
Use the rotary knob and SET to select the SDA (serial data) source.
Select the source from CH1 to CH4.
Setting the SCL Source
12.
Use the rotary knob and SET to select the SCL (serial clock) source.
Select the source from CH1 to CH4.
Setting the Qualification
13.
Use the rotary knob and SET to set the logic to AND or OR.
14.
Use the rotary knob and SET to set the state of signals other than those selected
for the SDA and SCL to H, L, or X.
Setting the Trigger Level and Hysteresis
15.
Use the rotary knob and SET to select Setup under Level/Hys.
The Level/Hys dialog box appears.
16.
Use the rotary knob and SET to set the level and hysteresis for each source.
You can select the status of
the CH1 to CH4 signals
except for the channels
selected for SDA and SCL.
6.15 Triggering on an I
2
C Bus Signal
To Next Page
