YOKOGAWA DL9040L User Manual

7-46
IM 701310-01E
Selecting a GO/NO-GO Determination Condition
10.

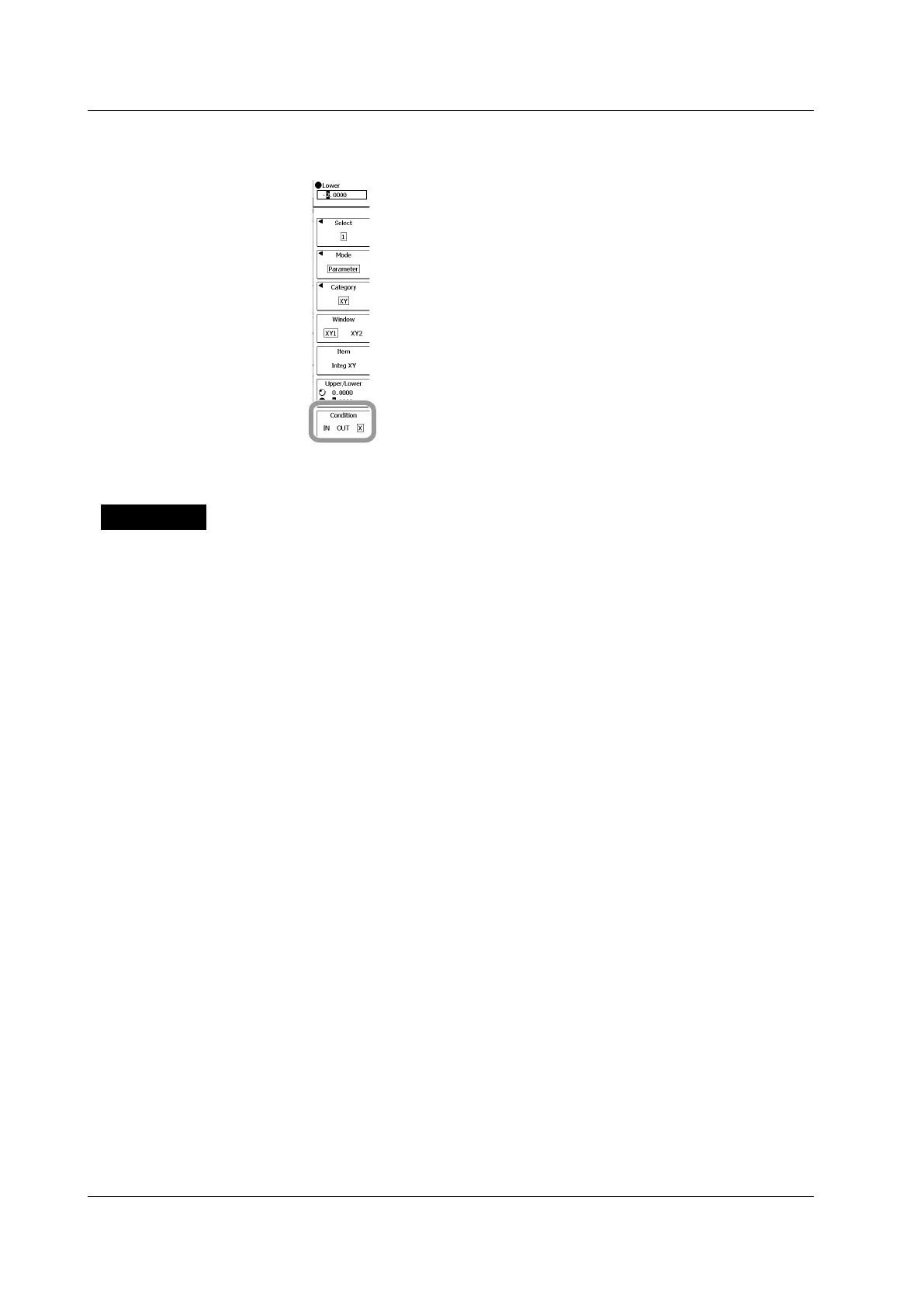

Press the Condition soft key to select IN, OUT, or X.
Repeat steps 3 to 10 for GO/NO-GO conditions 1 to 4 as necessary.
Explanation
The DL9000 returns GO/NO-GO results depending on whether or not the computed
values of the XY waveform area are within the range that you set.
GO/NO-GO Condition Number
You can choose to configure a GO/NO-GO condition from 1 to 4.
Source Window
You can set the source analysis window to XY1 (the area of the XY waveform of
Window1) or XY2 (the area of the XY waveform of Window2).
GO/NO-GO Determination Range
You set the range by specifying its maximum and minimum values.
GO/NO-GO Determination Condition
• IN: The DL9000 returns a no-go result when the value of the XY waveform’s area is in
the set range.
• OUT
: The DL9000 returns a no-go result when the value of the XY waveform’s area is
outside of the set range.
• X: GO/NO-GO determination does not take place.
7.15 Setting X-Y Waveform Parameter GO/NO-GO Determination Conditions
