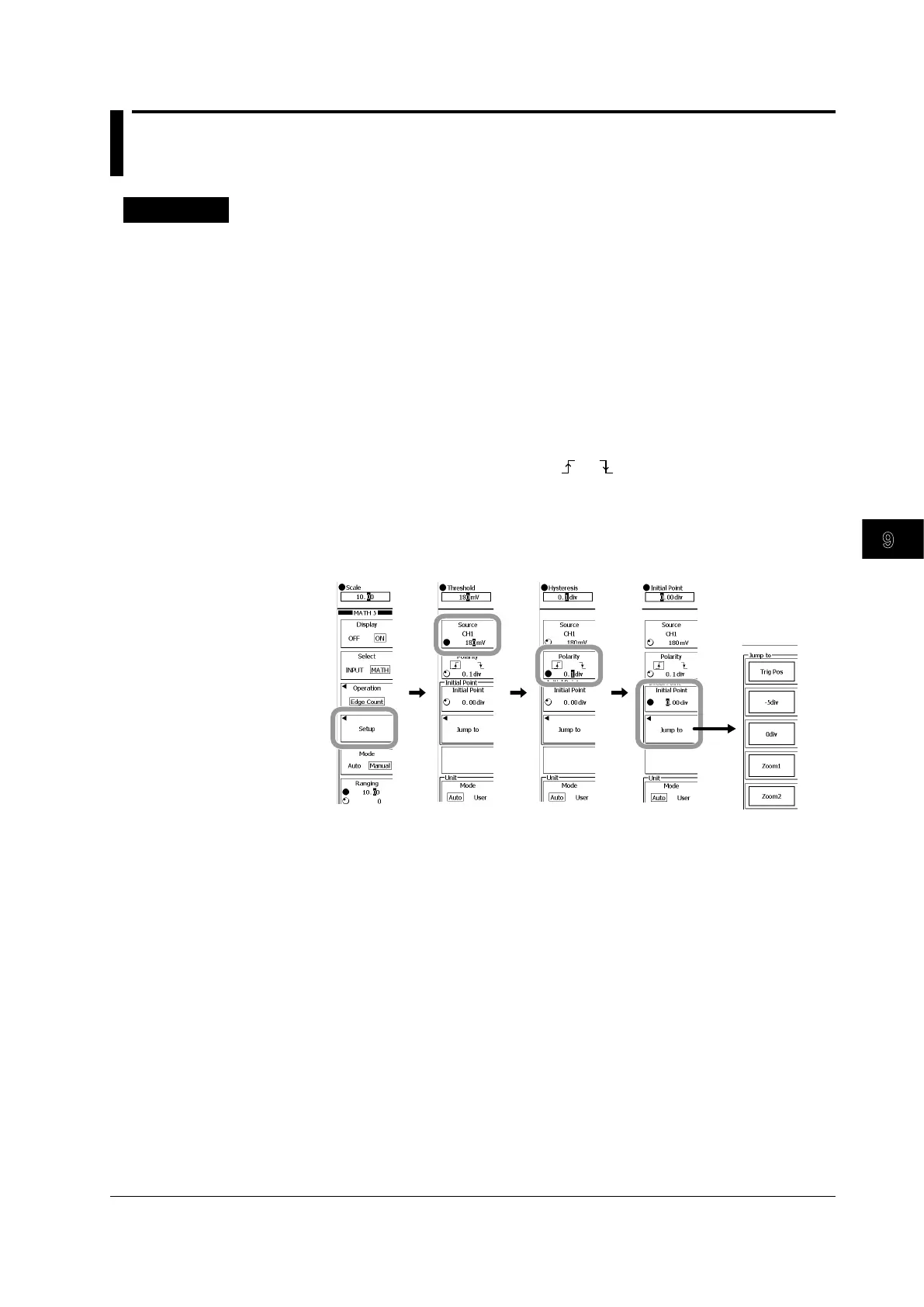

9.8 Counting Edges
Procedure
1.
Carry out steps 1 to 5 in section 9.1 to set the operator to Edge Count.
Setting the Count Conditions
2.
Press the Setup soft key.
3.
Press the Source soft key. A menu used to select the waveform to be computed
appears. Press the soft key corresponding to the source waveform.
To select REF1 to REF4, first switch to REF1-REF4 by pressing the corresponding soft key.
When CH1 to CH4 on the front panel are set, the waveform to be computed is fixed to the
channel that is set. A menu used to select the waveform to be computed don’t appears.
4.
Use the rotary knob to set the threshold level for detecting edges.
5.
Press the Polarity soft key to select or .
6.
Use the rotary knob to set the hysteresis.
7.
Press the Initial Point soft key.
8.
Use the rotary knob to set the count start point. Or, press the Jump to soft key
to show a preset menu, and set the count start point.
Preset
menu
Setting the Unit and Display Range
Carry out steps 6 to 13 in section 9.1.
