Configuring Statistical Processing on History Data
1.
PARAM.
2.

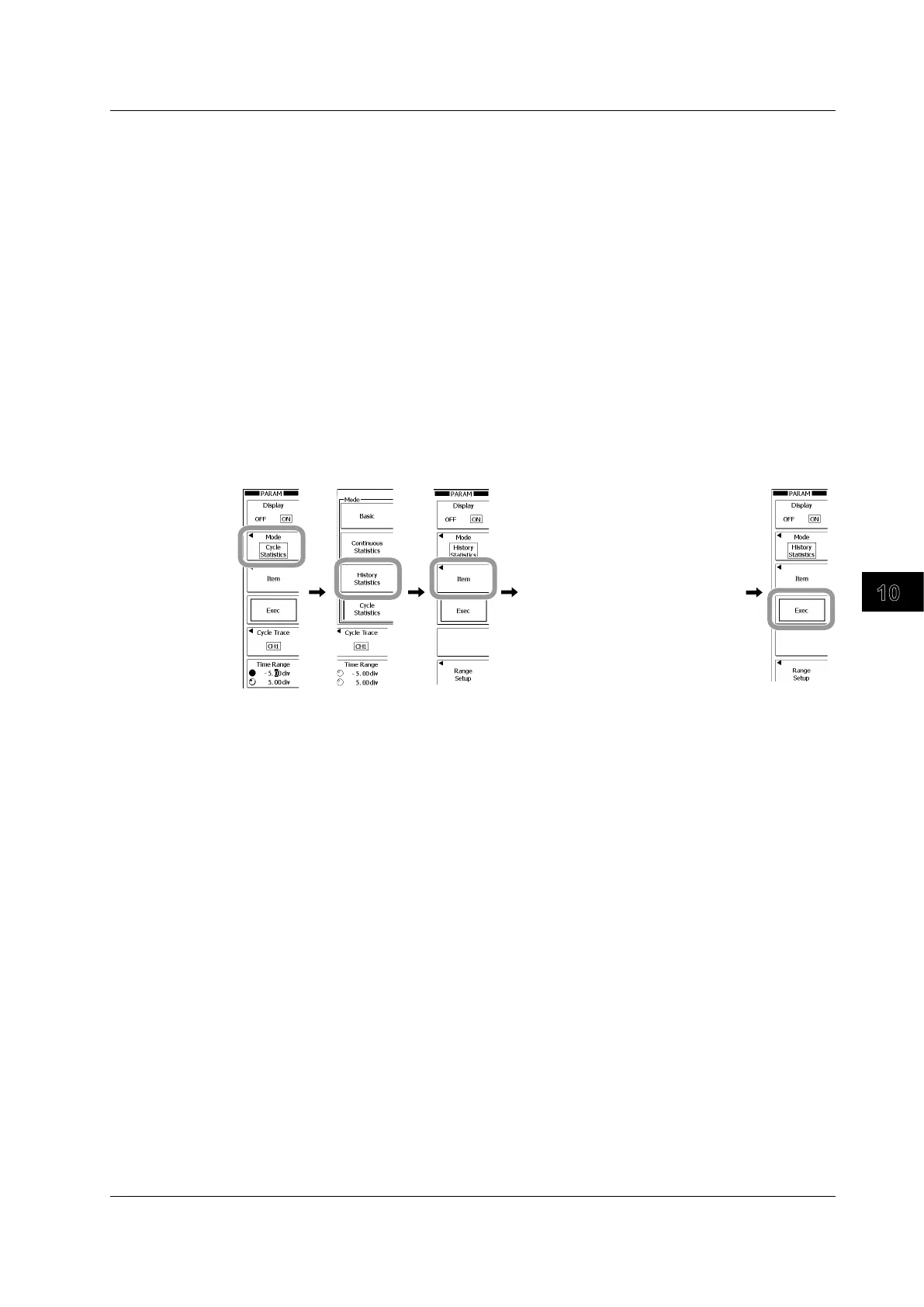

Press these soft keys: Mode > History Statistics > Item.
3.
Set the measurement items according to steps 4 to 24 in section 10.2.
4.
Press ESC to return to the PARAM menu.
The procedure to set other items are the same as with automated measurement of
waveform parameters (see the procedure from step 10 in section 10.2 for details).
However, the time range menu described in steps 31 to 35 in section 10.2 will be different. Press
the Range Setup soft key, and then set the time range of Area1 and Area2.
Executing Statistical Processing
5.
Press the EXEC soft key.
Statistical processing is executed.
The Exec soft key changes to the Abort soft key. To abort measurement and statistical
processing, press the
Abort
soft key. Measurement and statistical processing are aborted,
and the Abort soft key changes to the EXEC soft key.
• Set the measurement items
according to steps 4 to 24 in section
10.2 that describes the automated
measurement of waveform
parameters.
• Press ESC to return to the PARAM
menu.
10.3 Calculating Statistics on the Measured Waveform Parameter Values
