10-54
IM 701310-01E

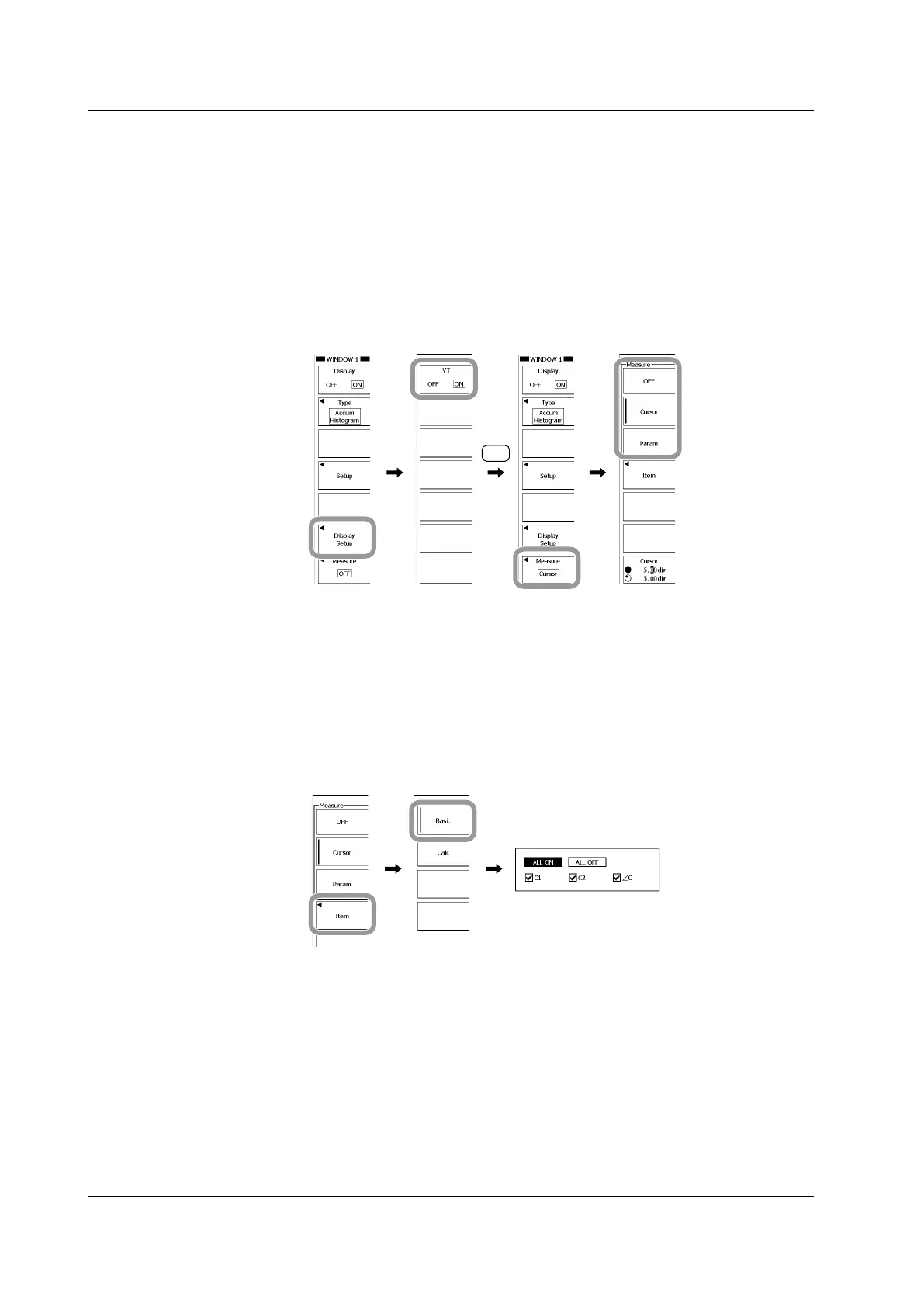

Turning the T-Y Waveform Display ON and OFF and Selecting the Analysis
Function
12.
Press the Display Setup soft key.
13.
Press the VT soft key to select ON or OFF.
14.
Press ESC.
15.
Press the Measure soft key.
16.
Press a soft key from OFF to Param to select the analysis function.
If you select OFF, you are done with the settings.
If you select Cursor, proceed to step 17.
If you select Param, proceed to step 28.
Analyzing by Using Cursors
17.
Press the Item soft key.
• Selecting Basic Analysis Items
18.
Press the Basic soft key.
19.
Use the rotary knob and SET to select the items you want to analyze.
• If you select ALL ON and press
SET
, you can turn ON all items at once.
• If you select ALL OFF and press
SET
, you can turn OFF all items at once.
10.9 Displaying the Frequency Distribution of a Specified Area (Accum Histogram)
To Next Page
