Analyzing by Using Parameters
28.

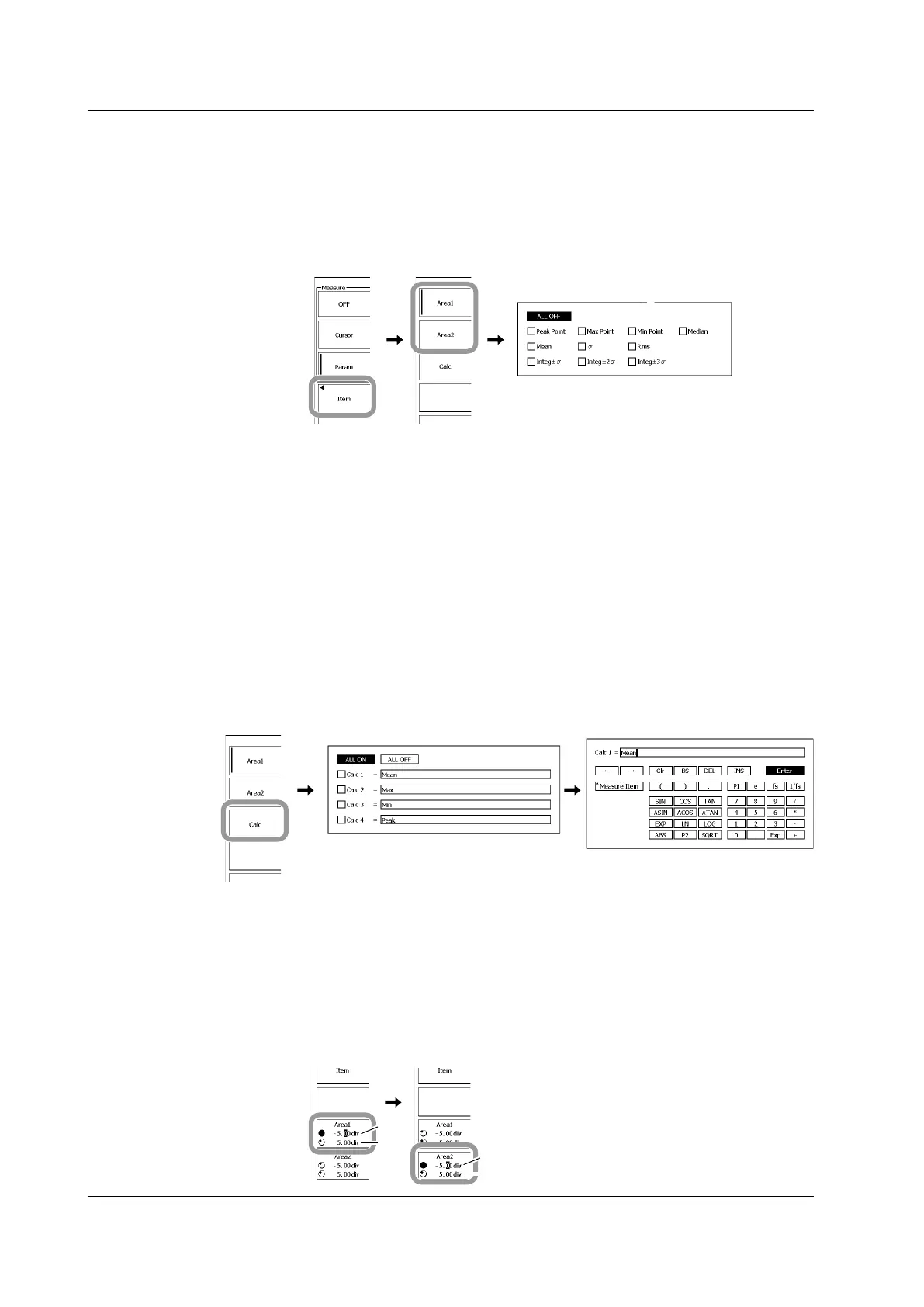

Press the Item soft key.
• Selecting Parameters
29.
Press the Area1 or Area2 soft key to select the area in which to set parameters.
30.
Use the rotary knob and SET to select parameters.
If you select ALL OFF and press SET, you can turn OFF all items at once.
• Setting a Calculation
31.
Press the Calc soft key.
32.
Use the rotary knob and SET to select the calculation number from Calc 1 to
Calc 4.
33.
Use the rotary knob and SET to select the expression box to the right of the
selected number.
The dialog box for entering the expression appears.
34.
Use the rotary knob and SET to select functions and operators.
You can enter numbers using the numeric keys.
35.
When you are done entering the expression, press the Enter soft key. To cancel
the entered expression, press ESC.
The dialog box closes, and the screen for selecting the calculation number reappears.
36.
Press ESC to return to the previous screen.
• Defining an Area
37.
Press the Area1 soft key.
38.
Use the rotary knob to set the Area1 range (T1 and T2).
Press the soft key to select the setting that you want to set using the rotary knob.
39.
Press the Area2 soft key.
40.
Use the rotary knob to set the Area2 range (T1 and T2).
Press the soft key to select the setting that you want to set using the rotary knob.
T1
T2
T1
T2
