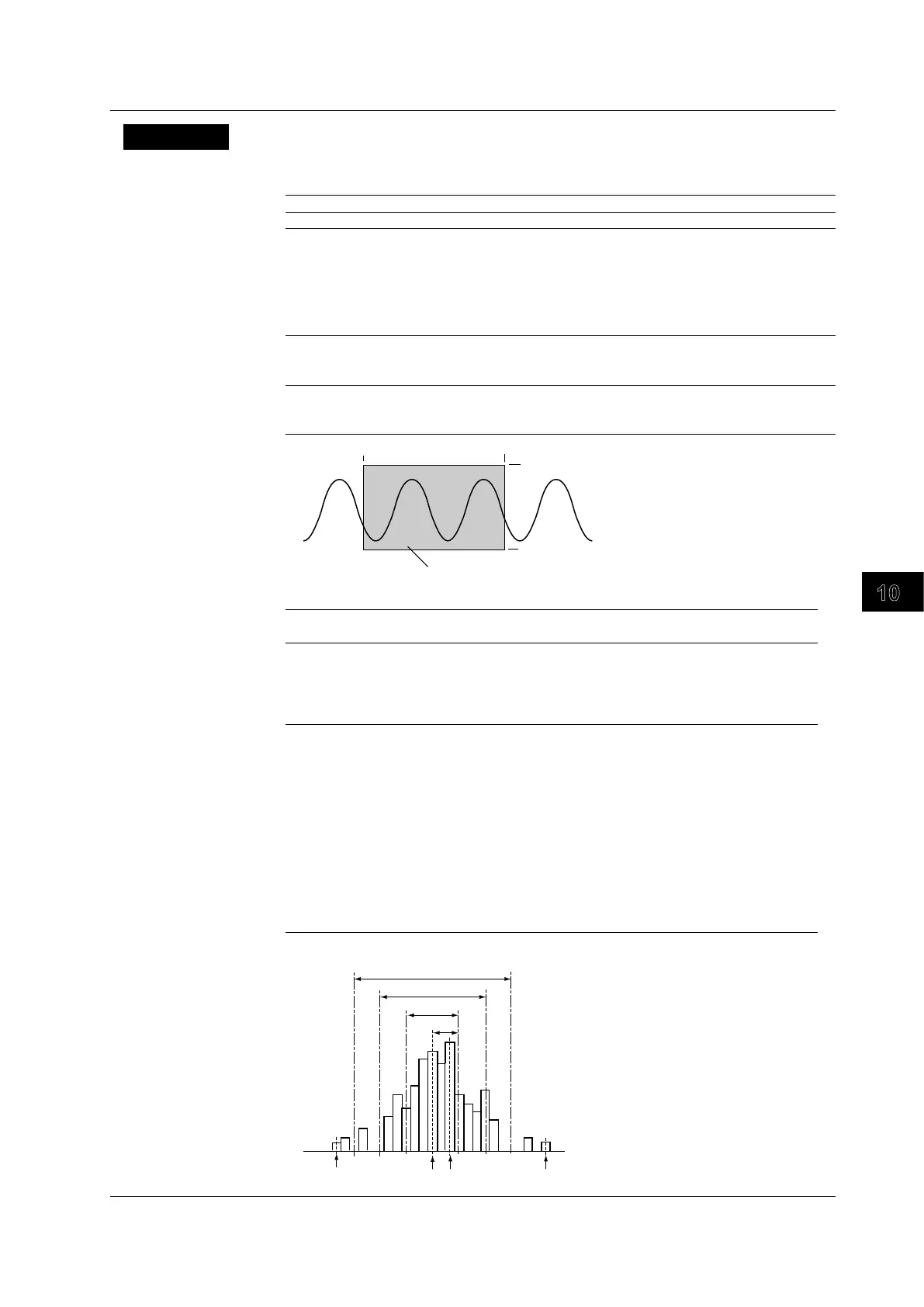

YOKOGAWA DL9040L User Manual

10-57
IM 701310-01E
Analysis and Search
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index
Explanation
Axis
Select the histogram axis.
V Vertical Axis
H Horizontal Axis
Display Source Waveform
Select the waveform from CH1 to CH4 or from M1 to M4.
Source Window
You can set the source window to Main, Zoom1, or Zoom2.
Upper/Lower
Set the horizontal axis range for the box used to specify the range to generate the histogram of.
The selectable range is �4 divisions.
Left/Right
Set the vertical axis range for the box used to specify the range to create the histogram of. The
selectable range is �4 divisions.
Upper
Lower
Right
Left
Displays a histogram for this range.
Analysis Function
OFF
Disables the analysis function.
Cursor
When the mode is H, you move the two vertical cursors to measure the vertical values at the
cursors.
When the mode is V, you move the two horizontal cursors to measure the horizontal values at
the cursors.
Param
You can select parameters.
Peak Point Peak value
Max Point Maximum value
Min Point Minimum value
Median Median*
Mean Mean value
σ
Standard deviation of the histogram
Rms
Integ�
σ
The percentage of measured values that fall within �
σ
Integ�2
σ
The percentage of measured values that fall within �2
σ
Integ�3
σ
The percentage of measured values that fall within �3
σ
* The value at the halfway point when the samples are arranged in ascending order.
S
pS
p
3
S
PeakMean
p
2
S
Max
Min
10.9 Displaying the Frequency Distribution of a Specified Area (Accum Histogram)
