Displaying and Searching History Waveforms
11-7
IM 701310-01E
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

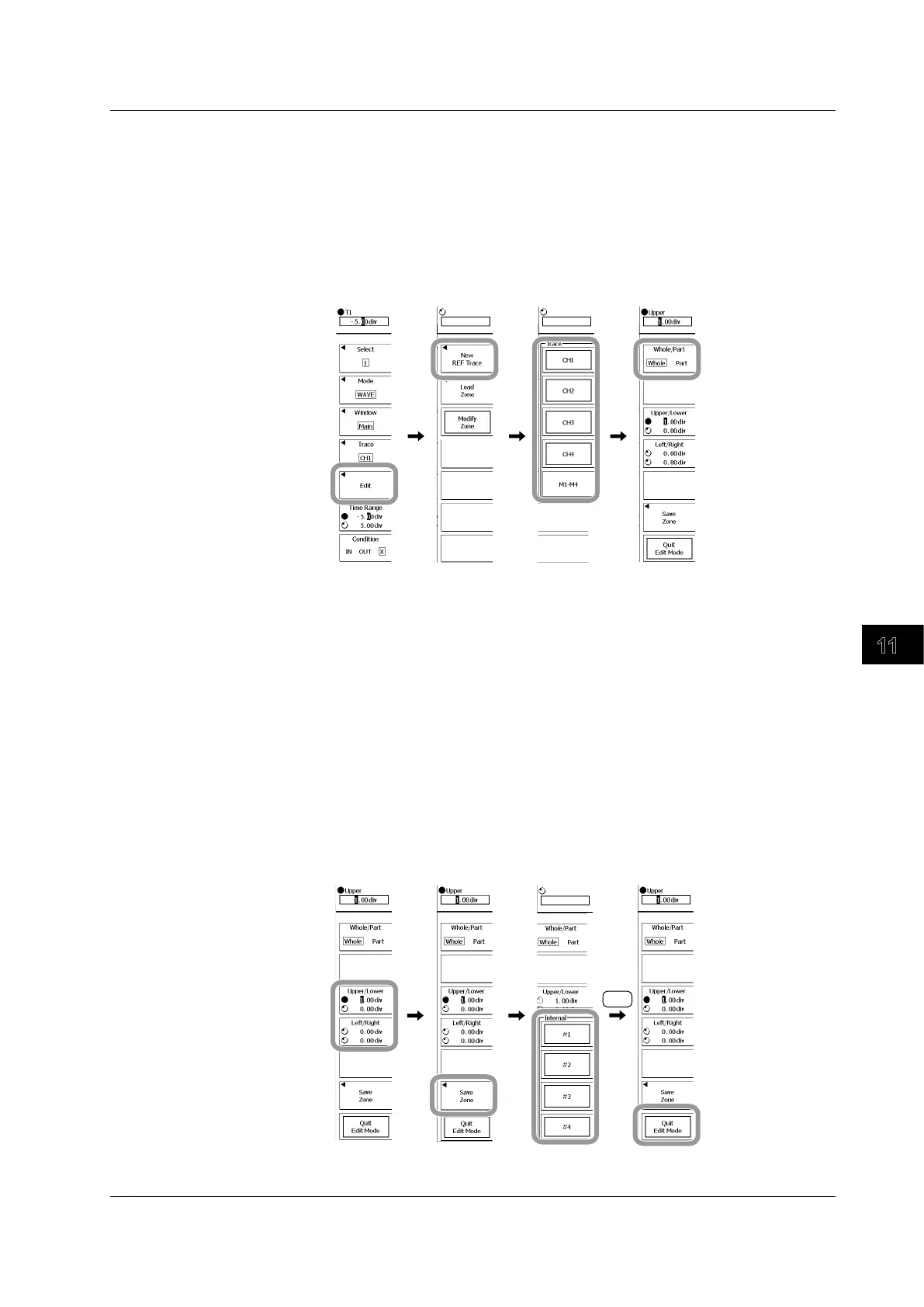

Creating a New Search Zone
12.
Press these soft keys: Edit > New REF Trace.
13.
Press the soft key that corresponds to the channel that contains the waveform
that will be used to create the zone.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
14.
Press the Whole/Part soft key to select the type of zone you want to create.
• To create a whole zone, select Whole, and then proceed to step 15.
• To create a partial zone, select Part, and then proceed to step 23.
• Editing a Whole Zone
15.
Press the Upper/Lower soft key or the Left/Right soft key to select the direction
of the zone that you will set.
16.
Use the rotary knob to set the boundaries of the zone.
17.
Repeat steps 15 and 16 to edit the zone.
18.
Press the Save Zone soft key to open the menu for selecting the save destination
for the edited zone.
19.
Press the soft key that corresponds to the appropriate save destination number (1
to 4).
20.
Press ESC to return to the previous screen.
To edit a partial zone, proceed to step 22.
21.
Press the Quit Edit Mode soft key to leave editing mode.
When you have finished editing zones, proceed to step 36.
ESC
11.2 Searching History Waveforms Using Waveform Zones (Wave History Search)
