6 - 6 TC70x Integrator Guide

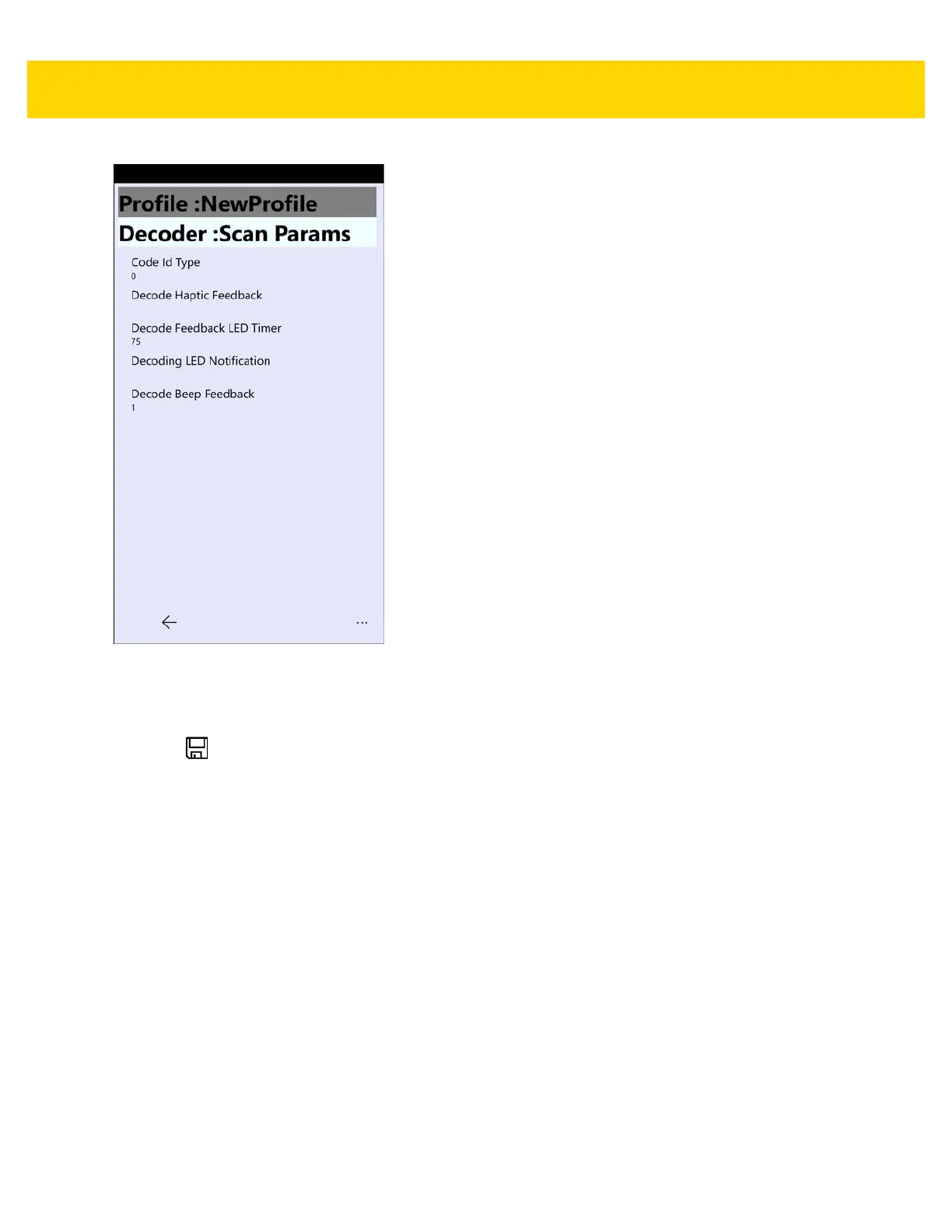

Figure 6-6 Scan Parameters
9. Select all the parameters for this profile and configure. See Scan Params on page 6-13 for detailed information
on each parameter.
10. Touch to save the profile information. A profile file is created in the Documents folder.
The scanner driver is updated.
Using a Profile
To use the profile, the application has to call SetActiveProfile with newly created profile name as a parameter.
In an application, if the user selects the supported profiles, the newly added profile displays along with the list of
default profiles.
Deleting a Profile
To delete a profile:
1. Touch and hold on the profile name until a menu appears.
2. Touch Remove.
The profile is remove from the device and from the scanner driver.

Zebra TC70x Specifications

General

Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Display diagonal	4.7 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Number of cores	6
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Product color	Black
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Rear camera resolution (numeric)	13 MP
Speakers	Mono

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
