Zebra TC70x - Inserting the Device into the Trigger Handle

Accessories 2 - 37
8. Insert the battery, bottom first, into the battery compartment in the back of the device.
9. Rotate the top of the battery into the battery compartment.
10. Press the battery down into the battery compartment until the battery release latches snap into place.
Inserting the Device into the Trigger Handle
1. Align the back of the Trigger handle with the Trigger Mounting Plate.

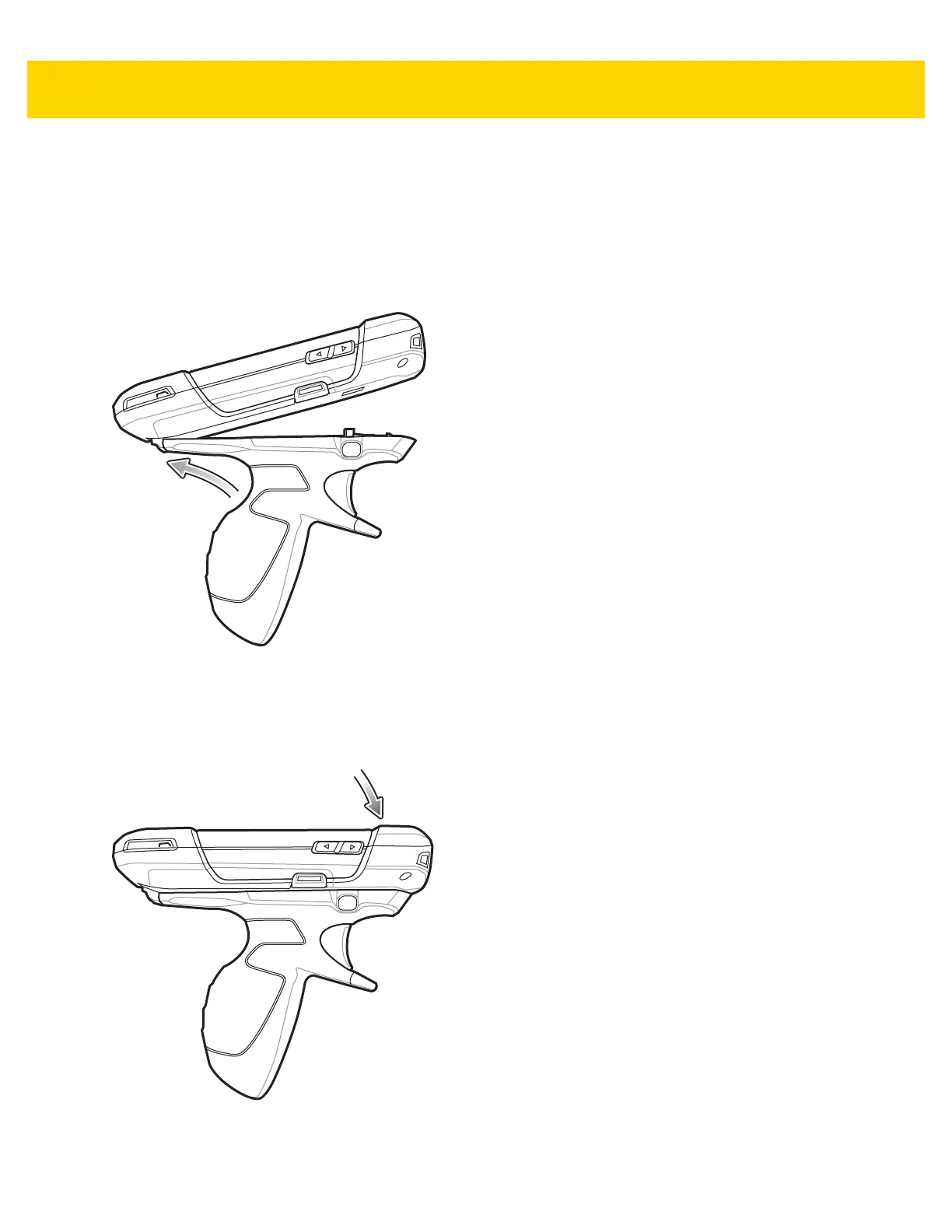

Figure 2-44 Connect Device to Trigger Handle
2. Press the two release latches.
3. Rotate the device down and press down until it snaps into place.
Figure 2-45 Rotate Device onto Trigger Handle
