2 - 44 TC70x Integrator Guide
4. Fasten the mounting plate using four M3 screws (provided).
5. Align the mounting plate screws with the screw holes in the surface.

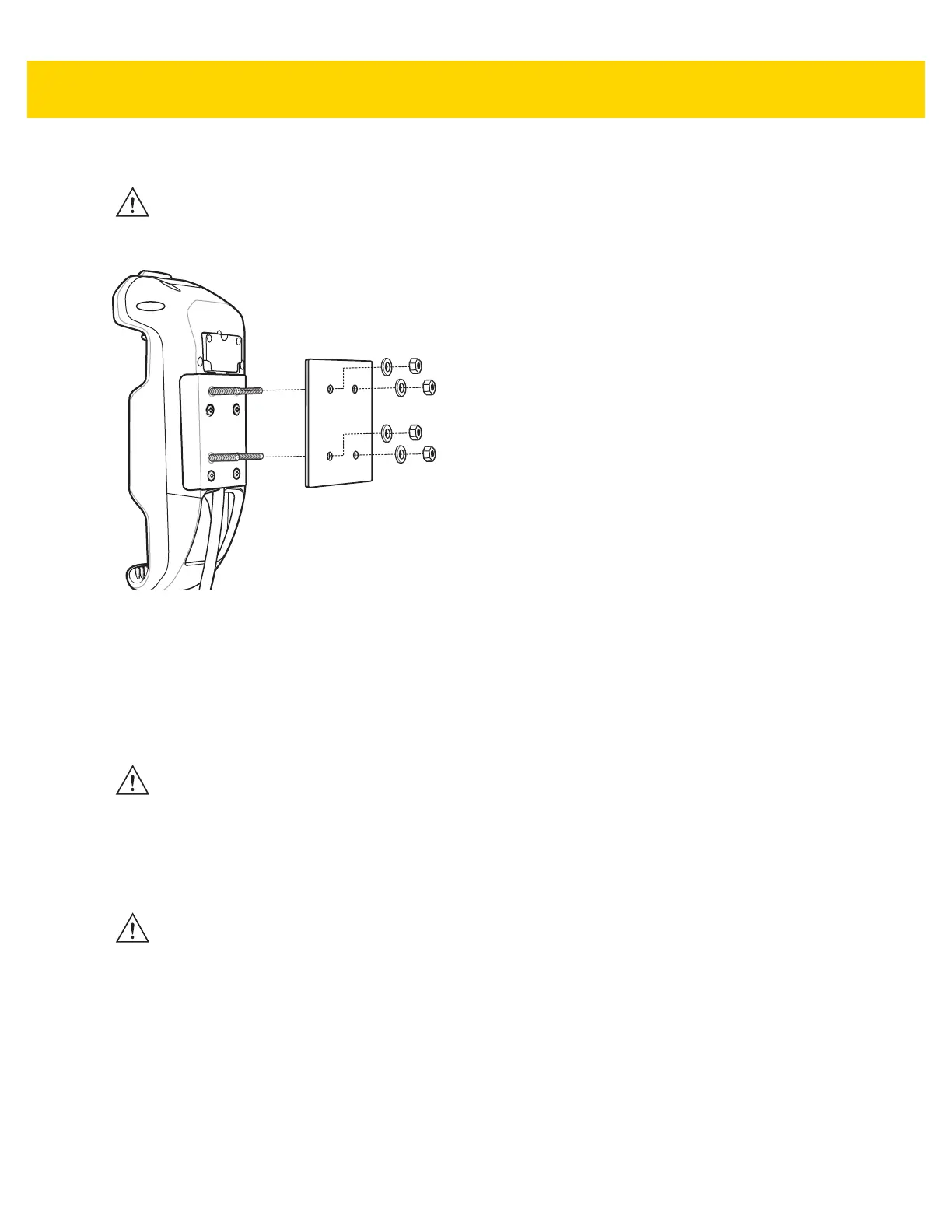

Figure 2-58 Align Screws with Holes in Surface
6. Tighten the screw to secure the cradle to the mounting plate.
Mounting the Cradle to a RAM Mount
To mount the cradle onto a RAM Mount:
1. Follow the instructions that are provided with the RAM Mount for RAM Mount mounting instructions.
2. Align the vehicle cradle with the RAM Mount ball base.
3. Secure the vehicle cradle to the ball base using M4 screws, lock washers and flat washers (provided).
CAUTION Do not install a Vehicle Cradle on or near an air bag cover plate or within an aerobic zone. Also, do not
install it in a location that affects vehicle safety or driveability.
CAUTION Only mount the Vehicle Cradle in a vertical position. Never mount the vehicle cradle on the side or upside
down or on a wall that can be subject to impact or collision of greater than 10Gs, in accordance with SAE
J1455 Section 4.10.3.5.
CAUTION Do not install a Vehicle Cradle on or near an air bag cover plate or within an aerobic zone. Also, do not
install it in a location that affects vehicle safety or driveability.
