2 - 24 TC70x Integrator Guide

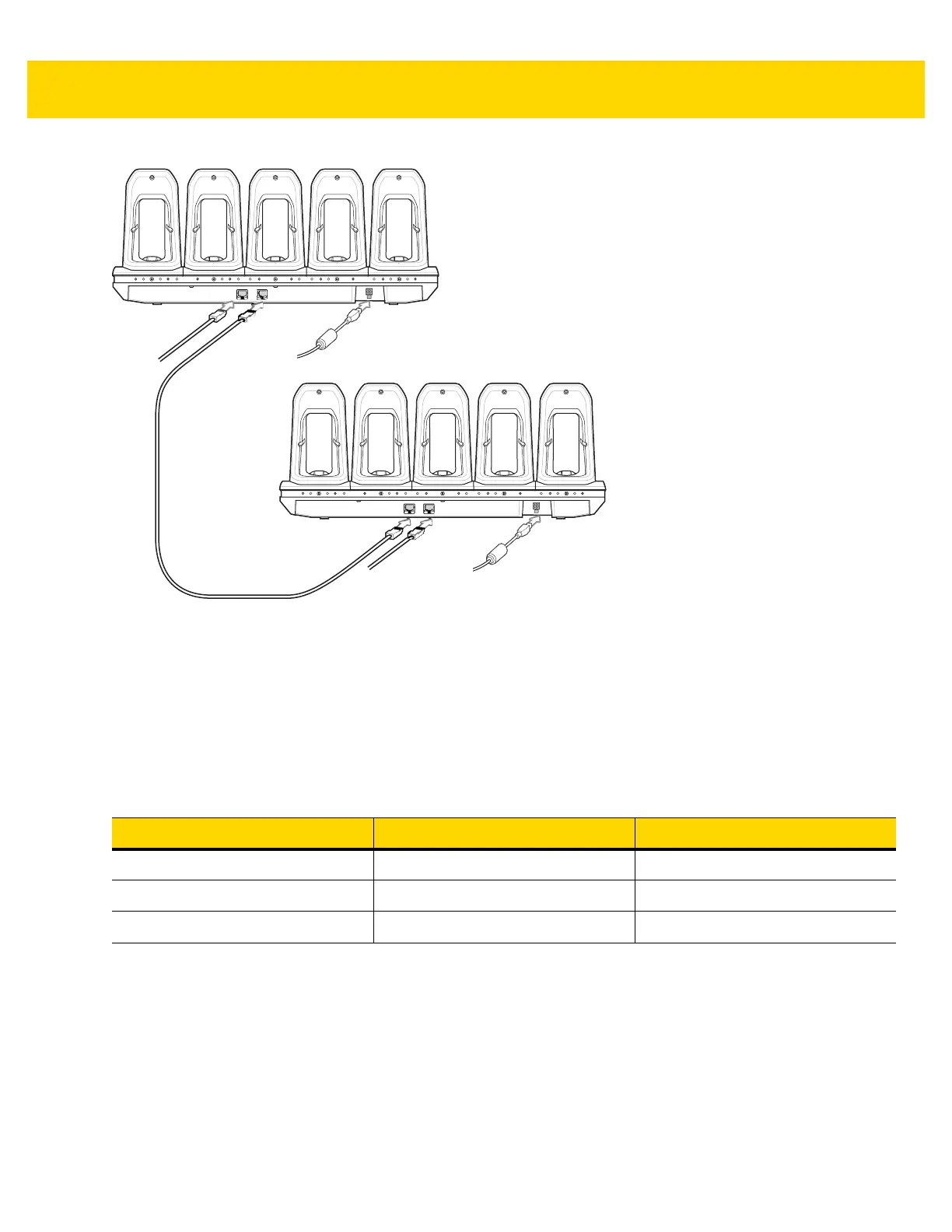

Figure 2-26 Daisy-chaining 5-Slot Ethernet Cradles
4. Connect additional cradles as described in step 2 and 3.
LED Indicators
There are two green LEDs on the side of the cradle. These green LEDs light and blink to indicate the data transfer
rate.
Charging the TC70x
1. Insert the TC70x into a slot to begin charging.
To Switch To Power Supply
To Power SupplyTo Next
Cradle
Table 2-5 LED Data Rate Indicators
Data Rate 1000 LED 100/10 LED
1 Gbps On/Blink Off
100 Mbps Off On/Blink
10 Mbps Off On/Blink
