2 - 42 TC70x Integrator Guide
TC7X Vehicle Communication Charging Cradle
Install the cradle into a vehicle. Once installed, the cradle:
• holds the TC75 securely in place
• provides power for operating the TC75 when connected to the optional USB I/O Hub.

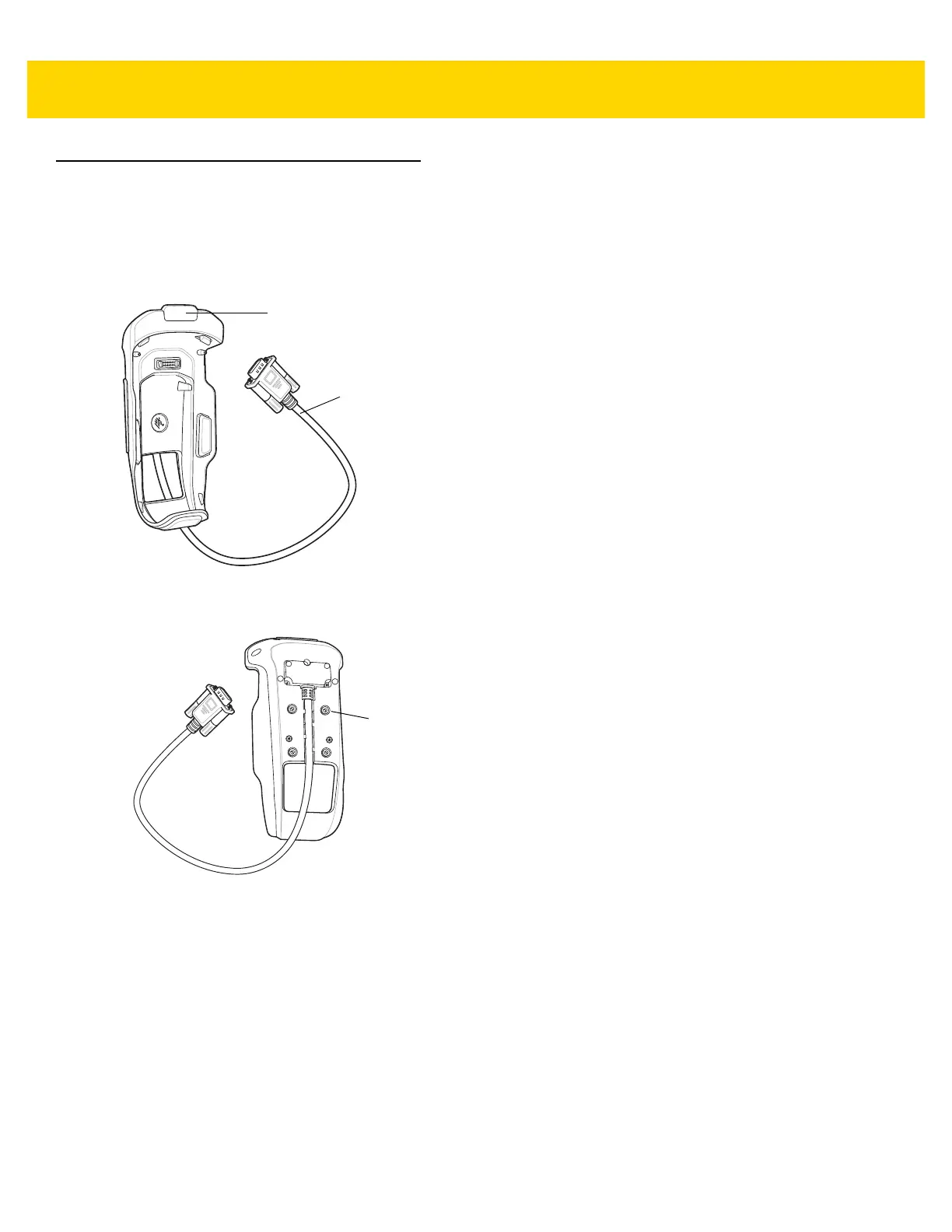

Figure 2-55 Features
Requirements
For mounting on a flat surface:
• four M3 screws (included)
• four wall anchors (not included).
For mounting onto a RAM Mount
®
:
• RAM Mount (sold separately)
• Four M4 screws, lock washers and flat washers (included).
FRONT VIEW
REAR VIEW
Mounting
Holes
Power Input Cable
Release Latch
To Next Page
