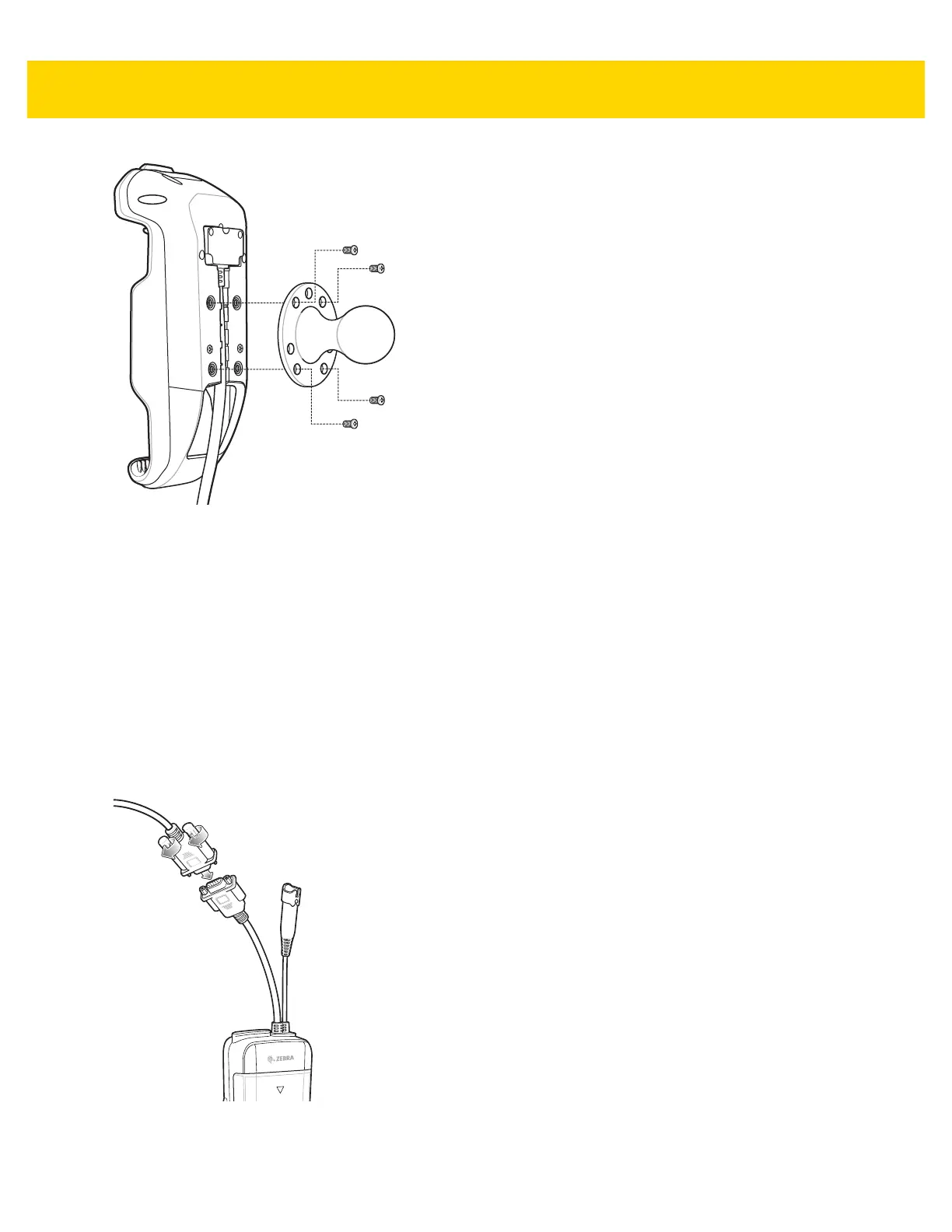

Figure 2-59 Align with RAM Mount
4. Secure the RAM Mount to the vehicle depending upon the type of RAM Mount. See instructions provided with
RAM Mount.
5. Tighten the screw to secure the cradle to the mounting plate.
6. Adjust RAM Mount according to RAM Mount instructions.
USB I/O Hub Power
To connect the USB I/O Hub to the vehicle cradle:
1. Connect the Power Input Connector to the USB I/O Hub Power Output connector.
2. Tighten thumb screws.
Figure 2-60 USB I/O Hub Connection
To Next Page
