Zebra TC70x Integrator Guide

Accessories 2 - 23
Setup
Connect the 5-Slot Ethernet cradle to a power source.

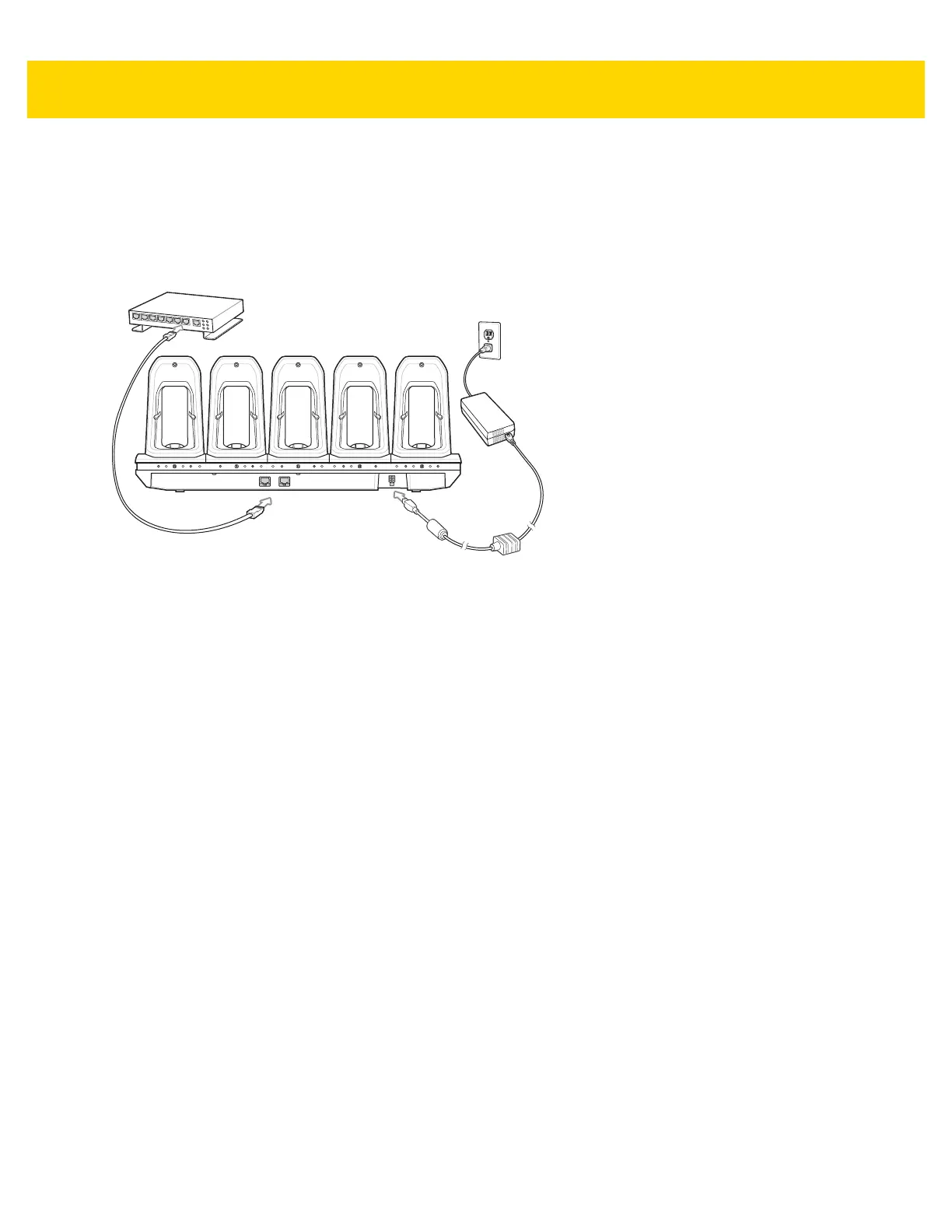

Figure 2-25 5-Slot Ethernet Cradle Setup
Daisy-chaining Ethernet Cradles
Daisy-chain up to ten 5-Slot Ethernet cradles to connect several cradles to an Ethernet network. Use either a
straight or crossover cable. Daisy-chaining should not be attempted when the main Ethernet connection to the first
cradle is 10 Mbps as throughput issues will almost certainly result.
To daisy-chain 5-Slot Ethernet cradles:
1. Connect power to each 5-Slot Ethernet cradle.
2. Connect an Ethernet cable to the one of the ports on the back of the first cradle and to the Ethernet switch.
3. Connect the other end of the Ethernet cable to one of the ports of the back of the second 5-Slot Ethernet
cradle.
2 100/10 LED – Indicates 100 Mbps or 10 Mbps data rate.

Zebra TC70x Specifications

General

Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Display diagonal	4.7 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Number of cores	6
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Product color	Black
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Rear camera resolution (numeric)	13 MP
Speakers	Mono

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
