Accessories 2 - 47
• power input cable (included), p/n CHG-AUTO-HWIRE1-01
• UL Listed in-line fuse rated 250V, 5A (included), must be used if not connecting to vehicle’s fuse panel
• in-line fuse holder (included), must be used if not connecting to vehicle’s fuse panel.
Mounting the USB I/O Hub to a Flat Surface
1. Select a mounting location for the cradle. It should be flat, and must provide adequate support for the USB I/O
Hub.
2. Prepare the mounting surface, using the mounting template below, with wall anchors that support the weight of
the USB I/O Hub. The anchors should accept four M3 screws.

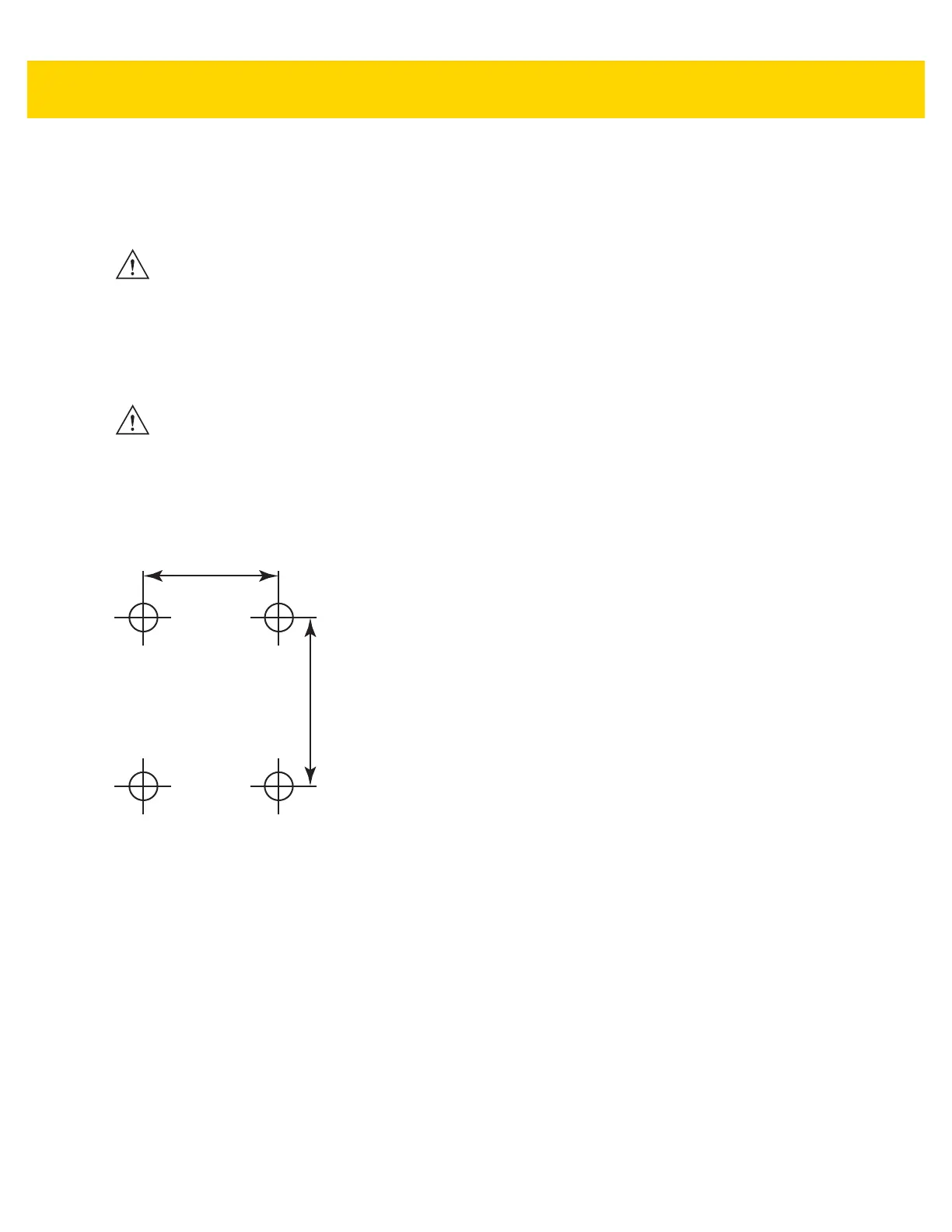

Figure 2-62 Mounting Templates
3. Position the mounting plate on the mounting surface.
CAUTION ROAD SAFETY - Do not use the device while driving. Park the vehicle first. Always ensure the device is
fully inserted into the cradle. Do not place it on the seat or where it can break loose in a collision or sudden
stop. Lack of proper insertion may result in property damage or personal injury. Zebra is not responsible for
any loss resulting from the use of the products while driving. Remember: Safety comes first.
CAUTION Only mount the USB I/O Hub in a vertical position. Never mount the USB I/O Hub on the side or upside
down or on a wall that can be subject to impact or collision of greater than 10Gs, in accordance with SAE
J1455 Section 4.10.3.5.
