2 - 46 TC70x Integrator Guide
USB I/O Hub
Install the USB I/O Hub into a vehicle. Once installed, the USB I/O Hub:
• provides power to a vehicle cradle
• provides USB hub for three USB devices (such as printers)
• provides a powered USB port for charging another device.
The USB I/O Hub is powered by the vehicle’s 12V or 24V electrical system. The operating voltage range is 9V to
32V and supplies a maximum current of 3A to the vehicle cradle and 1.5 A to the four USB ports simultaneously.

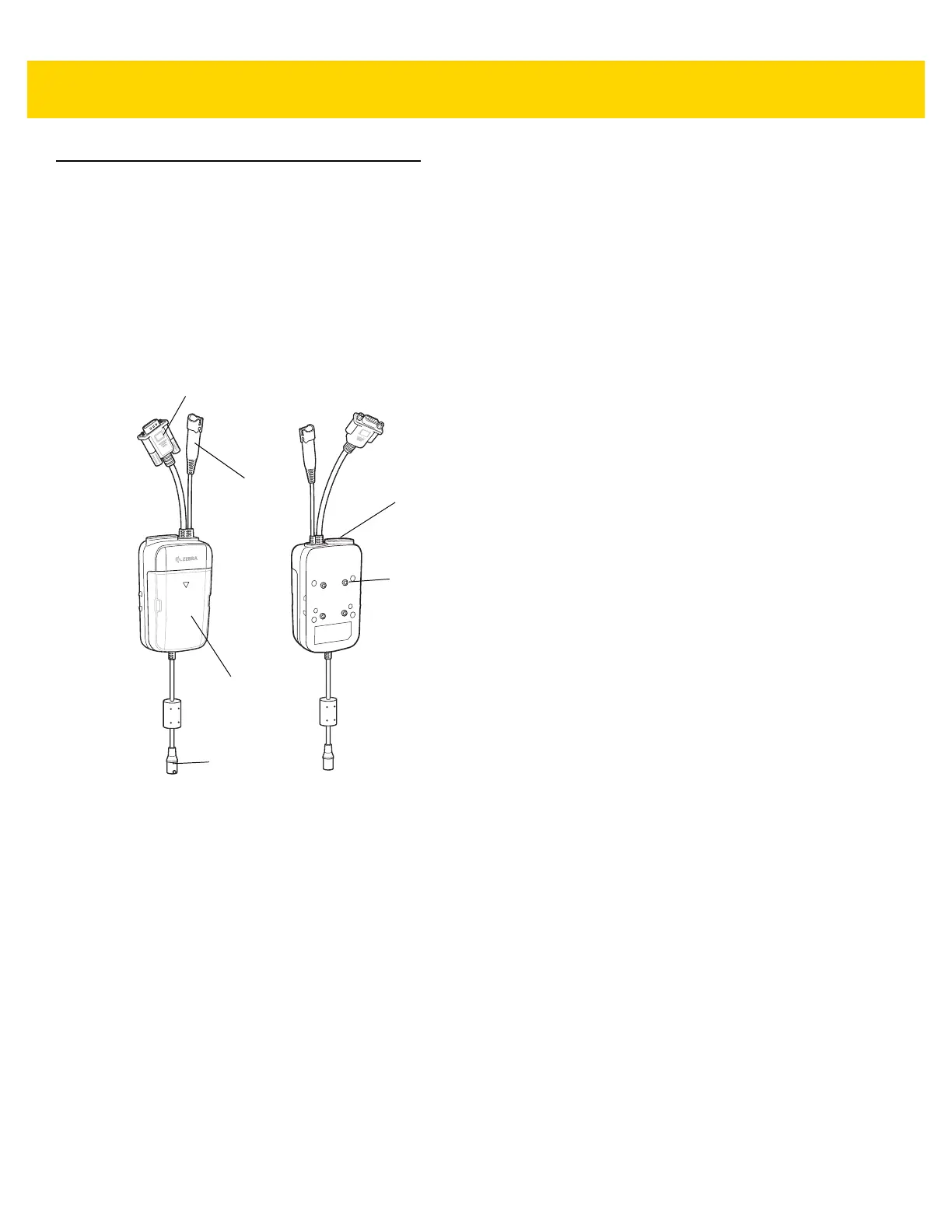

Figure 2-61 Features
Requirements
For mounting on a flat surface:
• four M3 screws (included)
• four wall anchors (not included).
For mounting onto a RAM Mount
®
:
• RAM Mount (sold separately)
• Four M4 screws, lock washers and flat washers (included).
For CLA power connection:
• CLA (not included), p/n CHG-AUTO-CLA1-01
For hard-wired power connection:
FRONT VIEW
REAR VIEW
Mounting
Screw Holes
Power and Communication Connector
Cable Cover
USB Port Access
Cover
Power Input
Connector
Audio
Connector
(3.5 mm)
To Next Page
