Zebra TC70x Integrator Guide

2 - 48 TC70x Integrator Guide

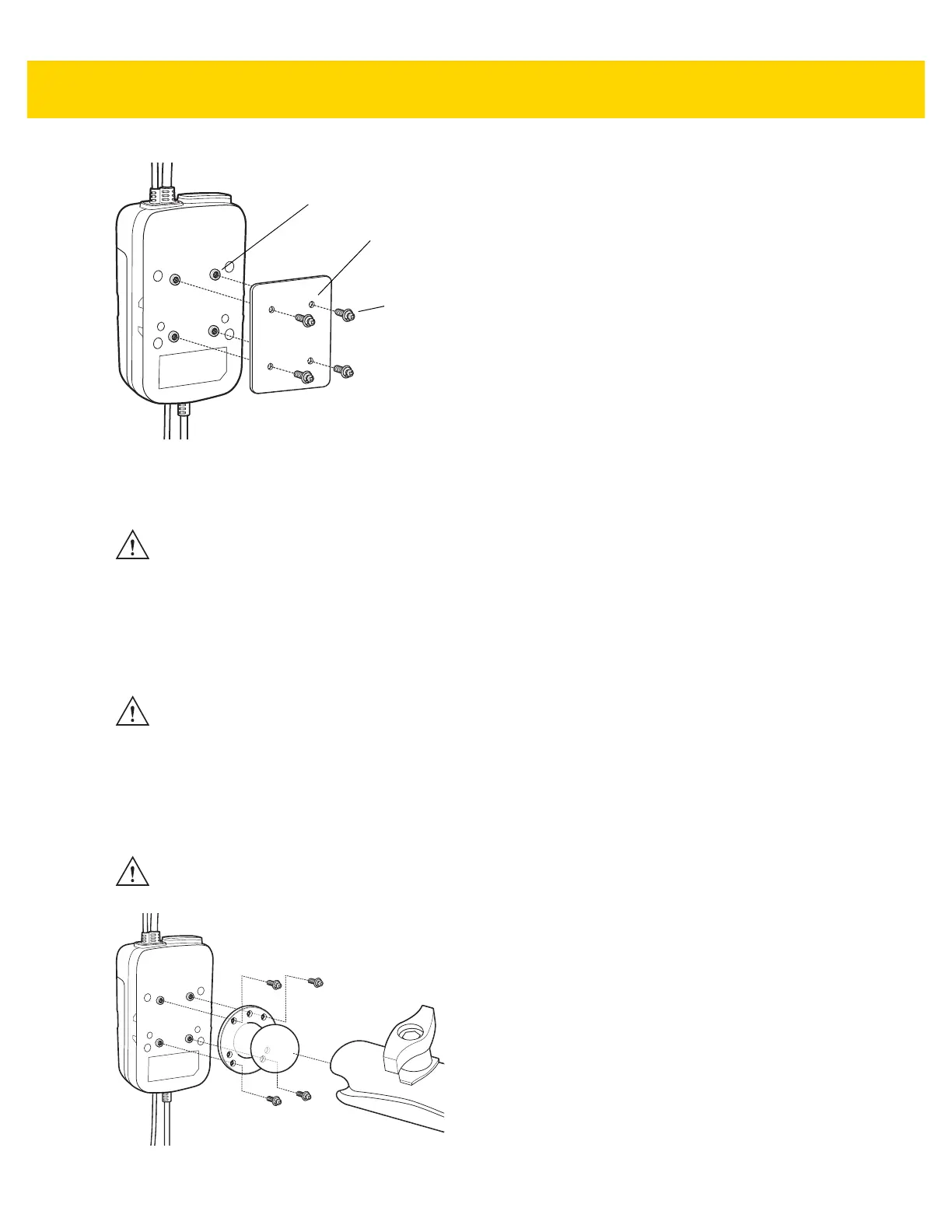

Figure 2-63 Align Screws with Holes in Surface
4. Fasten the mounting plate using four M3 screws (provided).
Mounting the Cradle to a RAM Mount
To mount the USB I/O Hub onto a RAM Mount:
1. Follow the instructions that are provided with the RAM Mount for RAM Mount mounting instructions.
2. Align the mounting plate with the RAM Mount ball base.
3. Secure the mounting plate to the ball base using M4 screws, lock washers and flat washers (provided).
Figure 2-64 Align with RAM Mount
CAUTION Do not install the USB I/O Hub on or near an air bag cover plate or within an aerobic zone. Also, do not
install it in a location that affects vehicle safety or driveability.
Mounting Holes
Flat Surface
Screws
CAUTION Only mount the USB I/O Hub in a vertical position. Never mount the USB I/O Hub on the side or upside
down or on a wall that can be subject to impact or collision of greater than 10Gs, in accordance with SAE
J1455 Section 4.10.3.5.
CAUTION Do not install the USB I/O Hub on or near an air bag cover plate or within an aerobic zone. Also, do not
install it in a location that affects vehicle safety or driveability.

Zebra TC70x Specifications

General

Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Display diagonal	4.7 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Number of cores	6
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Product color	Black
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Rear camera resolution (numeric)	13 MP
Speakers	Mono

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
