OPERATION
Axio Examiner Controls and functional elements for optional components Carl Zeiss
M60-2-0003 e 05/2012 79
4.4 Controls and functional elements for optional components
4.4.1 Reflector turret 4x or 6x
Reflector turrets 4x or 6x each have four or six P&C
reflector positions.
The reflector position is set by turning the thumb
wheel. The marks show the reflector position
which is located in the optical path.
To identify the reflector modules used, the data
corresponding to every position may be written on
the adhesive labels supplied. The labels may be
glued to the fields provided.
4.4.2 Axio Examiner.Z1 upper
microscope part with sideport
The Axio Examiner.Z1 upper microscope part with
sideport has a receptacle for a slider
(Figure 4-20/1). A beam splitter or a color splitter
may be inserted into this slider.
When the 100 % mirror is used, the microscopic
image will be transferred by the mirror to the
sideport (camera).

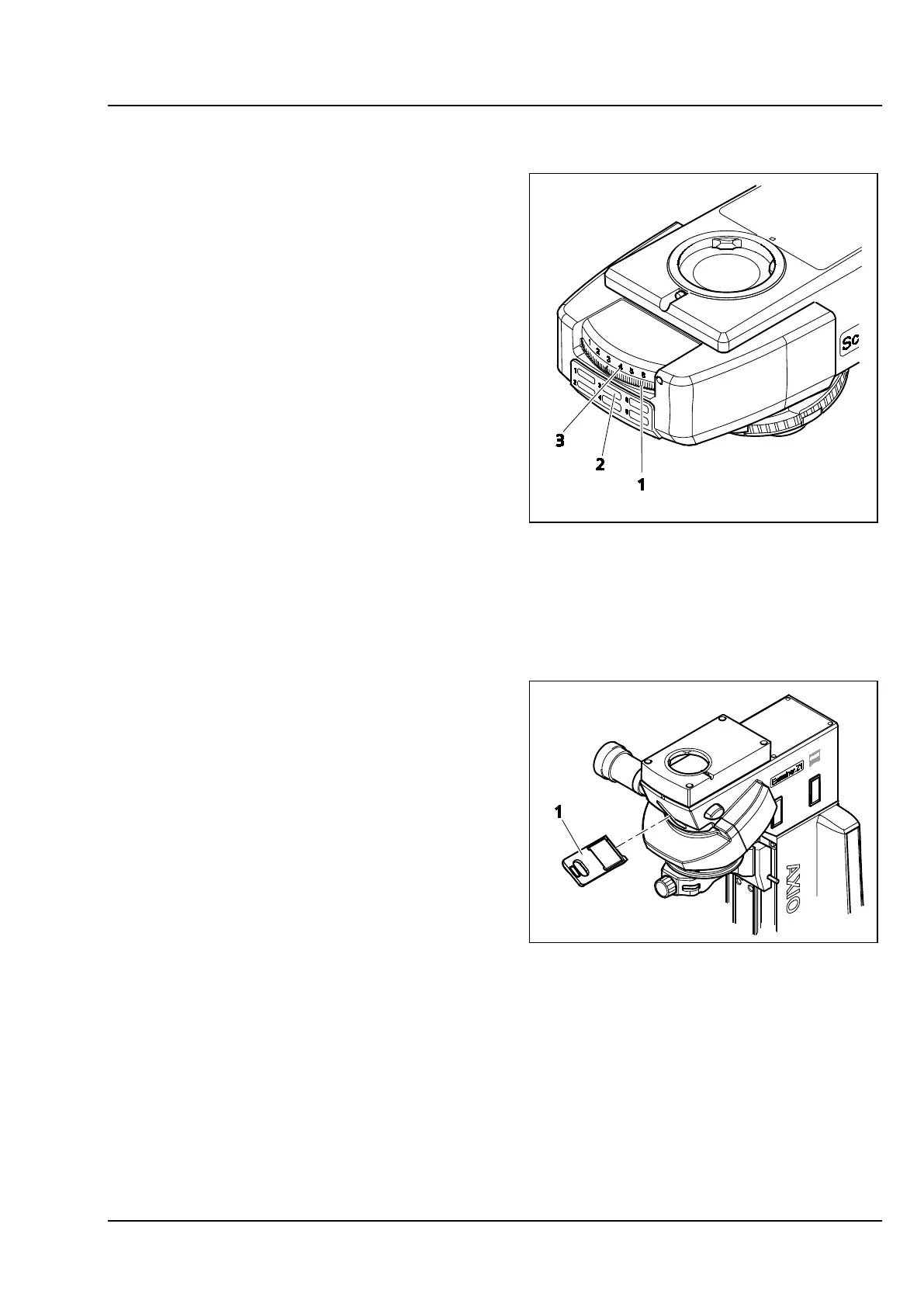

1 Thumb wheel with marking for position indicator
2 Fields for adhesive labels showing component
mounting data
3 Number indicating the reflector position set
Figure 4-19 Reflector turret 6x
1 Slider for sideport
Figure 4-20 D/A Axio Examiner.Z1 upper
microscope part
