Zetor CRYSTAL Series User Manual

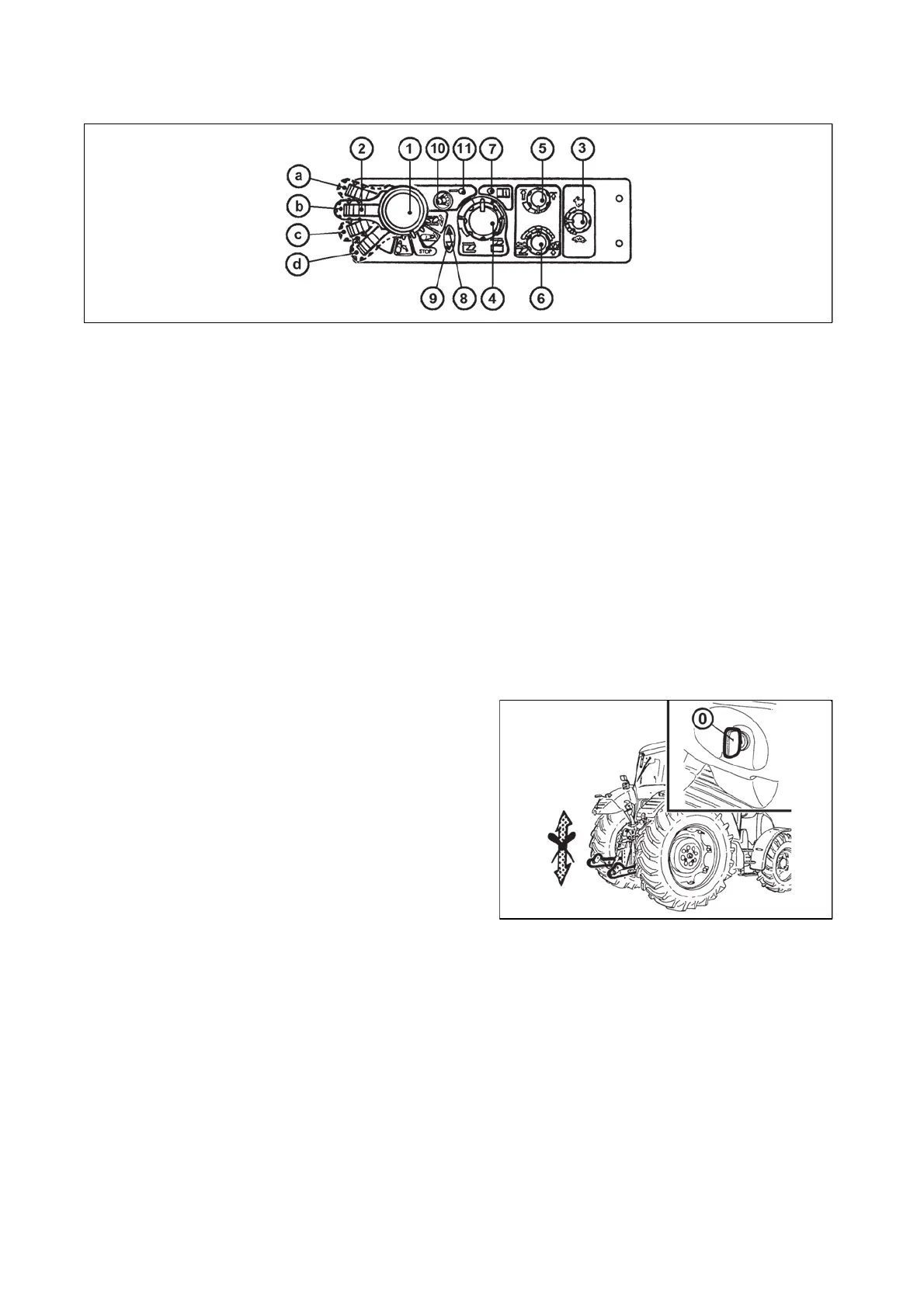

Control element functions
F_02_162
1. Lifting switch
a - Transport, lifting
b - STOP
c - Regularity of lowering (working)
d - Free position, fast sinking- automatic return of lever to (c) position by a spring
2. Blocking (in transport position)
3. Lowering speed
4. Setting the position of lifting device
5. Upper position restriction
6. Smooth setting - of manual control
- automatic control
7. LED - diagnostic
8. LED - lifting
9. LED - lowering
10. Engaging compensator (softening vibrations)
11. LED - softening vibrations engaged
Equipment 'OFF'
Electric installation deactivated with the key of the
switching box. The electronic system is off, the lifting
device is blocked.
F_02_188
ELECTRO-HYDRAULIC SYSTEM
109

Zetor CRYSTAL Series Specifications

General

Transmission	Mechanical or PowerShift
Aspiration	Turbocharged
Hydraulic System	Load Sensing (LS)
Cylinders	6
Hydraulic System Type	Load Sensing (LS)
PTO Speed	540/1000 rpm
Weight Approx	3, 800-5, 500 kg
