Replaceable end points of rear PTO shaft
Rear PTO switch
C15N016
Rear PTO shaft clutch is engaged by switch of rear PTO shaft. After engagement of the switch the shaft
spins.
The engagement of the rear PTO clutch is done by a switch (1) placed on the right column of the cabin. The
switch is equipped with a mechanical lock (2) against unwanted switch. When switching the switch, depress
the lock in downward direction.
After switching the switch (1) from (A) position to (B) position rear PTO shaft clutch is engaged and the shaft
spins.
After switching the switch (1) from (B) position to (A) position rear PTO shaft clutch is engaged and the shaft
stops.
A - rear PTO shaft clutch disengaged
B - rear PTO shaft clutch engaged
Check that the PTO shaft revolutions are set
ro
erl
with re
ard for the connected tools
The tractor is equipped with six or twent
-one splined
replaceable end point of rear PTO shaft.

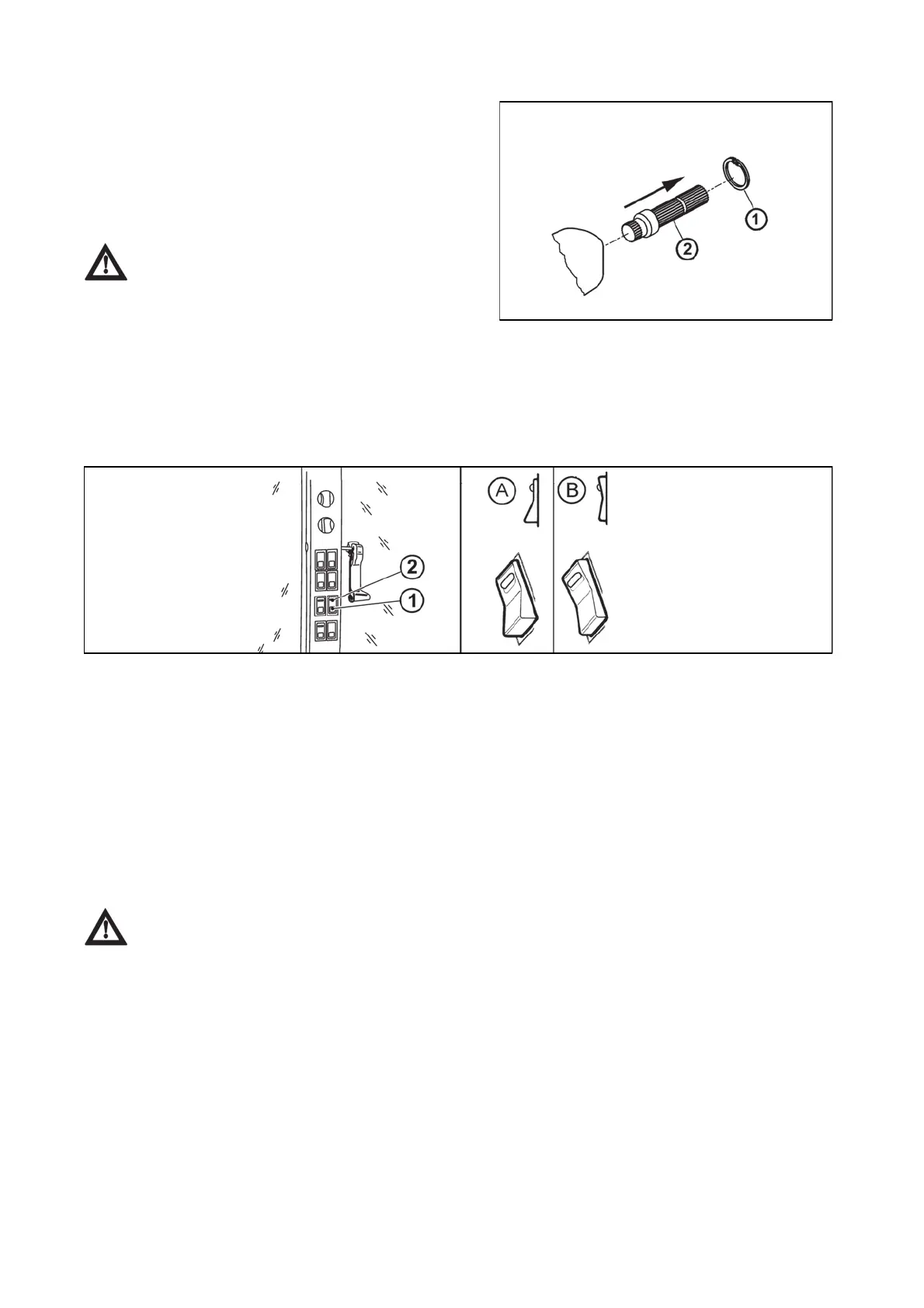

Replacement procedure:
1. Use safety ring pliers to demount a safety ring (1)
2. Remove replaceable end point by pulling in the
direction of an arrow (2)
3. Mount the end point in an opposite way, pay increased
attention to the mounting of the safety ring (1)
Replacement of the terminal shall be performed
when the engine is stopped.
Rpm of the output shaft and terminal type shall be
chosen depending on the prescribed rpm of the
coupled mechanism.
Shifting 540 and 1,000 or 540E min
-1
is possible
regardless to the number of splines of the installed
terminal.
E357
DRIVE OF AGRICULTURAL MACHINERY
