Zetor CRYSTAL Series User Manual

Setting of steering sensors of the front axle
C15N109
Setting of steering sensors of the front axle
- During any interference in geometry of the front axle
- During replacement of sensors of the front axle
- During replacement of the instrument panel
- During replacement of the front axle
Calibration procedure
- Indicate the track of the length of 15 m on suitable place
- Inflate the tractor tyres to the required pressure
- Start the engine
- Park the tractor at the start of the track

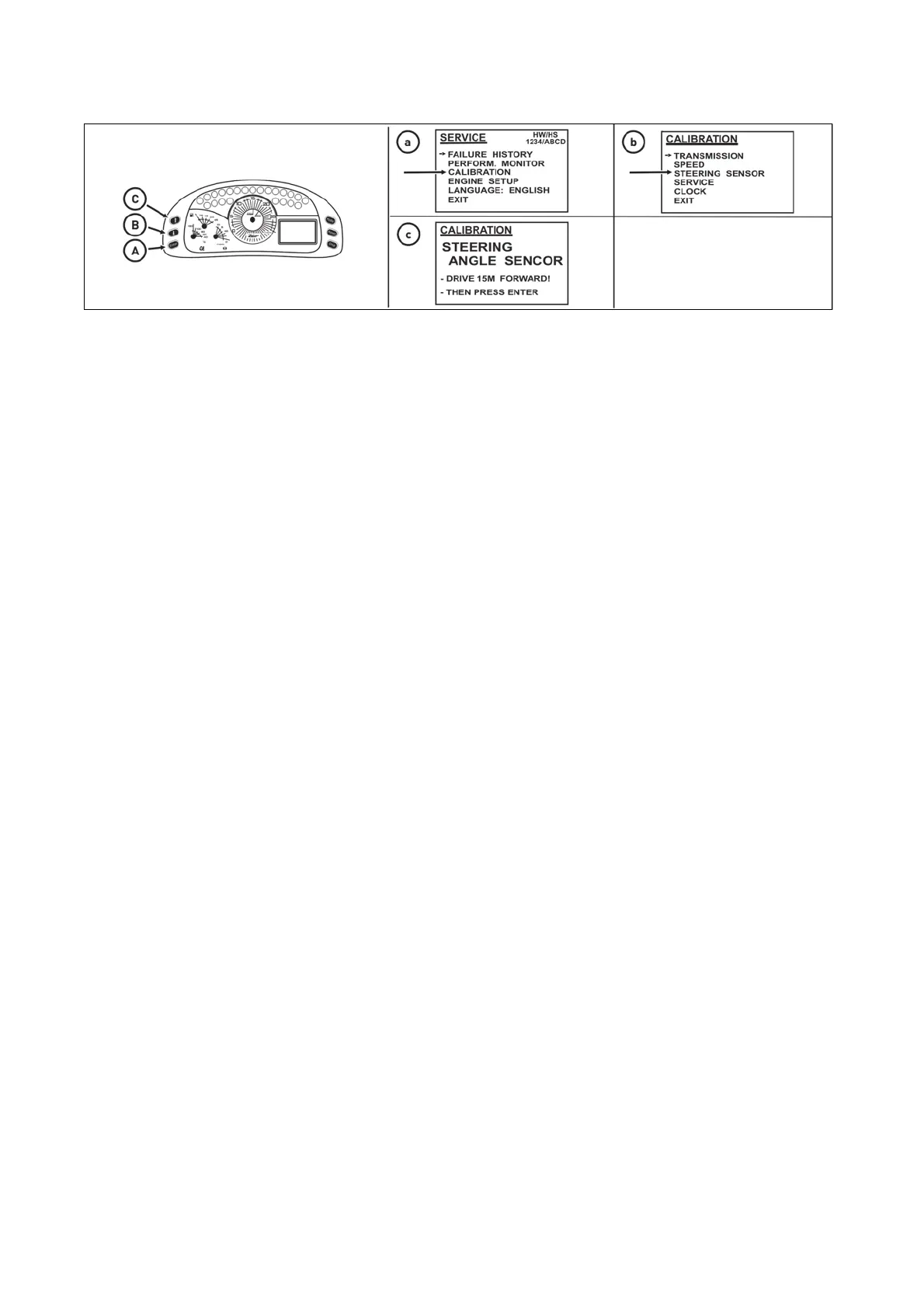

- By pressing button (A) enter the service menu
- Use buttons (B) and (C) to select the item CALIBRATION indicated with arrow (a) and by pressing button
(A) you enter the calibration menu
- Use buttons (B) and (C) to select the item SETTING OF STEERING SENSORS OF THE FRONT AXLE
indicated with arrow (b) and by pressing button (A) you enter another screen
- Drive the tractor straight forward 15 metres and stop the tractor
- By pressing button (A) the values are stored and you are returned to the main screen
DASHBOARD
59
