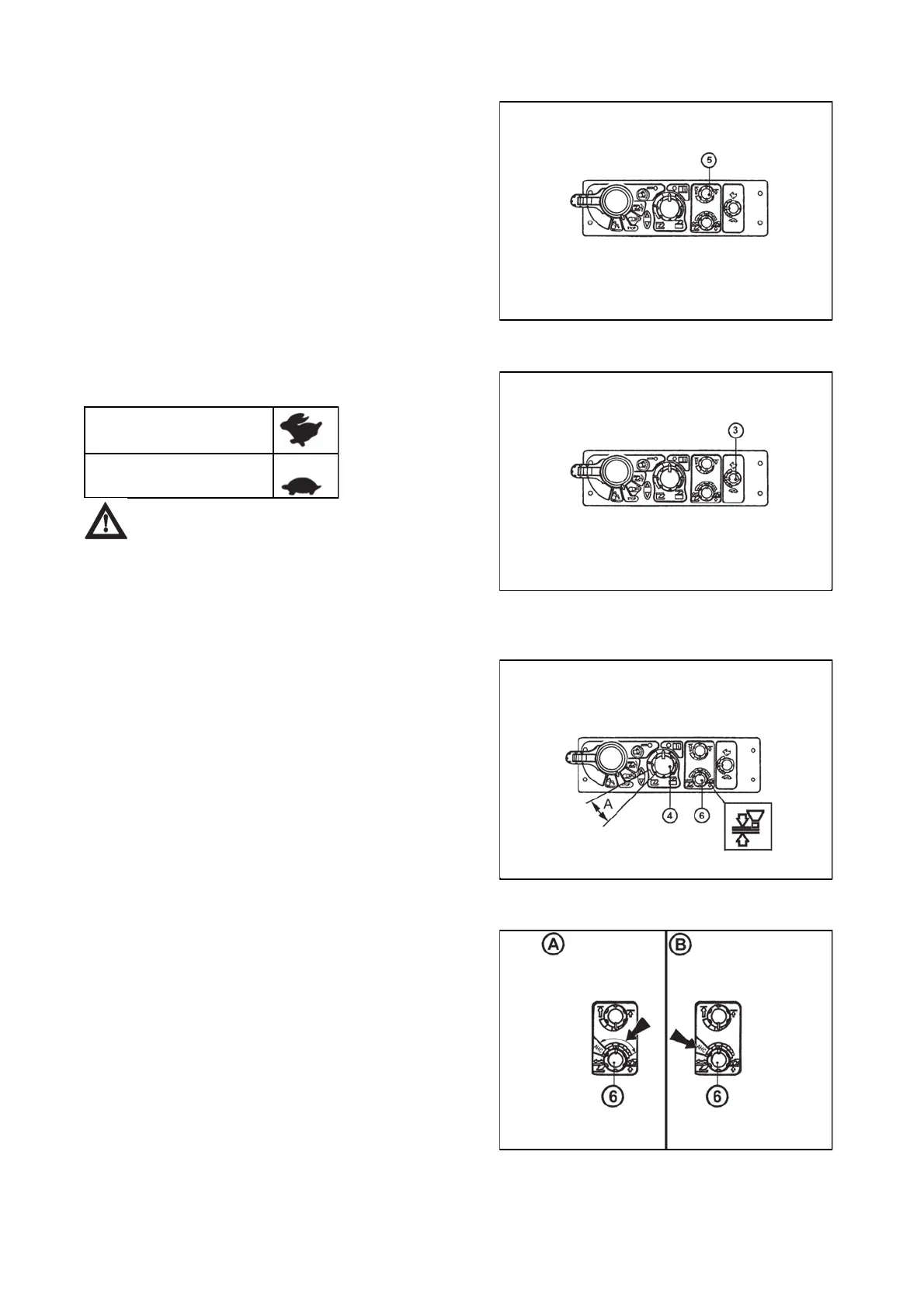

Limitation of the upper position of the three-point hitc
h
Lowering speed
Free position
Setting the control of three-point hitch
It is activated with the control (5). The limitation can be
implemented in the upper half of the three-point hitch lift.
F_02_169
The lowering speed of the three-point hitch is set with the
control (3).
In the vibration dampening mode and during
the use of the rear control buttons the lowering speed
setting is out of function.
Symbol of the maximum
lowering speed
Symbol of the minimum
lowering speed
F_02_170
For permanent work with free hydraulic system, e.g.
during work with a plough with a support wheel the
position of the control (4) under the indication (A) and the
position of the control (6) at the positional control symbol
is used.
F_02_171
Electrohydraulics enables two ways of three-point hitch
control.
A. Manual control setting - control (6) is set in the range
see arrow
B. Automatic control - control (6) is set in HitchTronic
(AHC) position see arrow
Automatic control can be at any time exchanged for
manual and the other way round by a control (6).
ahc_01
ELECTRO-HYDRAULIC SYSTEM
112
