Automatic limiting draw-bars
FHD14N087

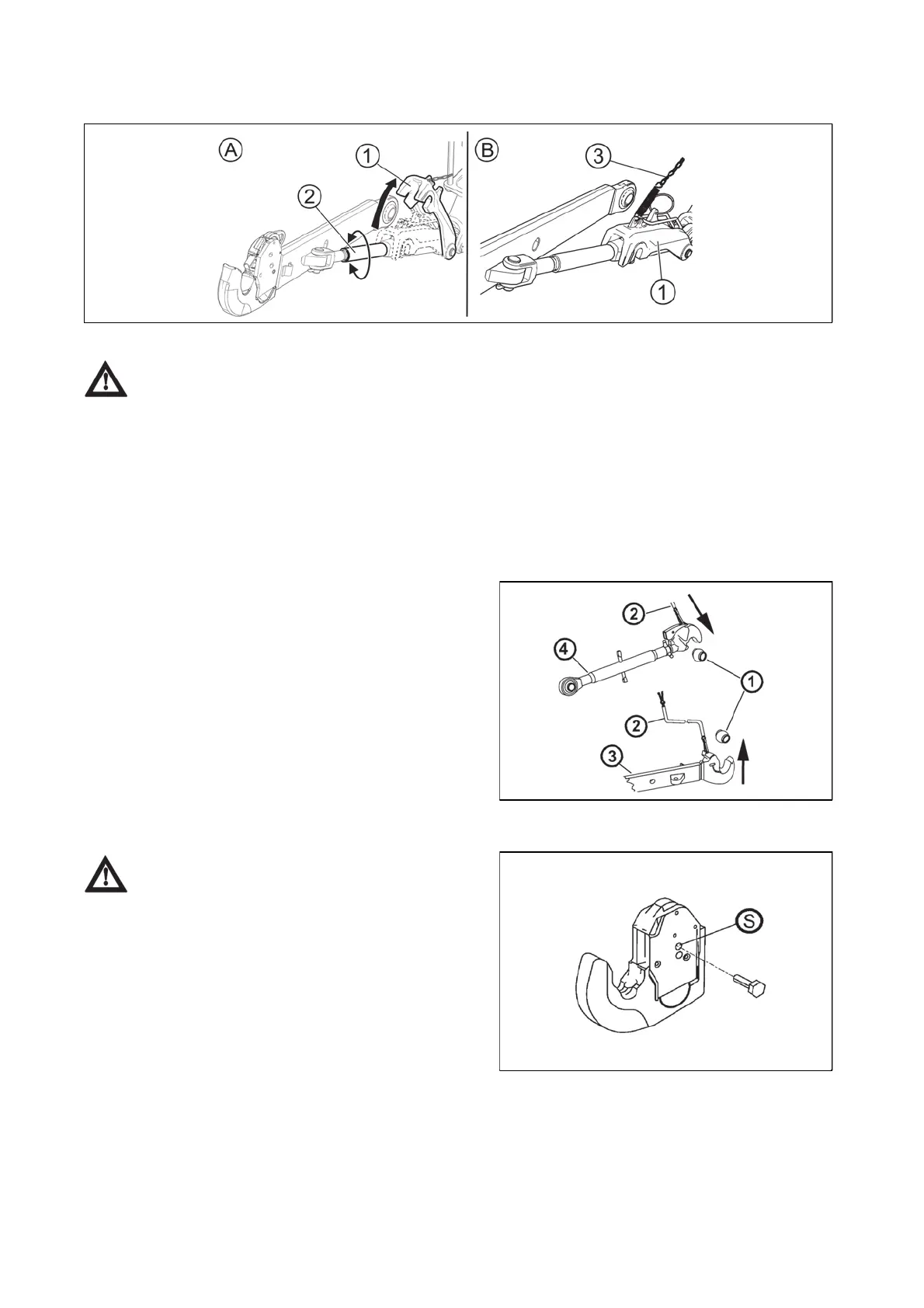

Both limiting drawbars must be mounted to the tractor at all times.
The length adjustment of the left and right limiting drawbar is done by turning the tube of the drawbar ( 2)
after heaving the securing block ( 1 ) in the direction of an arrow ( A ). Floating position of limiting drawbars
( B ).
If the tools connected in the rear three-point hitch require floating position, set the applicable length of chain
( 3 ). Securing block ( 1 ) remains hanging on the chain (3) in lifted position when you lower the arms of rear
three-point hitch and limiting drawbars enable side swing of tools connected in the rear three-point hitch.
After lifting the arms of the rear three-point hitch, securing block returns to initial position and blocks the side
swing of arms of the rear three-point hitch.
*Lower draw-bars with CBM hooks
Securing the lower draw-bars with CBM hooks
The lower (3) and upper (4) draw-bars of the hitch are
equipped with CBM hooks.
First, suspension CBM balls (1) must be fitted to the
implement and the limiting draw-bars must be used to set
the distance between the lower draw-bars of the hitch (3).
After reversing and subsequent lifting of the three-point
hitch its lower draw-bars (3) are connected to the
implement and then the driver connects the upper draw-
bar (4) of the three-point hitch from the cab.
When disconnecting the implement release the hooks,
with the control wires (2) lift the upper draw-bar (4) and by
lowering the three-point hitch disconnect the lower draw-
bars (3).
E460
For especially demanding working positions
(aggregation with heavy machines on slopes or
aggregation with machines overhanging to one side)
we recommend you to securely lock the lower draw-
bar hook by inserting an M8 screw in the opening (S)
and locking it with a nut.
