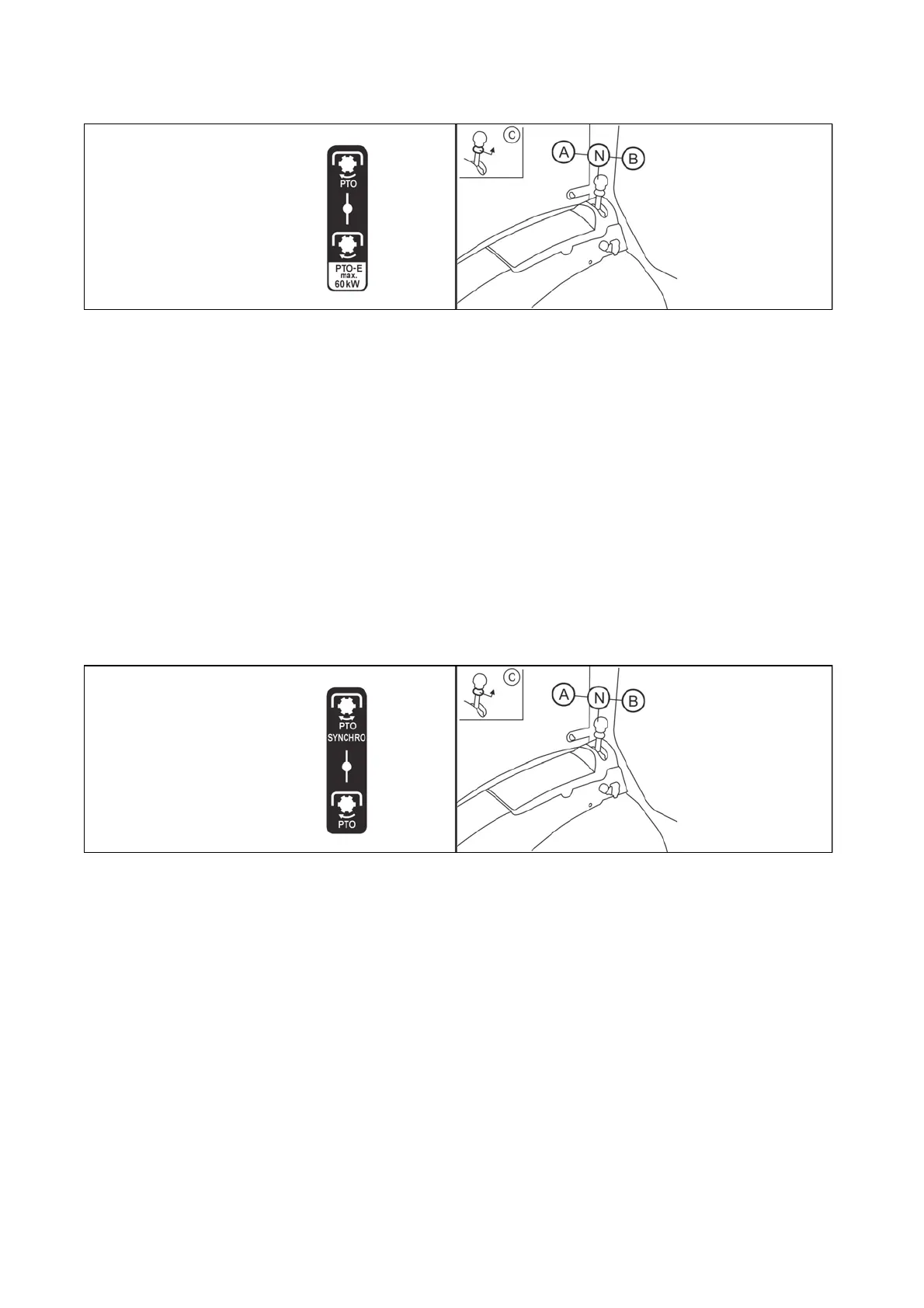

Standard and economical independent revolutions of rear PTO shaft
FH13N006
The system used in the tractor is marked on the label placed by rear PTO shaft revolutions preselection
lever.
This system has only independent revolutions of rear PTO shaft.
With engaged standard PTO shaft revolutions (A), one can engage 540 or 1000 revolutions of rear PTO
shaft on the right side of the cab column by the revolutions selection switch.
With engaged economical PTO shaft revolutions (B), the switch of rear PTO shaft revolutions preselection on
the right column of the cab can be used to engage 540E or 1000E rear PTO shaft revolutions.
The lever is placed on the right side of driver's seat. After shifting the lever, it is necessary to lift collar in the
direction of the arrow (C).
Dependent and independent rear PTO shaft revolutions
FH13N007
The system used in a tractor is marked on the label placed by the rear PTO shaft revolutions preselection
lever.
This system has only 540 or 1000 rear PTO shaft revolutions.
With engaged dependent (A) or independent (B) rear PTO shaft revolutions (B), the switch of rear PTO shaft
revolutions preselection on the right column of the cab can be used to engage 540E or 1000E of rear PTO
shaft revolutions.
The lever is placed on the right side of driver's seat. For shifting the lever, it is necessary to lift collar in the
direction of the arrow (C).
A - Standard PTO shaft revolutions en
a
ed
N - Neutral position
rear PTO shaft end-point can be spun freel
B - Economical revolutions of PTO shaft engaged
A - PTO shaft dependent revolutions engaged
N - Neutral position (rear PTO shaft end-point can be spun freely)
B - Independent PTO shaft revolutions engaged
DRIVE OF AGRICULTURAL MACHINERY
