Facilitating connection of joint shaft of an aggregated machine to the tracto
FH12N002

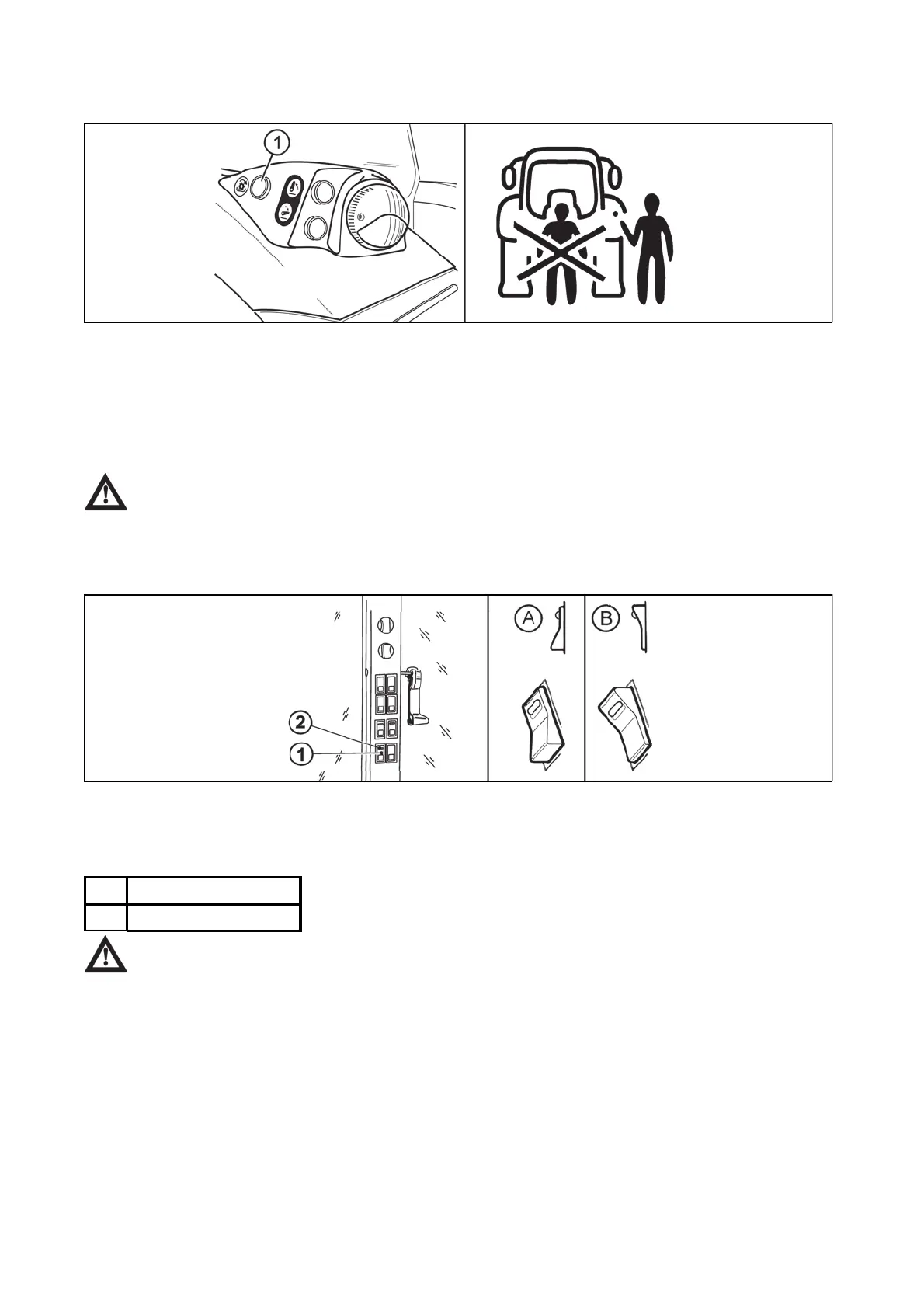

For facilitating the connection of joint shaft of aggregated machine to a tractor a button (1) placed on
mudguards can be used.
With the engine running and rear PTO shaft switch off, spinning of rear PTO shaft occurs after pressing the
button (1). PTO shaft stops spinning after releasing the button.
Beware: Rear PTO shaft revolutions preselection lever must not be in (N) position or in the position of
a dependent revolution of rear PTO shaft.
When manipulating with PTO shaft by means of buttons (1), the operator must stand beyond
the space of the connected tools not to be caught or injured.
Selection switch of rear PTO clutch revolutions (P.T.O.)
FH13N014
Shifting rear PTO shaft revolutions is done by a switch (1) The switch is equipped with a mechanical lock (2)
against unwanted switch. When switching the switch, depress the lock in downward direction.
The change of PTO shaft revolutions - 540 and 1000 per minute to be done only with PTO shaft
at halt! Check that the revolutions of PTO shaft are set accordingly with regard for the connected
tools!
A - 540 rpm
B - 1000 rpm
