Zetor CRYSTAL Series User Manual

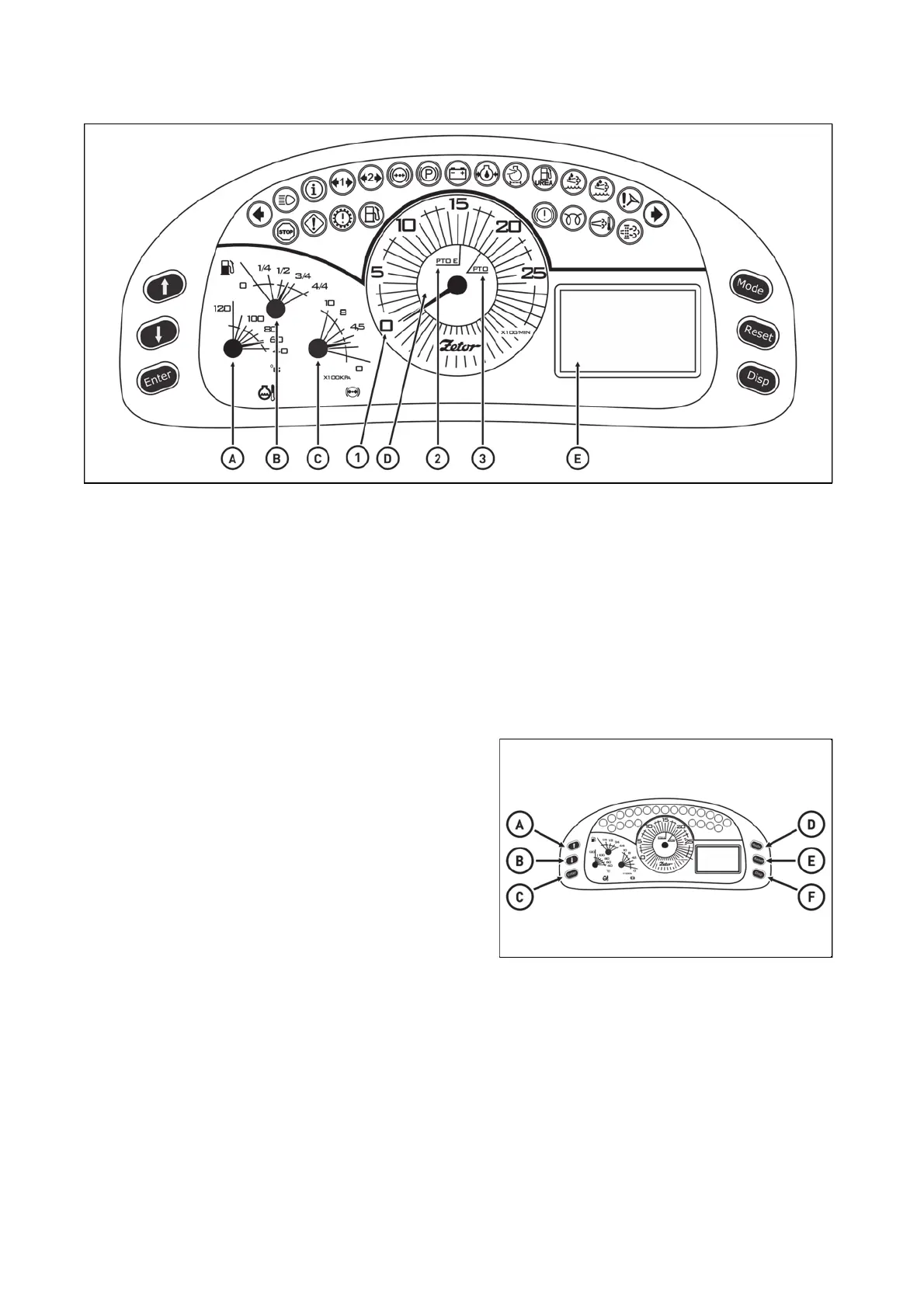

Instrument panel - instruments
C15N094
A - coolant thermometer
B - fuel gauge
C - air pressure gauge
D - speedometer
1. Engine revolutions
2. Indicator of engine revolutions at which nominal revolutions of the rear PTO at economic revolutions of the
rear PTO shaft are achieved.
3. Indicator of engine revolutions at which nominal revolutions of the rear PTO at standard revolutions of the
rear PTO shaft are achieved.
E - display
Instrument panel - buttons
A - Rolling up in the menu button
B - Rolling down in the menu button
C - Entry to the menu button, confirming items on the
menu
D - LCD backlight inversion button
E - Reset button hours of operation and km
F - Change of display button in the navigation menu
C15N041
DASHBOARD
44

Zetor CRYSTAL Series Specifications

General

Transmission	Mechanical or PowerShift
Aspiration	Turbocharged
Hydraulic System	Load Sensing (LS)
Cylinders	6
Hydraulic System Type	Load Sensing (LS)
PTO Speed	540/1000 rpm
Weight Approx	3, 800-5, 500 kg
