Zetor CRYSTAL Series - Zuidberg Front PTO Speed; Turning Circle and Clearance Dimensions

To Next Page

To Previous Page

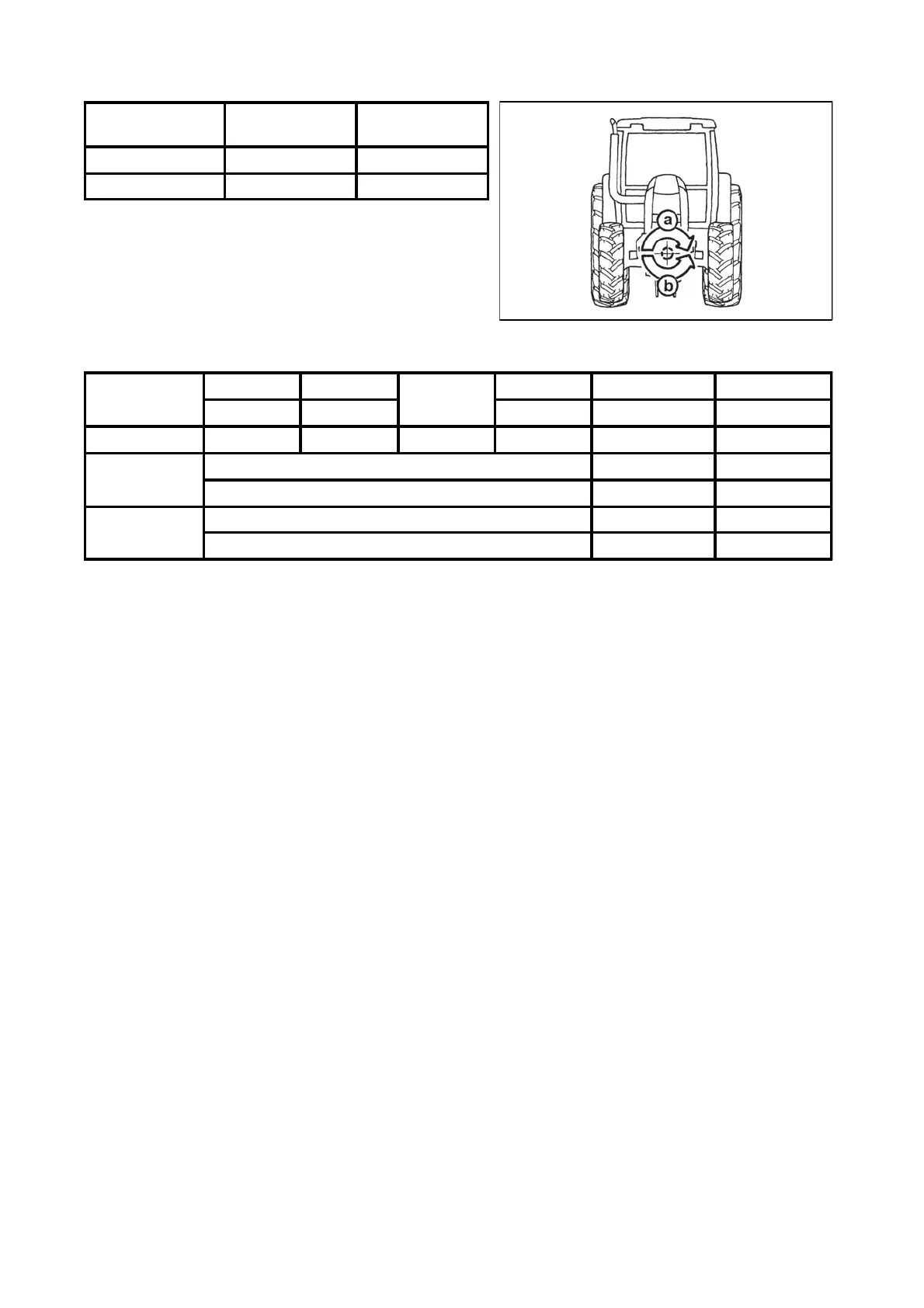

Speed of the Zuidberg front PT

Clearance-circle and turning circle diameter

* - option

Turning direction

PTO speed /

engine speed

PTO speed /

engine speed

right (a) 1000 / 1920 1094 / 2100

*left (b) 1000 / 2000 1050 / 2100

E80

Track width

front 1974 mm

Tire size

front 540/65R28

rear 1850 mm rear 650/65R38

Left Right

Track diameter

Without engagement of the front driving axle 12840 mm 12870 mm

With engagement of the front driving axle 12630 mm 12640 mm

Outline

diameter

Without engagement of the front driving axle 113620 mm 13670 mm

With engagement of the front driving axle 13370 mm 13440 mm

MAIN TECHNICAL PARAMETERS

174
