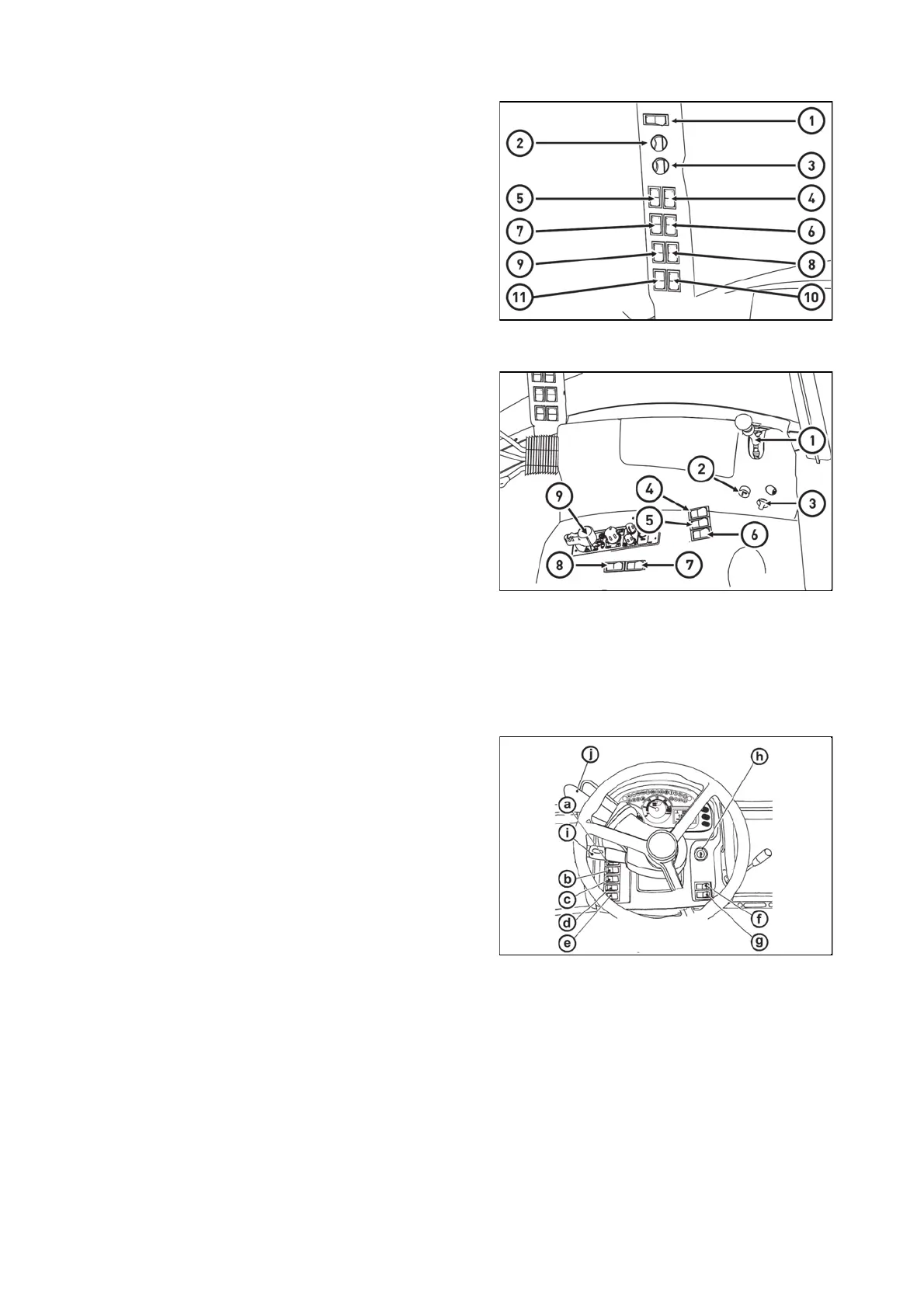

Control panel on the right column of the cabi
Control panel on the right rear mudguard
Panel of the instrument panel
1 - switch of the cycler of the front wiper
2 - two-position switch of the front wiper and of the control
of the front washer
3 - switch of the rear wiper
4 - switch of heating of the rear wiper
5 - switch of heating of the rear mirrors
6 - switch of the rear work lights on the cabin roof
7 - switch of the front work lights on the cabin roof
8 - switch of the rear PTO shaft
9 - switch of the front PTO shaft
10 - switch of the automatic switching off of the rear PTO
shaft
11 - switch of the revolution control of the rear PTO shaft
C15N051
There are controllers located on the control panel on the
right rear mudguard
1 - Pre-selection lever of the rear PTO shaft (more
information in chapter POWER OF AGRICULTURAL
MACHINES)
2 - Firer
3 - Three-pin socket
4 - Switch of the multiplier pre-selection (more information
in chapter DRIVING)
5 - Switch of differential closures (more information in
chapter DRIVING)
6 - Switch of the control of the front driving axle (more
information in chapter DRIVING)
7 - Switch of the height setting of the tractor front part
(more information in chapter DRIVING)
8 - Switch of the setting of the suspension mode of the
front driving axle (more information in chapter DRIVING)
9 - Panel of the electrohydraulic control (more information
in chapter ELECTROHYDRAULICS)
C15N052
a - lights switch (off, parking, head)
b - lower beam lights in the grill of the tractor and working
lights in the cabin of the tractor switch
c - Fog light switch (off - on). Fog light function is
signalized by a lit symbol on the switch.
d - Working lamp switch (off - on). Working lamp function
is signalized by a lit symbol on a switch.
e - warning lights switch
f - beacon switch (off - on)
g - working lights in the grill of the bonnet switch (off - on)
h - switch box
i - direction lights, lower beam head lights, head lights and
horn switches acoustic and light
- reversing lever (forward, neutral, backward)
FHD14N073
ACQUAINTANCE WITH THE TRACTOR
