Zetor CRYSTAL Series User Manual

Ai
r
-condition and heating registers (A)
F13BN010

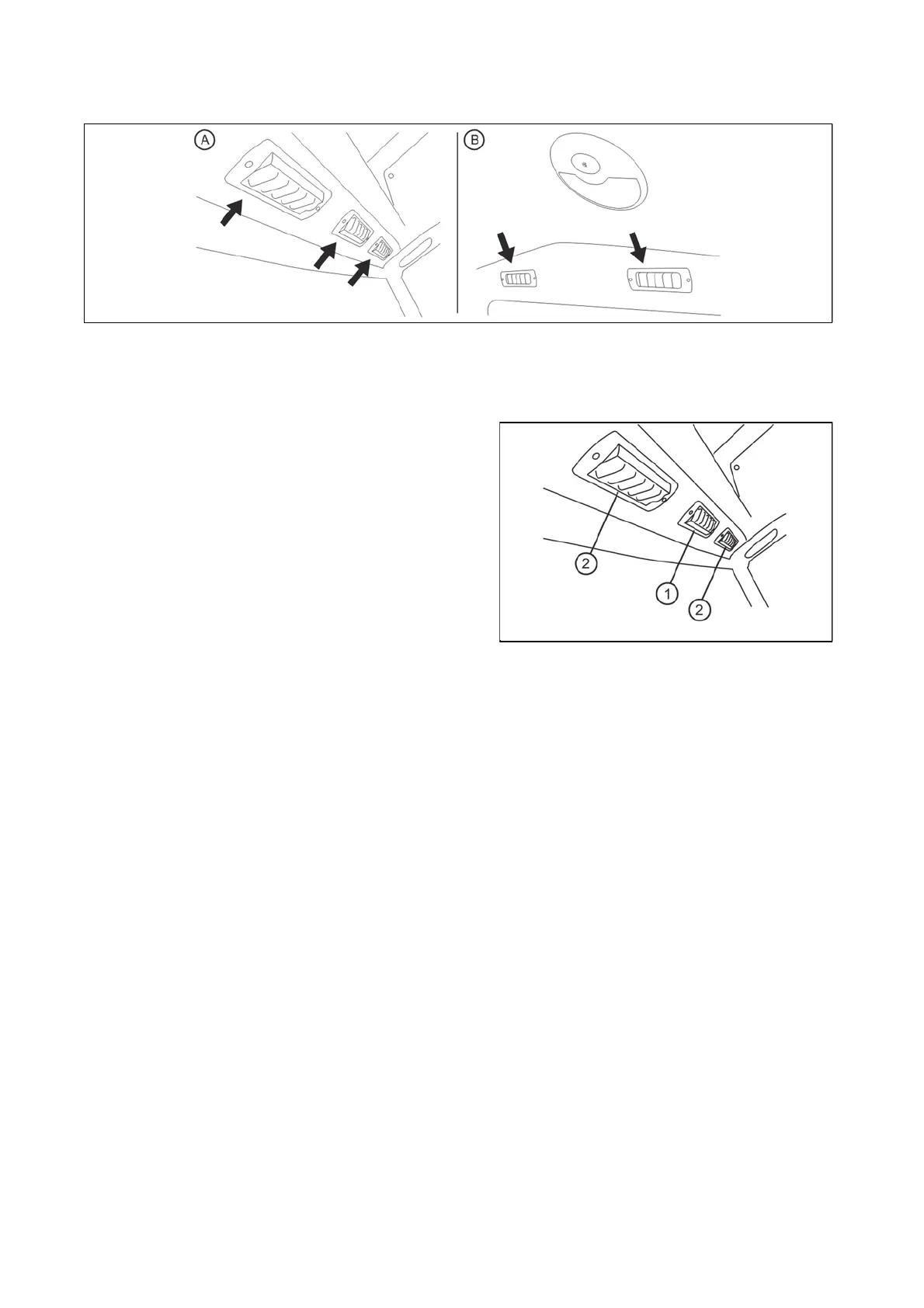

Positionable heating and * air-condition registers, front (A), rear (B).
Front windshield (B) defrosting
To ensure quick defrosting of the front windshield direct
the central heating outlets (1) under the angle of approx.
45° towards the windshield. Direct the side outlets (2)
under the angle of approx. 45° to the cab corners.
After defrosting of the front windshield direct the side
outlets to the side glasses of the doors as necessary and
gradually defrost them. After defrosting direct the outlets in
such a way that the air should not be blown directly to the
driver, but down to the driver's legs.
F13BN011
ACQUAINTANCE WITH THE TRACTOR
39

Zetor CRYSTAL Series Specifications

General

Transmission	Mechanical or PowerShift
Aspiration	Turbocharged
Hydraulic System	Load Sensing (LS)
Cylinders	6
Hydraulic System Type	Load Sensing (LS)
PTO Speed	540/1000 rpm
Weight Approx	3, 800-5, 500 kg
