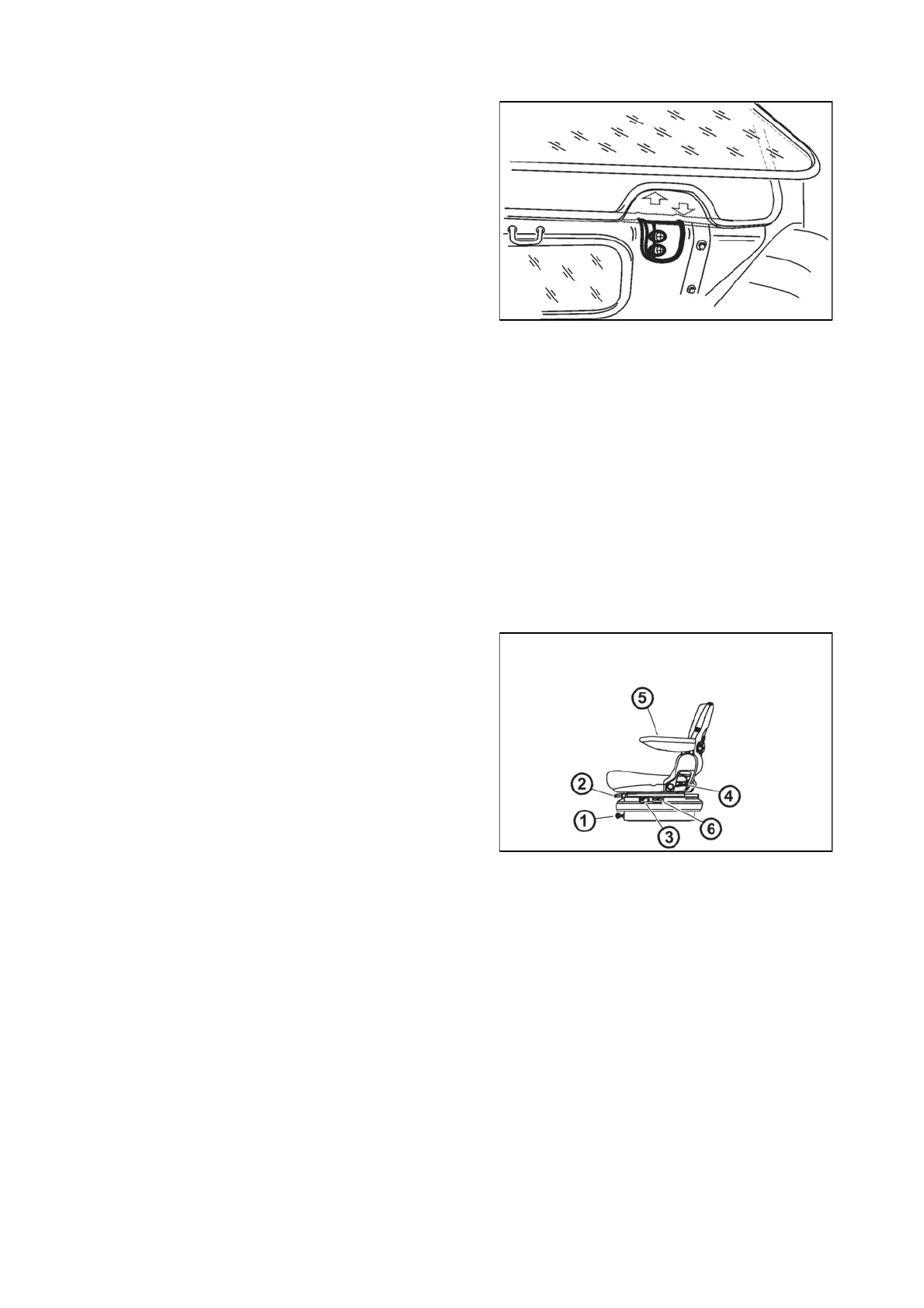

Aggregation openin
Driver´s seat
1 - The control of setting the seat suspension according to the driver´s weight (setting by rotation, in the
direction according to pictogram on the boot of the seat)
2 - Longitudinal setting of the seat lever
3 - Seat vibrations absorption control (by tilt over of the control forward, floating position of the seat is
engaged)
4 - Setting the angle of rest control
5 - Tilting elbow rest
6 - Pneumatic suspension of seat setting control (by pulling in the direction upward, the rigidity of the
suspension increases, by pulling in downward direction, it decreases)
Driver´s seat with mechanical suspension
Control according to points 1, 2, 3, 4 and 5
Point 2, lever is placed on the right
Driver´s seat with pneumatic suspension
ggregation opening serves for cabelling or Bowden
control of aggregated tools placement.
Pull to protrude the part of sealing of rear window in
upward direction. Put the aggregated tool control through
the originated hole.
Insert cabelling or Bowden controls to the holes of
passage of aggregation opening. Return the sealing of the
rear window to its original position by exercising pressure.
F11N091
Control according to points 2, 3, 4, 5 and
Point 2, lever is placed on the left
FH12N026
ACQUAINTANCE WITH THE TRACTOR
