Zetor CRYSTAL Series User Manual

Console with a ø 80 ball module
Hitch for a single-axle CBM semi-trailer
The console with a ø 80 ball is only used to
connect semi-trailers with a hitching device designed
for a ø 80 ball.

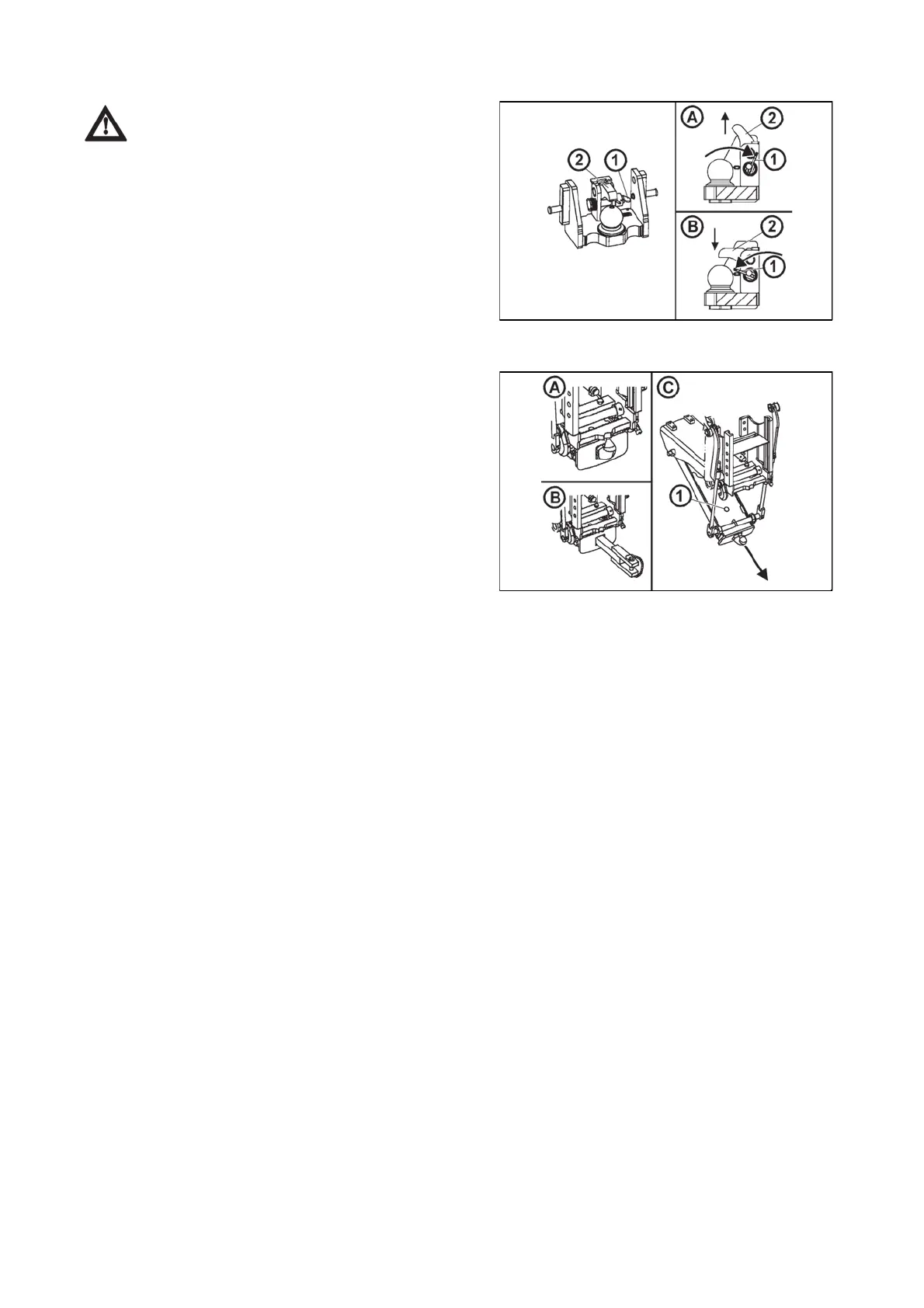

Releasing the hitch, fig. (A):
By moving the lever (1) in the arrow direction you will
remove the locking wedge (2).
Locking the hitch, fig. (B):
By moving the lever (1) in the arrow direction you will
retract the locking wedge (2).
D207
The hitch for a single-axle semi-trailer may be equipped
with a hook (A) or with a swinging draw-bar (B).
Replacing the hook with the swinging draw-bar (C):
1 - Lower the hitch.
2 - Release and remove the pin (1).
3 - Remove the hook in the arrow direction.
Install the swinging draw-bar in the reverse order.
D208
TRANSPORTATION
91

Zetor CRYSTAL Series Specifications

General

Transmission	Mechanical or PowerShift
Aspiration	Turbocharged
Hydraulic System	Load Sensing (LS)
Cylinders	6
Hydraulic System Type	Load Sensing (LS)
PTO Speed	540/1000 rpm
Weight Approx	3, 800-5, 500 kg
