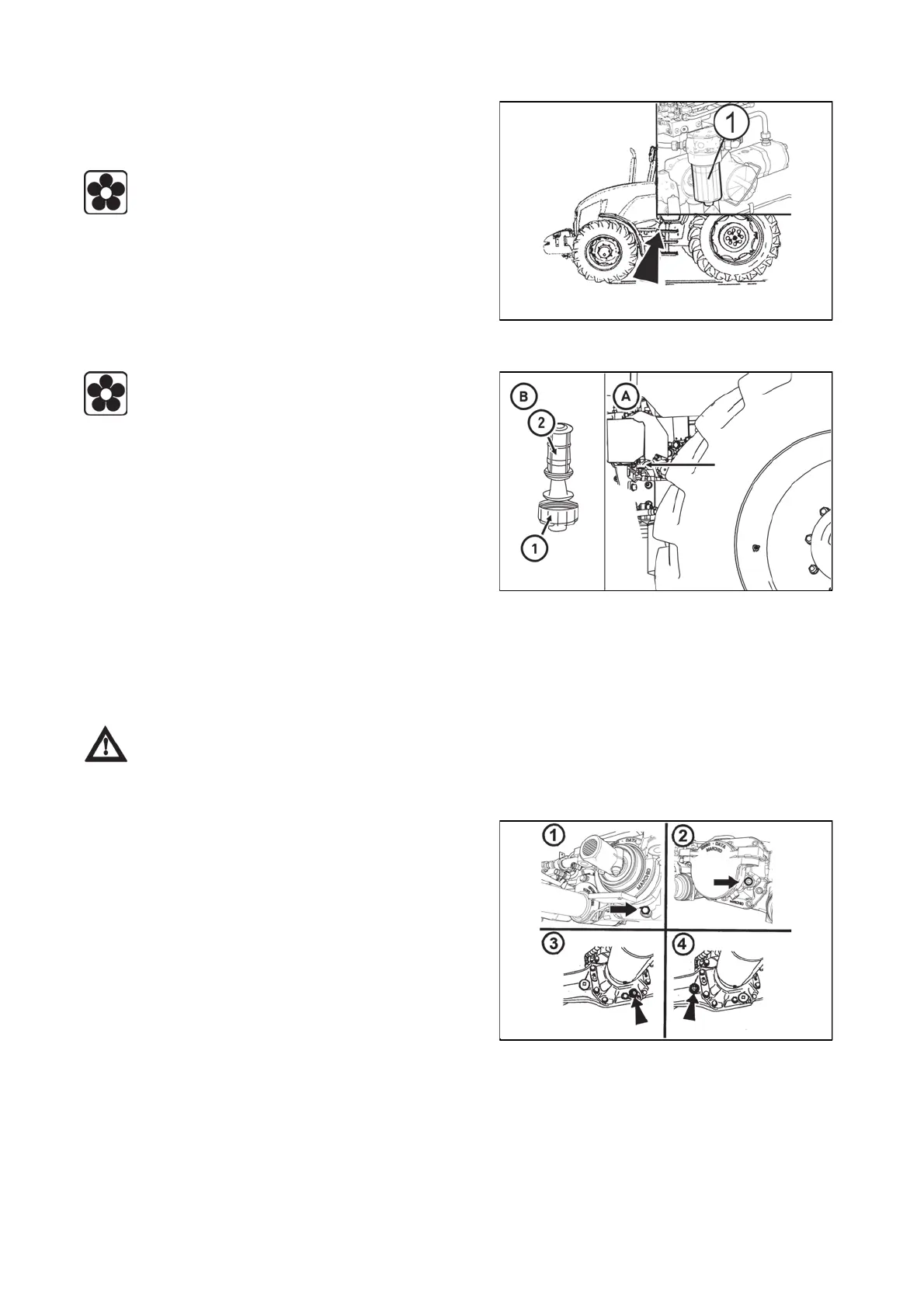

Insertion piece replacement of the oil cleaner with delivery filter of the gearbox switchboar
Replacement of filter element of urea filter
Lubrication and filling points of the front driving axle
The oil filter is located on the left side of the gearbox
In case of indication of full oil filter element, replace the
element regardless the interval of planned replacement of
filters and their elements.
Prior to the replacement of the filter element put
a suitable vessel for catching the dripping oil under
the tractor.
1. Unscrew the oil filter body (1)
2. Clean the oil filter body (1)
3. Replace the filter element
4. Perform the reassembly of the oil filter body
C15N089
Prior to the replacement of urea filter element
ut a suitable vessel under the tractor for catchin
the
dripping urea liquid.
The urea filter element is replaced when the engine is not
running and the key is removed from the switch box.
The urea cleaner is located in the right side of the engine
on the urea pump block (A).
B - Procedure for replacement:
1 - dismount the cover (1)
2 - remove the filter element with the compensation body
(2)
3 - insert the new filter element with the compensation
body (2)
4 - mount the cover (1) with the tightening torque of 20-25
Nm
5 - start the engine and check the tightness
When handling components that are in contact
with urea, use
rotective
loves
C15N108
Suspension front drive axle
1. Drain opening of the final drive housing oil
2. Filling and inspection opening of final drive housing oil
(after removing of the inspection screw the oil level must
reach the bottom edge of the inspection opening)
Solid front drive axle
3. Drain opening of the final drive housing oil
4. Filling and inspection opening of final drive housing oil
(after removing of the inspection screw the oil level must
reach the bottom edge of the inspection opening)
FHD14N090
