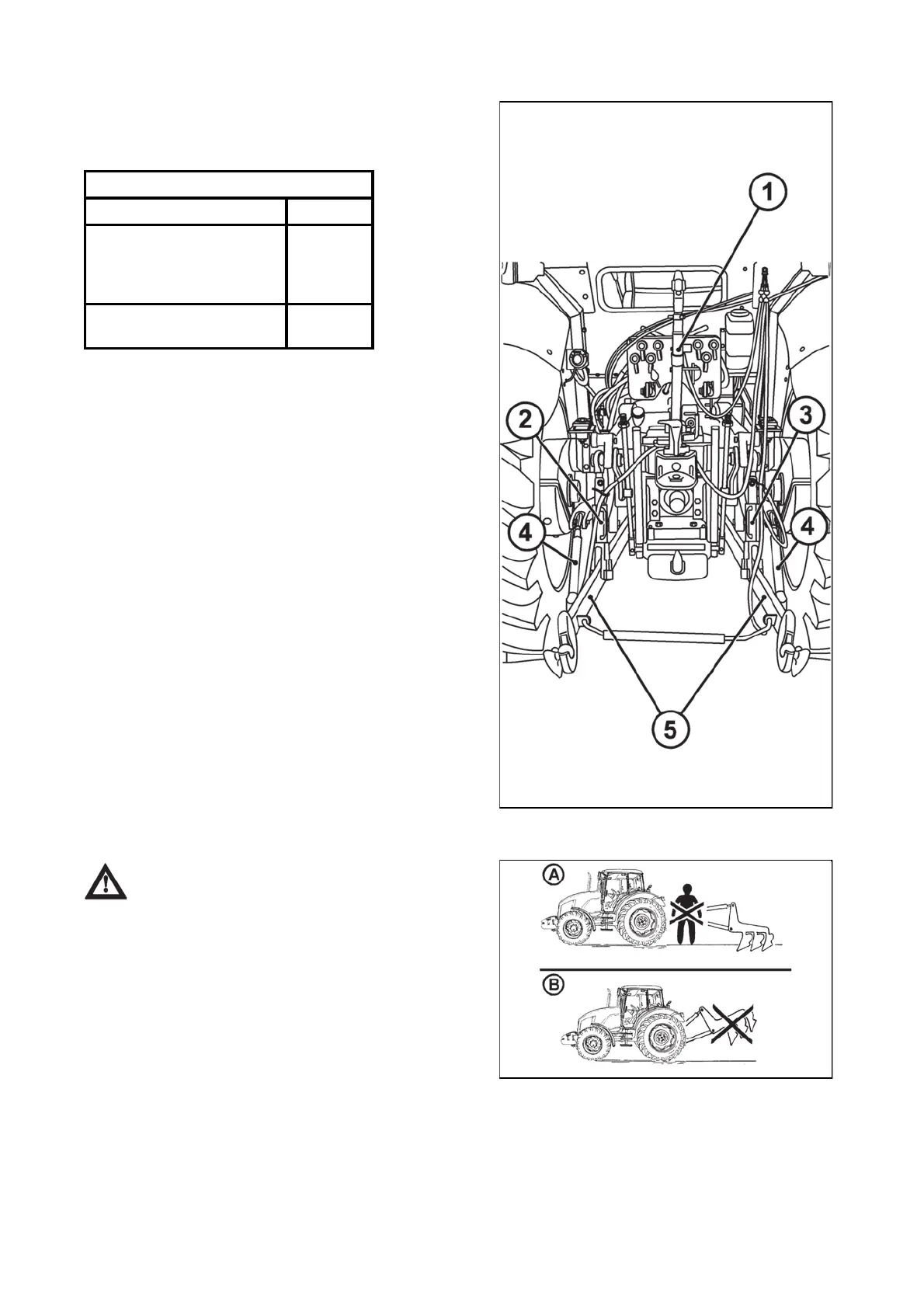

Rear three-point hitc
Safety principles of working with the three-point hitch
It is intended for attaching carried or semi-carried
agricultural machines and implements with hitching points
of ISO category III.
1. Upper draw-bar
2. Left lifting draw-bar
3. Right lifting draw-bar
4. Limiting draw-bars
5. Lower draw-bars
Category III.
Hitch axis length 1010 mm
Ø of openings of
connecting balls of the
lower draw-bars according
to ISO
37 mm
Ø of the upper draw-bar
opening
32 mm
E451
Persons that are not authorized to work with
the attached implement must not stand between the
tractor and the hitched machine (implement) - (A). Do
not park the tractor with an attached implement in the
lifted position (B). During a drive without an
implement the lower draw-bars (5) must be connected
with springs and the upper draw-bar (1) must be
inserted into the spring suspension! During transport
of implements the limiting draw-bars (4) of the lower
draw-bars must be adjusted in such a way to avoid
unwanted lateral movement of the implement!
F11N032
