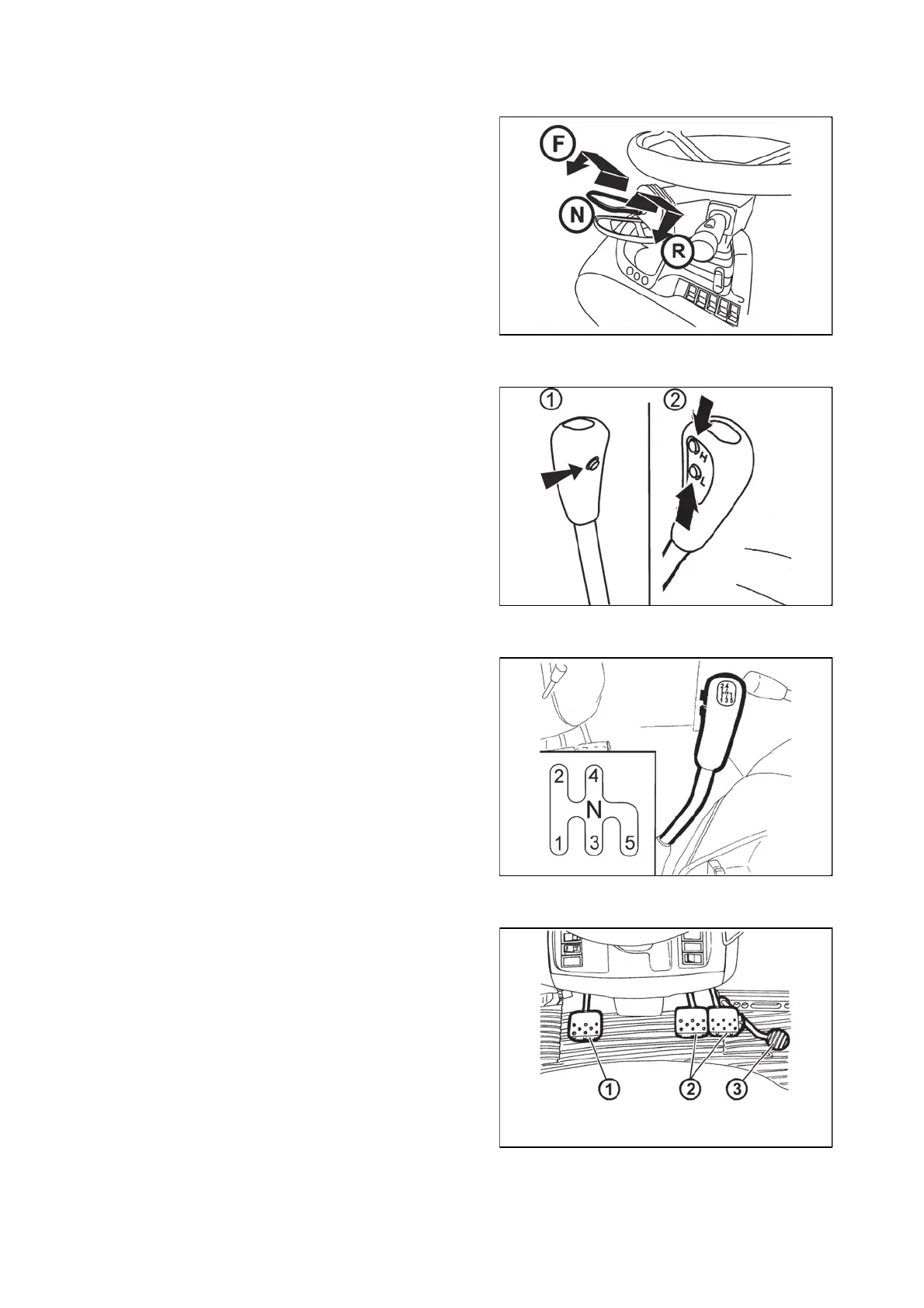

Reversing lever

Gear shifting lever

Gear shifting scheme

Pedals

F - front driving; lever in the fron

N - neutral

R - back driving; lever at the back

X212a

- main gear shifting lever

1. button for disengaging clutch on the head of gear

shifting

2. buttons of shifting individual gears of multiplier

FH12N037

Reversing speeds can be shifted only by means of

reversing lever. The scheme is placed on the head of gear

shifting lever.

FH12N038

1 - travel clutch pedal

2 - foot brake pedals joint by a catch

3 - throttle pedal

FHD14N083

ACQUAINTANCE WITH THE TRACTOR
