List of lamps

C15N123

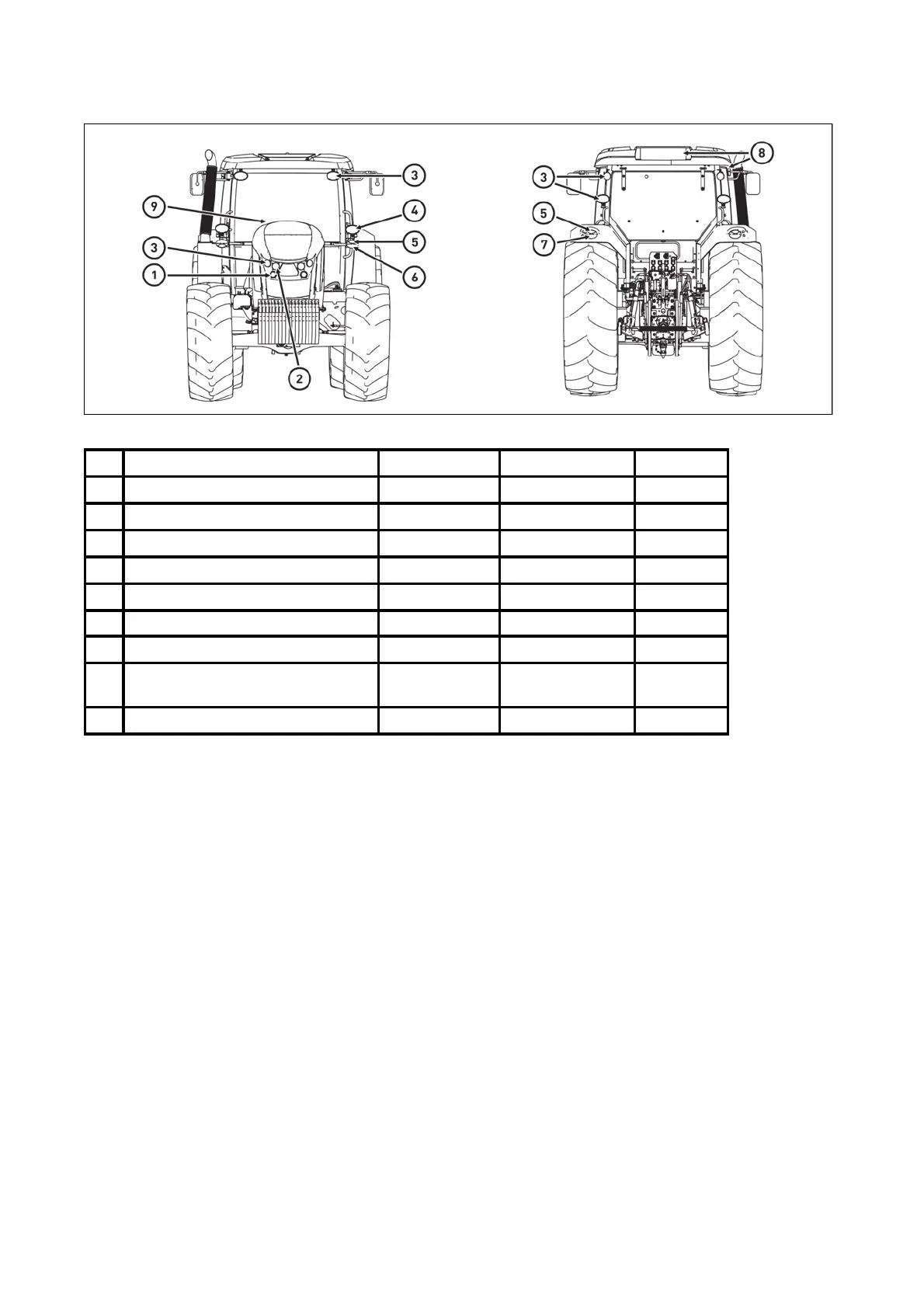

pos. Lamp location voltage power lamp type

1 Dimmed headlight 12V 60W HB3

2 Distance headllight 12V 60W HB3

3 Work headlight 12V 65W H9

4 Dimmed headlight 12V 55W H7

5 Direction light 12V 21W P21W

6 Position light 12V 5W R5W

7 Position / brake light 12V 21W/5W P21/5W

8 Lighting of number plate and

interior

12V 5W W5W

9 Lighting of switches 12V 1.2W 1.2W
