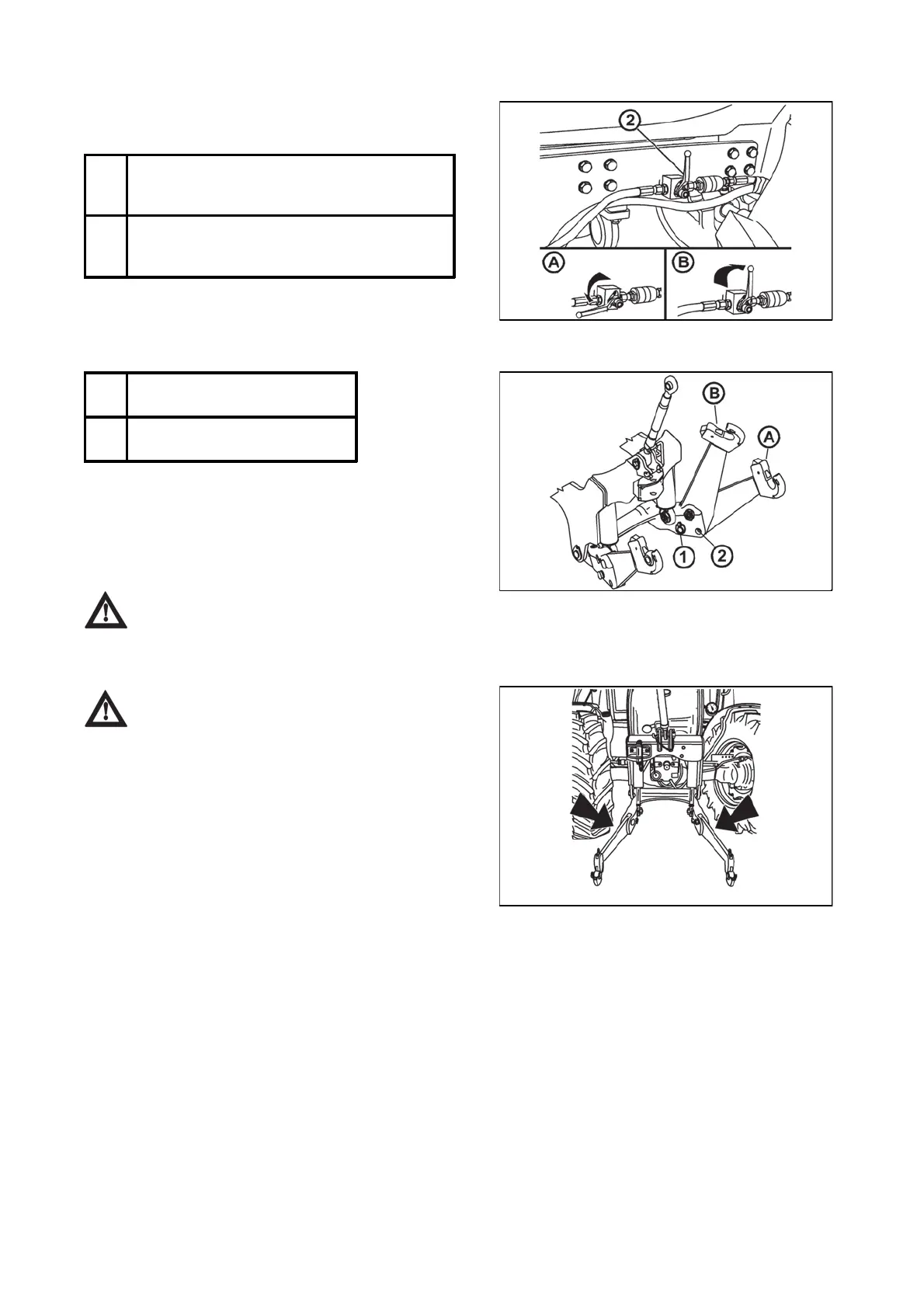

Hydraulic lock of the front three-point hitc
Working and transport position of the front three-point hitch
Driving with agricultural machines attached to the front three-point hitch
Hydraulic locking of the front three-point hitch is performed
in any position of the hydraulic cylinders with the ball valve
in the front part of the tractor (2).
A Free position
Valve levers are in the horizontal position
- The hitch can be controlled from the cabin
B Locked position
Valve levers are in the vertical position
- The hitch is locked
X464
Changing the position of the draw-bars of the front three-
point hitch:
1. Release and remove the pin (1) from the opening.
2. Lift the arm from position (A) to position (B).
3. Lock the arm by inserting the pin (2) in the opening (2)
and secure the pin.
Only insert the pin in the openings, never check
whether the o
enin
is free with
our fin
ers
A Working position of the front
three-point hitch
B Transport position of the front
three-point hitch
E466
The maximum permissible speed of the tractor
with agricultural machines attached to the front three-
oint hitch is 15 km.h
-1
. If no implement or weight is
attached to the front three-point hitch, we recommend
you to lift the lower lifting draw-bars to the transport
osition.
FH12N066
