Modular system of hitches for trailers and semi-trailers
Swinging draw-bar console module
Swinging draw-bar console with a fixed pin module

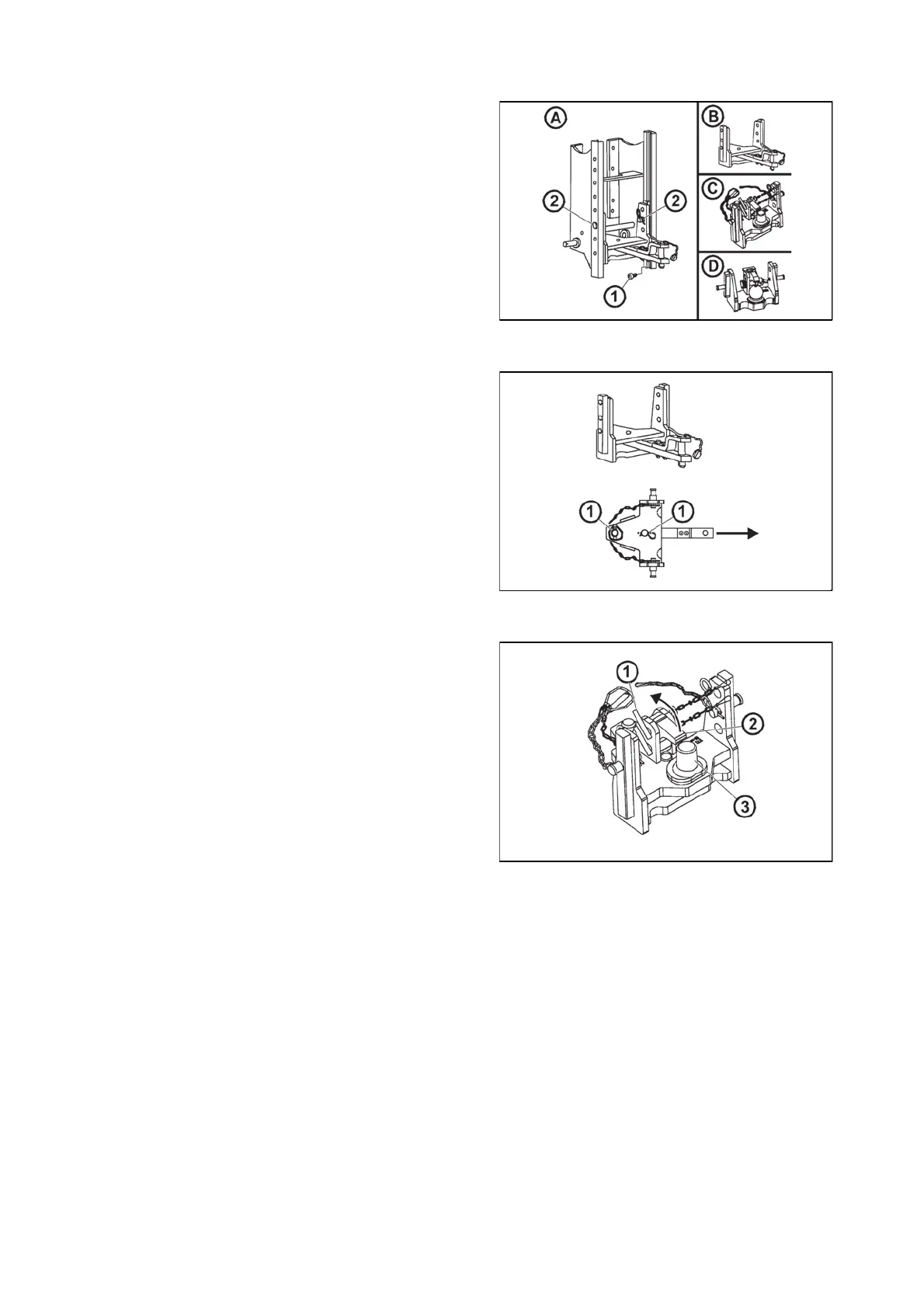

Module types:
Fig. (B) - Swinging draw-bar console
Fig. (C) - Swinging draw-bar console with a fixed pin
Fig. (D) - Console with a ø 80 ball
Disassembly, fig. (A):
1 - Remove the locking screw (1).
2 - Secure the module against sinking, release and
disassemble the pins (2).
3 - Slide the module out of the console downwards.
Do the assembly in the reverse order.
D204
The swinging draw-bar console module is located in the
stage hitch console.
Swinging draw-bar
Disassembly:
1 - Release and remove the pins (1).
2 - Slide the swinging draw-bar out in the arrow direction.
Do the assembly in the reverse order.
D205
Perform the assembly and disassembly of the swinging
draw-bar in accordance with the 'Swinging draw-bar'
chapter.
Connecting the shaft lug to the fixed pin (3):
1 - Release and remove the pin (1).
2 - Lift the locking wedge (2) in the arrow direction.
3 - Connect the shaft lug to the fixed pin (3):
4 - Return the locking wedge (2) to the original position
and secure it with the pin (1).
D206
