Zetor CRYSTAL Series - Lubrication and Greasing Points

To Next Page

To Previous Page

Plastic lubricant for the tracto

Use grease with PTFE additives for greasing suspension front drive axle.

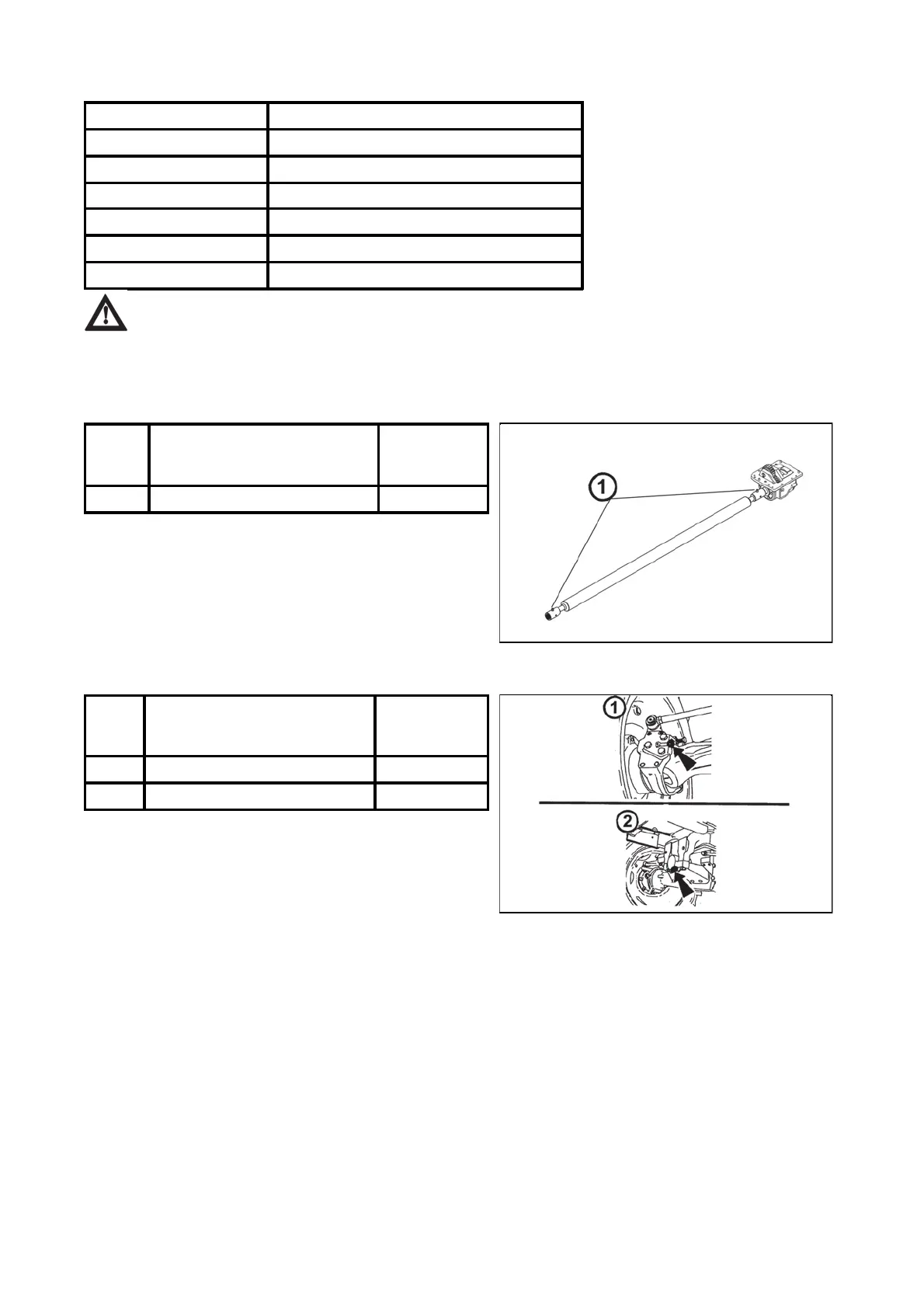

Tractor greasing scheme

Transmission shaft

Solid front drive axle

Type Classification

Shell retinax HD2 DIN 51825 KP 2 K-20

MOGUL LA 2 ISO 6743/9 CCEB 2/3, ISO - L - XBCEA 2

MOGUL LV 2M ISO 6743/9 CCEB 2/3

ÖMV signum DIN 51825-K 2 C-30

MOL Liton LT 2EP

ORLEN OIL Liten® Premium ŁT-4 EP2

Position Name Number of

greasing

points

1 Transmission shaft clutches 2

FHD14N089

Pos.

no.

Identification No. of

lubrication

points

1 Turning radius pins 4

2 Central pin 2

03F
