Zetor CRYSTAL Series User Manual

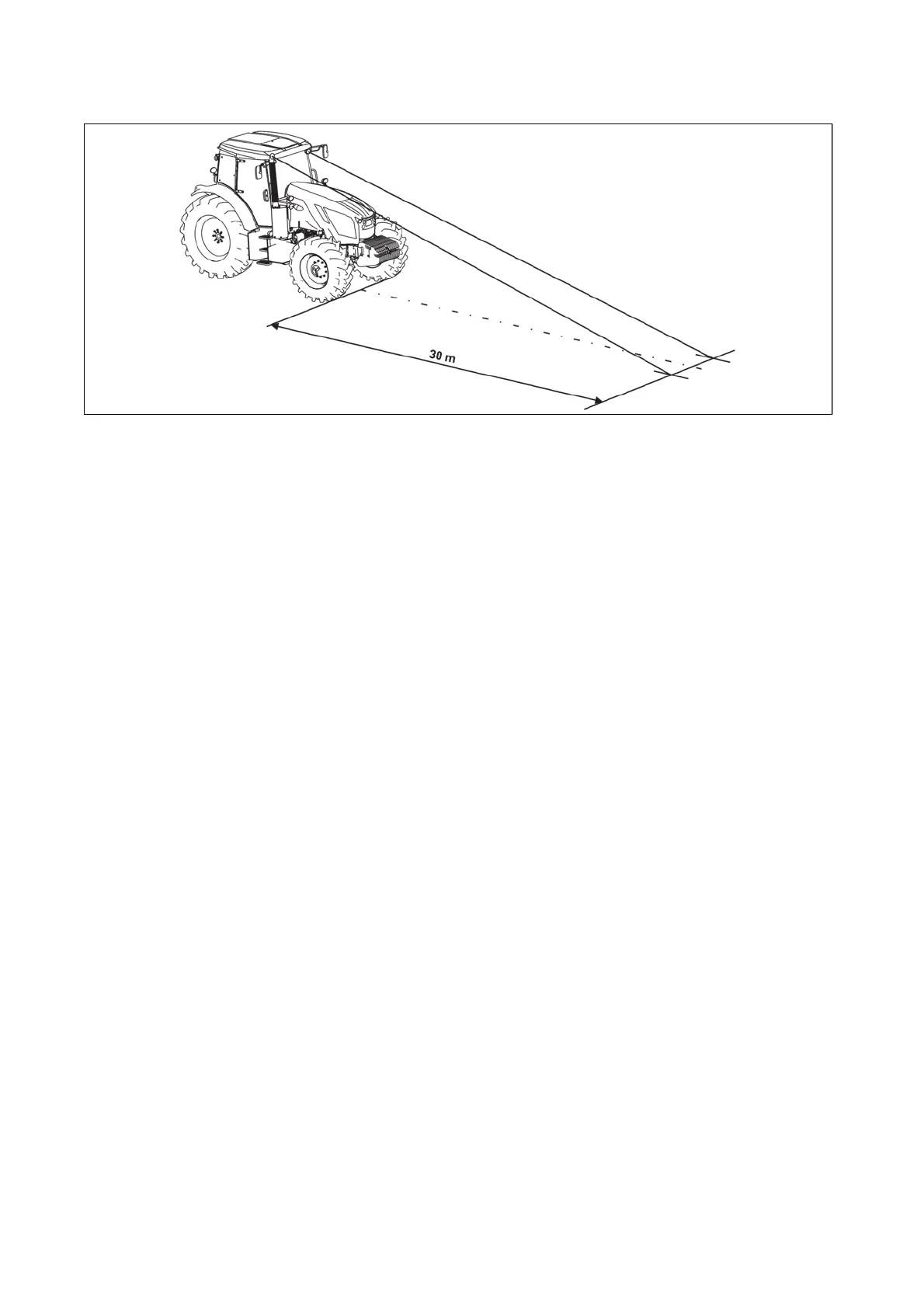

Checking the adjustment of the cab roof headlights
C15N136
In the vertical direction there must not be any point of illuminated area lying on the road surface plane to the
left from the longitudinal vertical plane passing through the headlight centre further than 30 m from the front
outline of the tractor.
In the horizontal direction the light beams must be parallel with the longitudinal axis of symmetry of the
tractor.
Check the adjustment of the headlights at the shipping weight of the tractor. The front roof headlights may
only be used when driving on public roads when the tractor carries a frontally attached machine or implement
covering the main headlights (in the tractor grill).
ELECTRIC INSTALLATION
137

Zetor CRYSTAL Series Specifications

General

Transmission	Mechanical or PowerShift
Aspiration	Turbocharged
Hydraulic System	Load Sensing (LS)
Cylinders	6
Hydraulic System Type	Load Sensing (LS)
PTO Speed	540/1000 rpm
Weight Approx	3, 800-5, 500 kg
