Signalling errors in the system of additional treatment of exhaust gases
C15N148

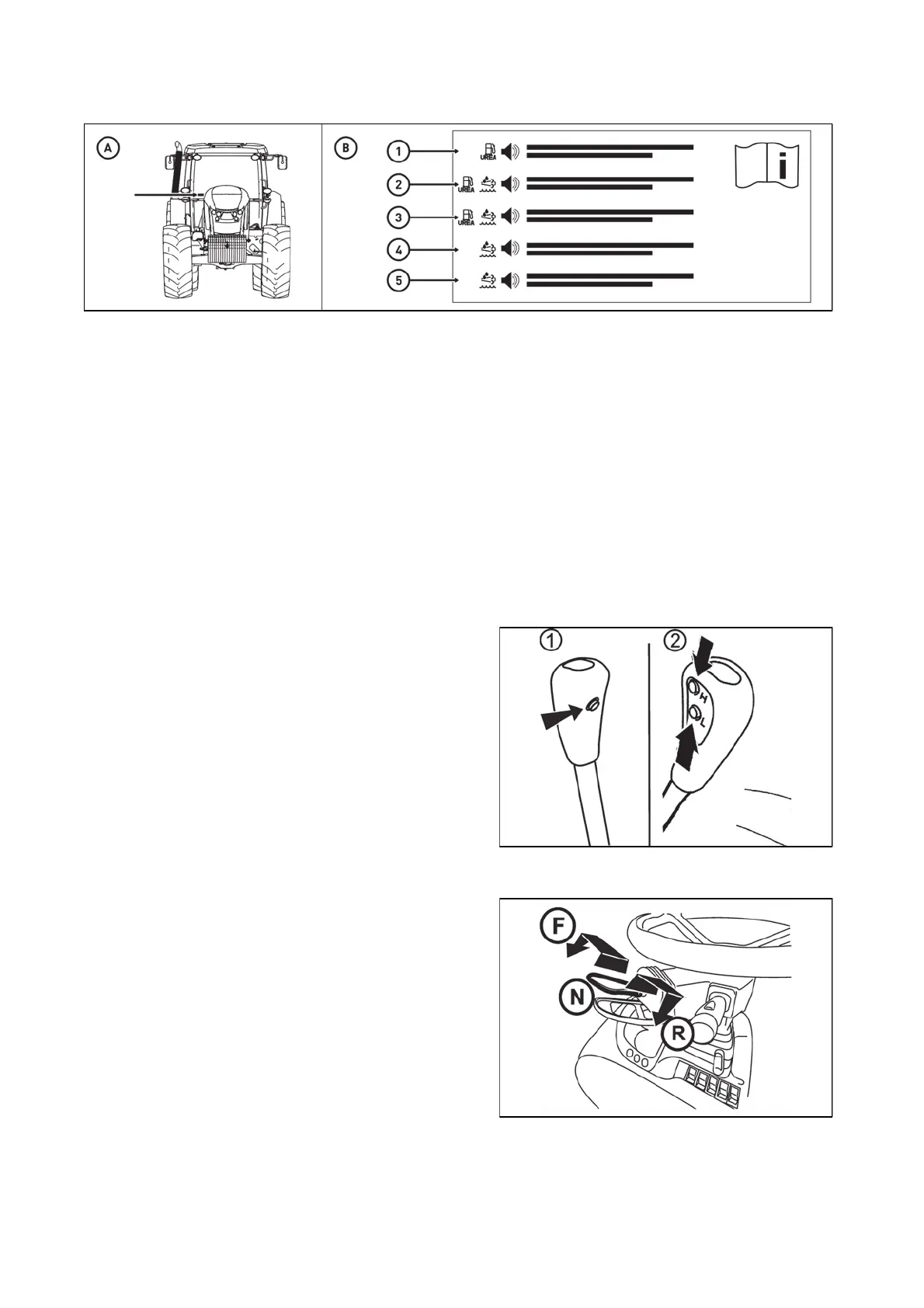

The label with a short description of indication of errors in the system of additional treatment of exhaust
gases and subsequent activities of operators is located in the right bottom corner of the windshield (A).
On the label (B) in the left part there is a combination of signal lamps glowing or flashing on the instrument
panel indicated using pictograms including their colours and the pictogram of the sounding acoustic warning
signal.In the right part of the label a required reaction of the tractor operator is described.
1. Add urea.
2. Add urea.The engine power will be limited.
3. Add urea.Engine revolutions will be minimised.
4. Increase the engine load or contact service.The engine power will be limited.
5. Contact service.The engine power will be limited and engine revolutions will be minimised.
Gear shifting
Reversing lever
The tractors are equipped with a five-gear synchronized
gearbox, three-gear torque multiplier, reversing and two-
gear reduction.
Five-gear gearbox is shifted by main shifting lever with
buttons for disengaging the travel clutch (1) and for
shifting the individual gears of multiplier (2).
FH12N037
The selection of the direction of travel drive is done by
reversing lever (forward, backward).
F - driving forward
N - neutral
R - driving backward
The lever also serves for starting the tractor without the
depressed clutch pedal.
X212a
DRIVING OPERATION
70
