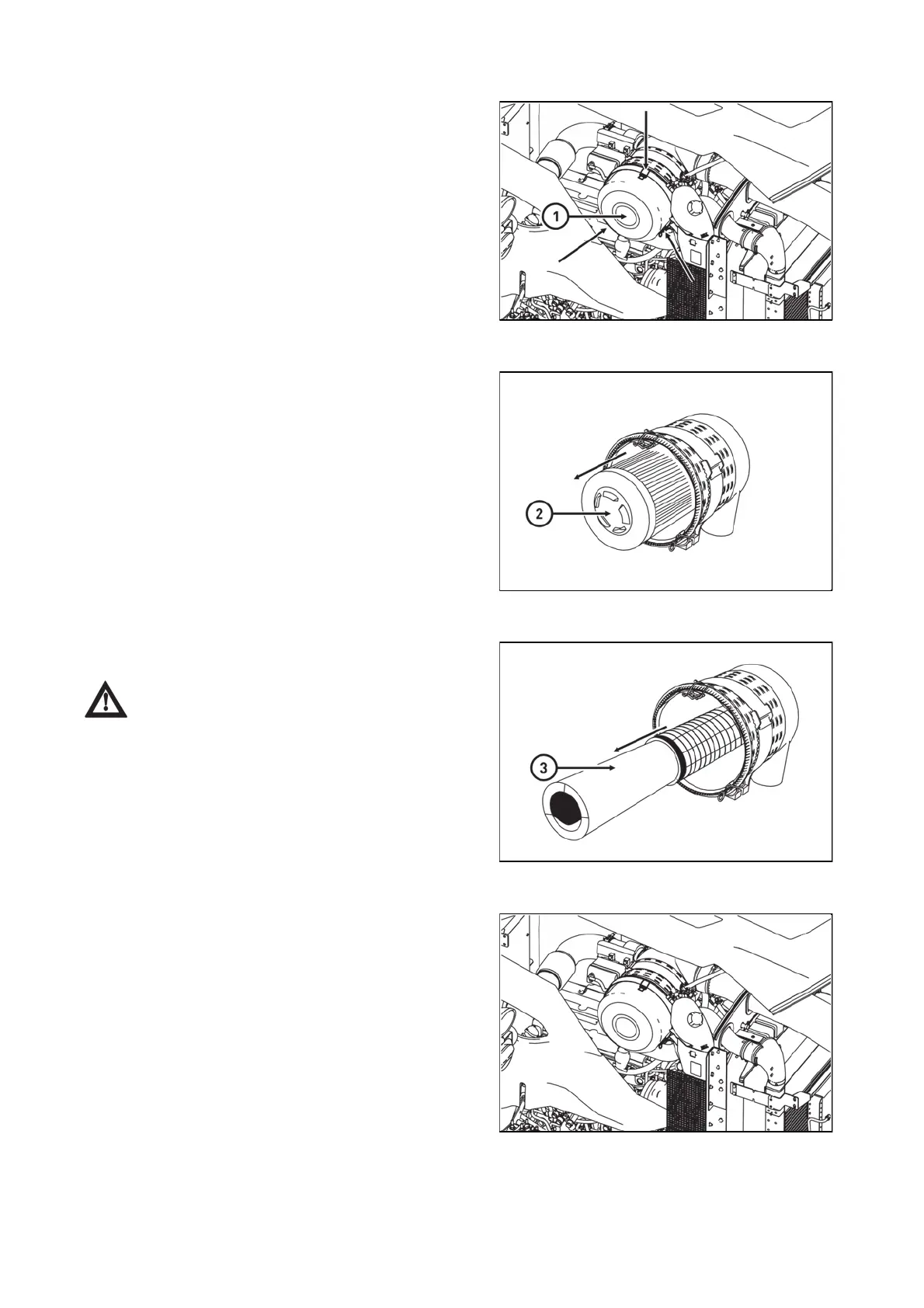

Dry air cleaner maintenance instructions
Recovery of the mainair cleaner element
Replacing the safety element of the air cleaner
Reassembly of the air cleaner elements
Perform maintenance of the air cleaner in the following
way:
1. Remove the right side plate of the hood
2. Release the clamps of the air cleaner lid (marked with
arrows)
3. Remove the air cleaner lid (1)
C15N086
Remove the main element of the dry cleaner (2) by
pulling.
If the main element is not damaged (there must not be an
y
dust on the inner side of the element), recover it by
blowing pressurized air from the inner side of the element.
This way you can recover the main element 3 times at the
most. The element must be replaced once a year.
NM14D015
Remove the safety element of the dry cleaner (3) by
pulling.
The safety element cannot be recovered. It
must always be replaced in these cases.
- If the main element is damaged.
- After covering 2000 hours of work
- At least once every two years.
NM14D016
Carry out a reverse procedure in order to mount air filter
cartridges back on.
While mounting the cartridges back on mind:
- The cleanness of contact surfaces
- That the cartridges must not lose their shape while being
mounted and they must not vibrate after their mounting
has been finished
- That after having closed the filter with the cover you mus
t
ensure a perfect tightness of the entire filter
C15N087
MAINTENANCE INSTRUCTIONS
152
