Zetor CRYSTAL Series - Lifting Draw-Bars Height Adjustment; Lower Hydraulic Draw-Bars Positions; Limiting Draw-Bars Adjustment

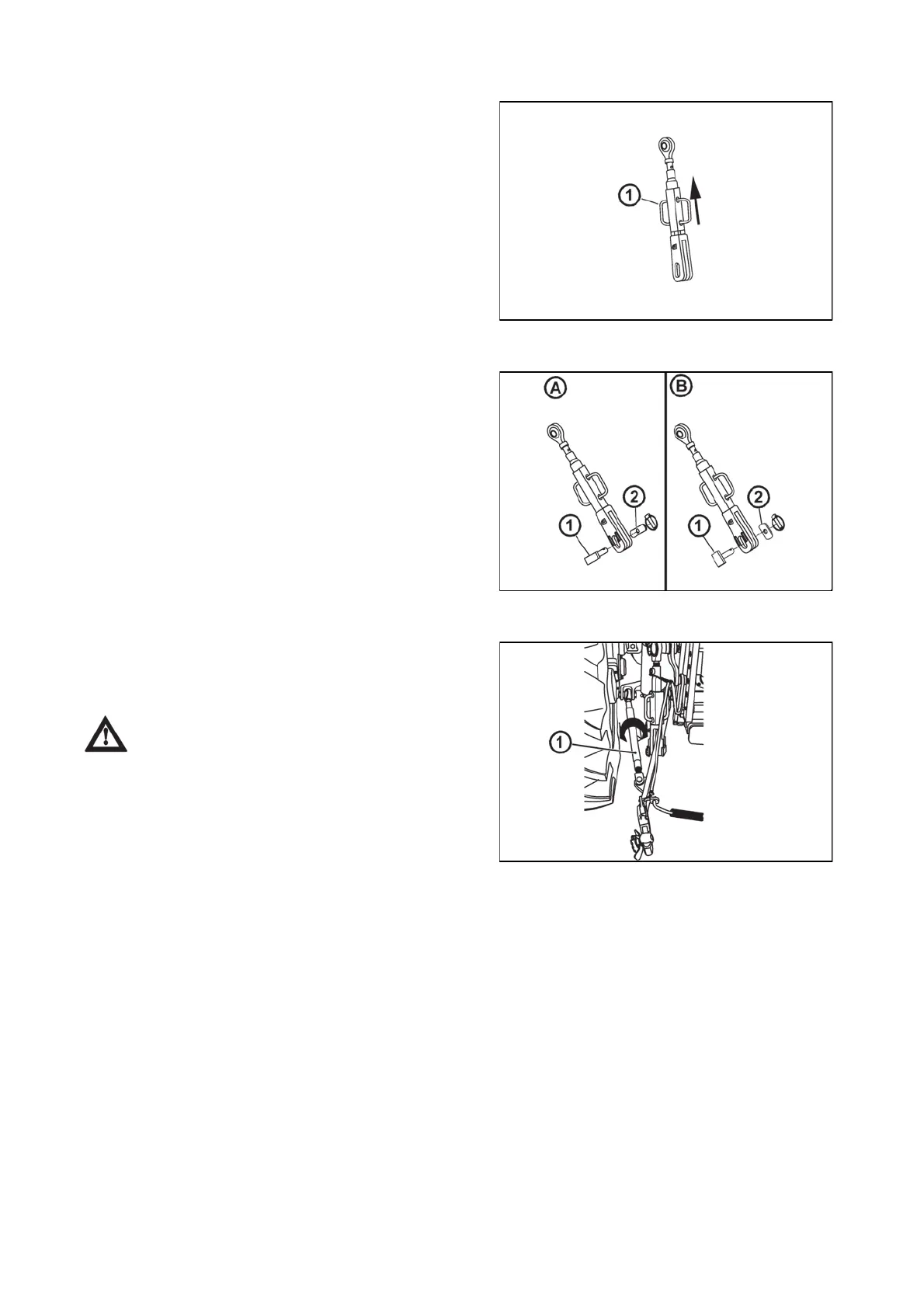

Height adjustment of the lifting draw-bars
Fixed and free position of the lower hydraulic draw-bars
Limiting draw-bars
Extend the capstan (1) in the arrow direction and make
the adjustment by turning the capstan.
FHD14N085
Fixed position of the lower hydraulic draw-bars (A):
The pin head (1) and washer (2) are installed horizontally.
Free position of the lower hydraulic draw-bars (B):
The pin head (1) and washer (2) are installed vertically.
The free position enables free connection of the tractor
and implement. In this case both the draw-bar ends may
move freely against each other as regards their height.
E454
The limiting draw-bars - stabilizers (1) limit or completely
prevent lateral swinging of the lower draw-bars. The
adjustment of the left and right limiting draw-bar is
performed by turning of the draw-bar pipe, see arrow.
Both the limiting draw-bars must always be
installed on the tractor.
E455
HITCHES
118
