Chapter 9 Monitoring CO2

9-4 www.zoll.com 9650-001355-01 Rev. M

Connecting the CO

Sampling Lines

To connect the FilterLine or Smart CapnoLine:

1. Slide open the X Series unit’s CO

inlet port cover.

2. Put the fitting at the end of the sidestream tubing over the CO

inlet port connector.

3. Turn the fitting clockwise to tighten.

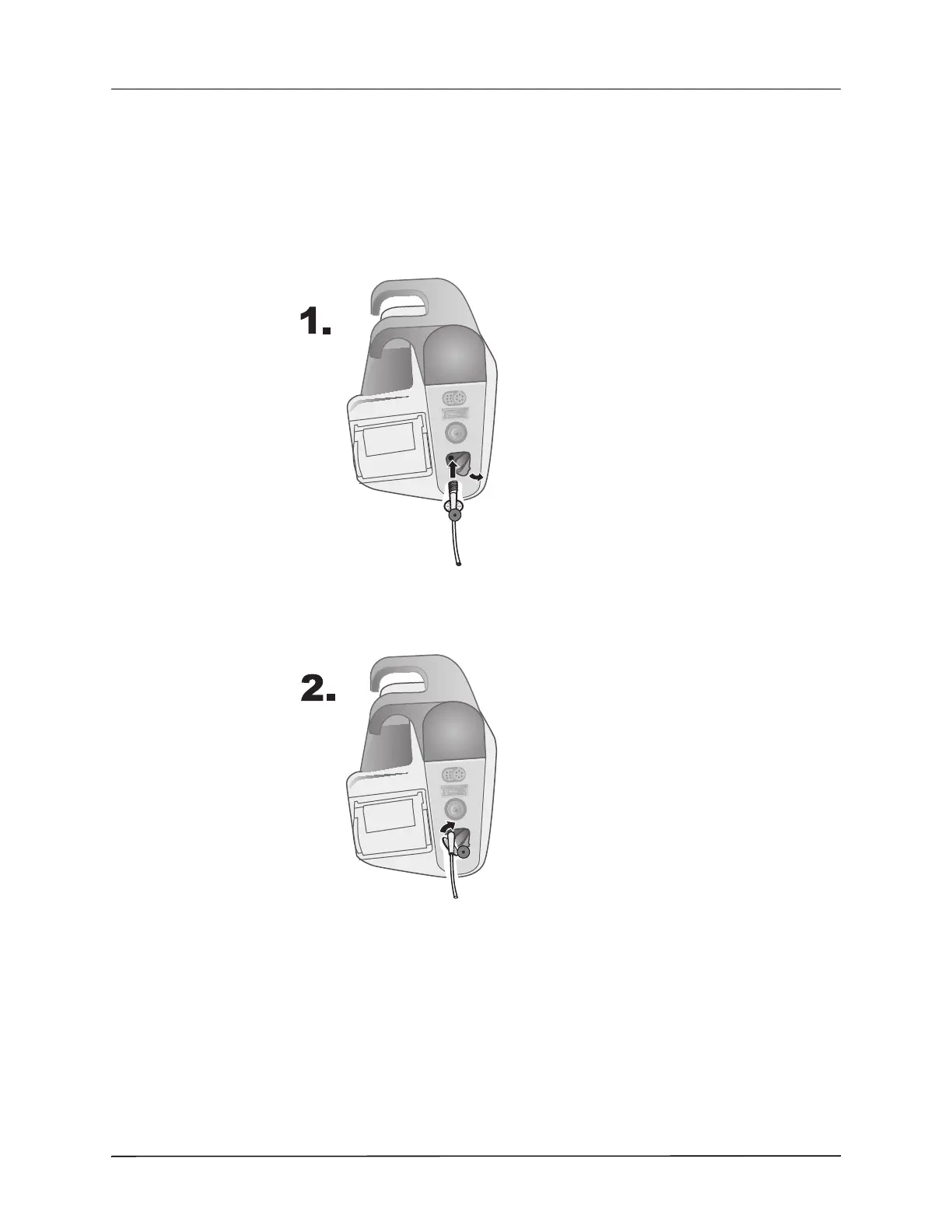

Figure 9-1 Connecting the Sampling Line Connector to the CO

Inlet Port
