Chapter 6 Monitoring ECG
6-8 www.zoll.com 9650-001355-01 Rev. M
Selecting the Waveform Trace Size
The X Series unit allows you to select the waveform trace size to adjust the size of displayed
the ECG waveform.

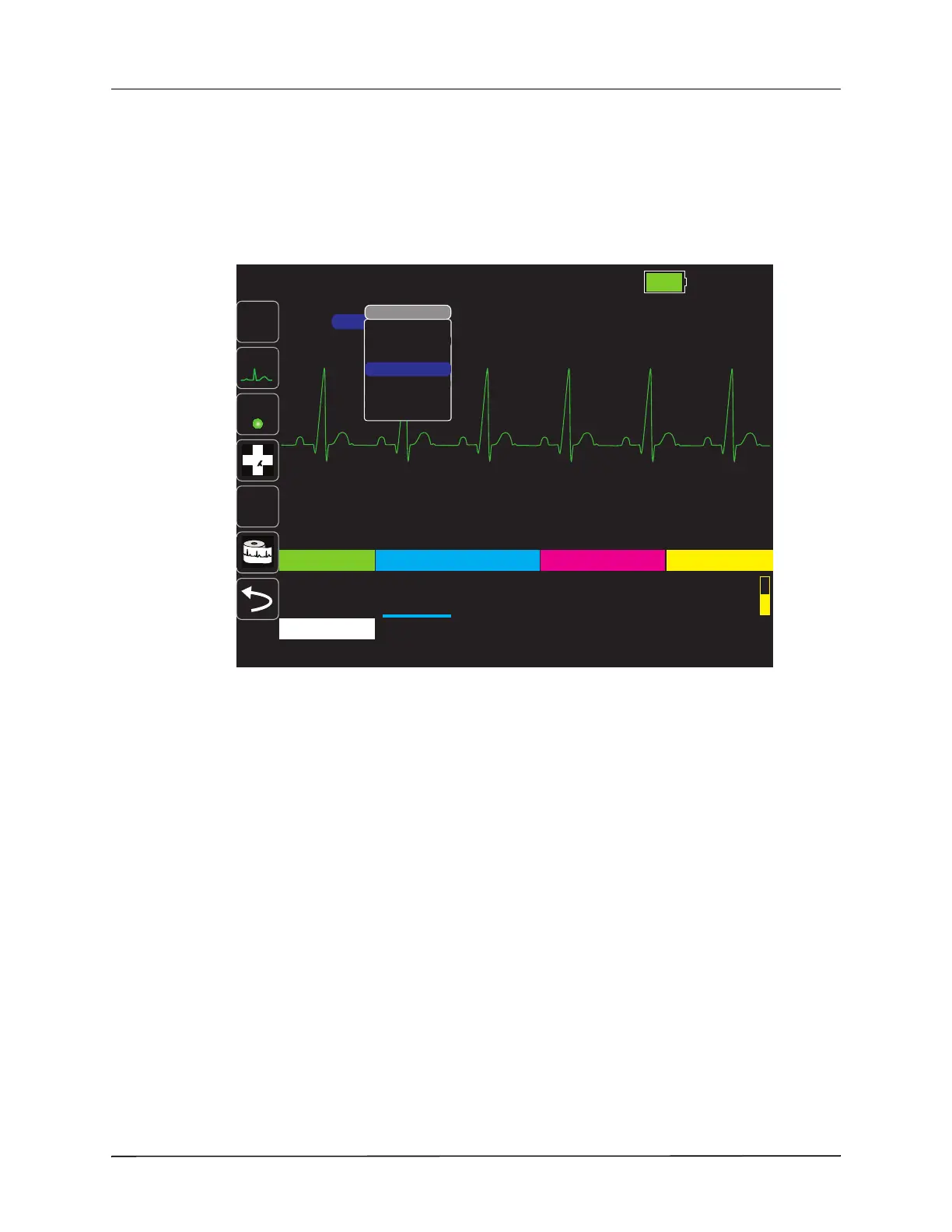

To select the waveform size, use the navigation keys to highlight and select the trace size that
appears to the right of the electrode label:
The default trace size is
1cm/mV. You can select a larger (2.0, 4.0 cm/mV) or smaller
(
0.125, 0.25, 0.50 cm/mV) trace size. You can also specify that the X Series unit select a best-fit
trace size (
AUTO).
