Chapter 4 Trends
4-2 www.zoll.com 9650-001355-01 Rev. M
Displaying the Trends Status Window
The X Series unit displays the logged trend information in the Trends status window. Press the
Display/Home button ( ) to display the Trends window, the primary ECG trace, and the
small numeric displays for each monitoring function:

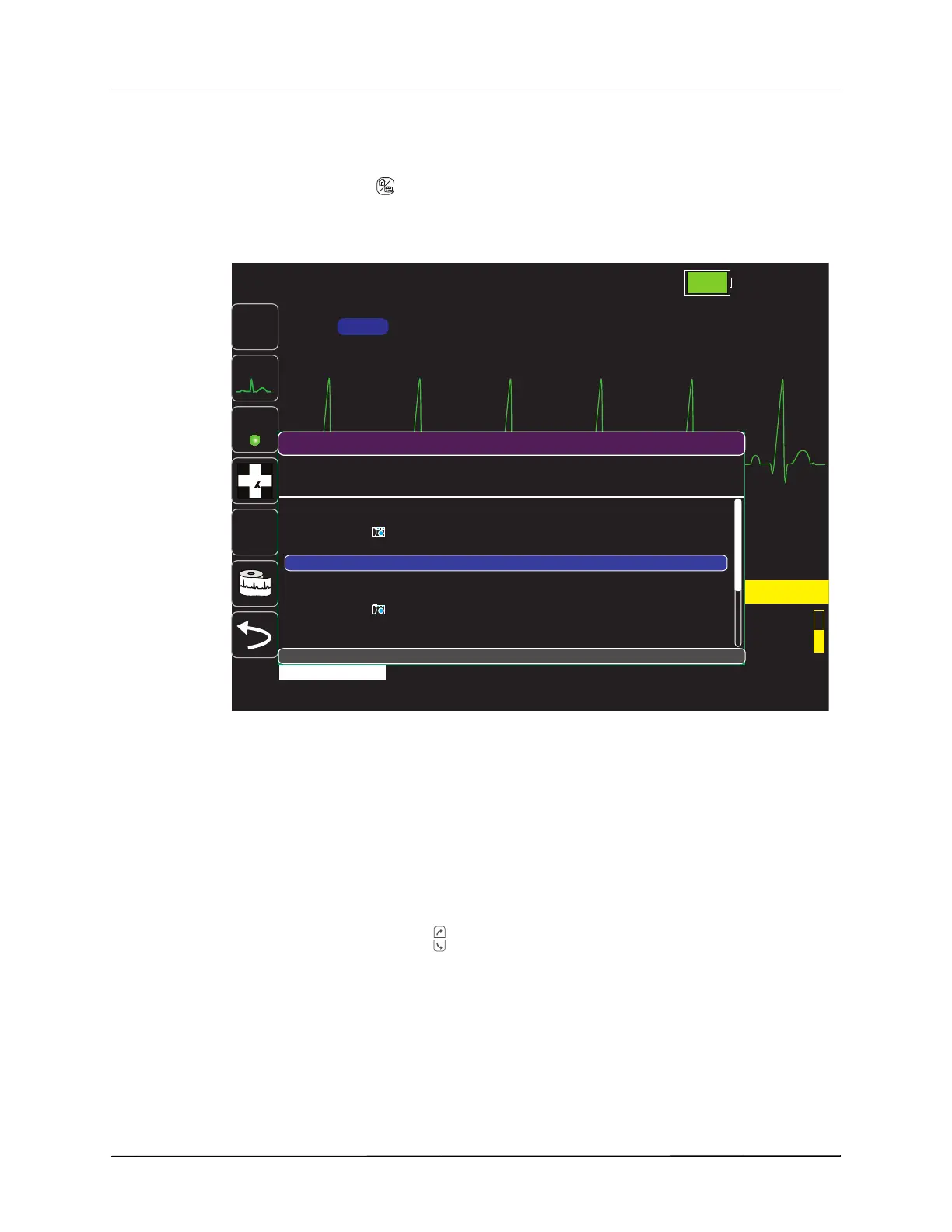

Figure 4-1 Trends Status window
The Trends status window displays the logged trend information and the time at which the trend
measurements were logged. While trend measurements are logged to memory at a 30-second
interval, the Trends status window can display the logged information at an interval that you
specify, with the exception of NIBP measurements, which are logged and reported at the times
they are taken. The Trends status window reports the trends information at 5-minute intervals.
To navigate in the Trends status window:
1. Use the navigation keys to highlight the
Navigate Here to Scroll Through Trends bar, then
press Select.
2. Press the Up/Down buttons ( ) to scroll through the trend information.
Navigate Here to Scroll Through Trends
06/06/2011 12:34:56
Adult
00:17:43
I, II,
III...
12
CO
2
R
79
12
98.6
NIBP Trends
Time HR/PR
bpm
NIBP
mmHg
SpO2
%
RR/BR
br/min
12:20:21 81
122/60 (85) 1597
12:15:21 73
124/63 (86) 1397
Navigate Here to Scroll Through Trends
12:30:21 72
122/60 (85) 1297
12:25:21
