Chapter 14 12-Lead ECG Interpretive Analysis
14-12 www.zoll.com 9650-001355-01 Rev. M
Printing 12-Lead Waveform Traces
Once you have determined that the X Series unit is correctly setup for 12-Lead ECG
monitoring, you can print the 12-Lead ECG traces for review and analysis.
Press to collect 10 seconds of 12-Lead data for print.

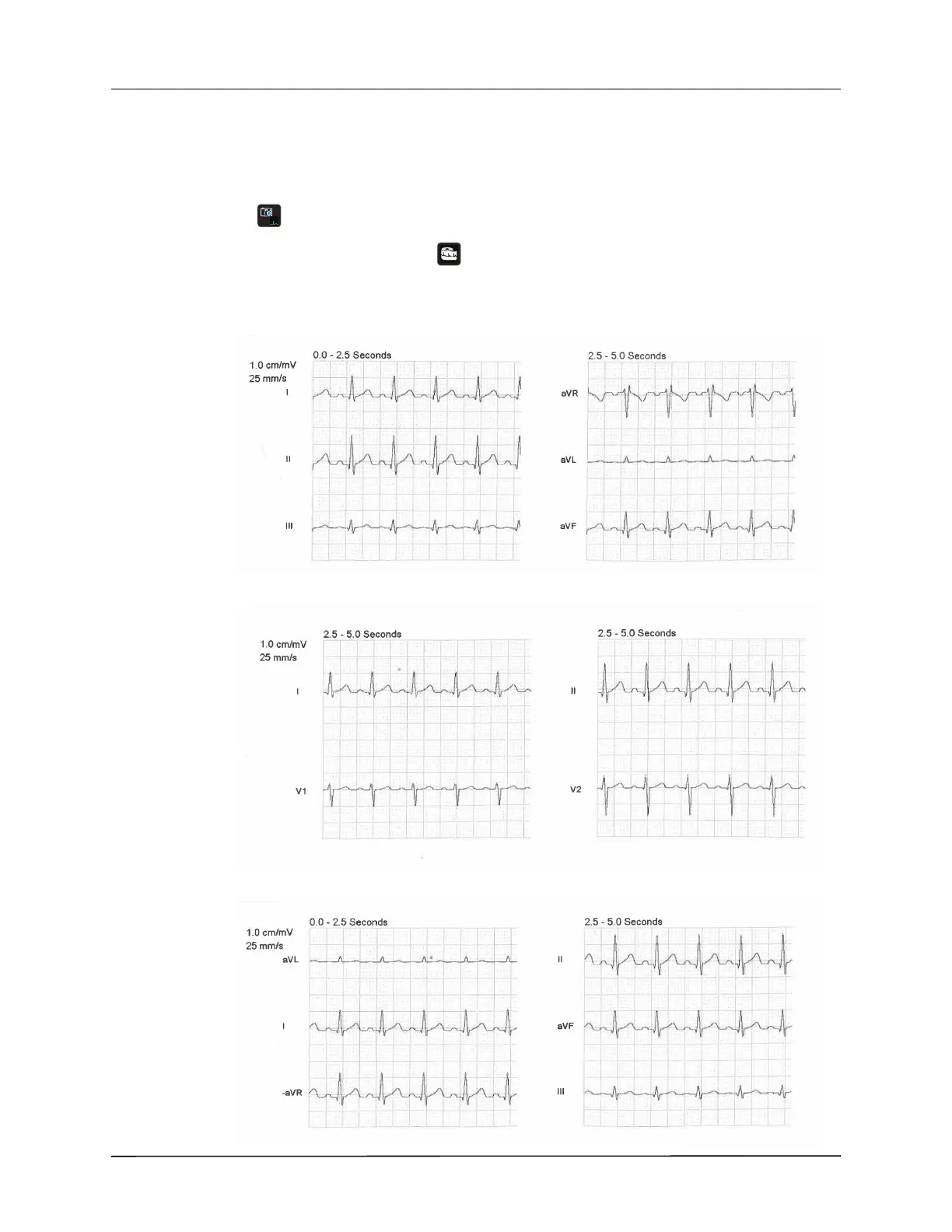

Press the Print quick access key ( ) to print a 12-lead snapshot, which begins with a header
that gives the date, time, and patient information, followed by 2.5 second samples of all twelve
waveform traces. The waveform traces print in either:
3 x 4 format (the default):
or a 2 x 6 format:
or a 3 x 4 Cabrera format:
12

ZOLL X Series Specifications

General

Type	Defibrillator/Monitor
Display	Color LCD
ECG Monitoring	Yes
Pacing	Yes
SpO2 Monitoring	Yes
NIBP Monitoring	Yes
Defibrillator Type	Biphasic
EtCO2 Monitoring	Optional
Data Storage	Yes
Battery	Rechargeable Lithium-ion
CPR Feedback	Real CPR Help
Energy Selection	1-360 J
Pacing Rate	30 – 180 ppm
Pacing Output	0 – 140 mA
Display Size	6.5 inches
Invasive Pressure Monitoring	Optional
Temperature Monitoring	Optional
Wireless Connectivity	Wi-Fi, Bluetooth
